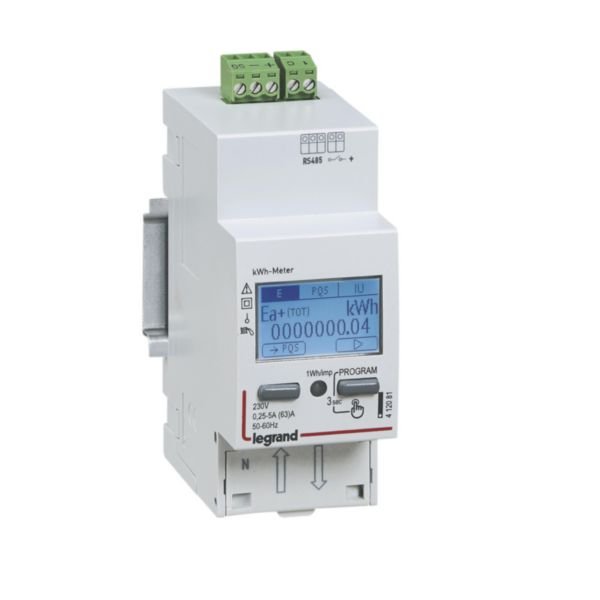

EMDX3 Energy Meter Mono Direct | 63A Capacity | RS485 Interface | Two Tariff Measurement | @EA of 1 | by Legrand
The EMDX3 energy meter mono direct is designed for efficient energy monitoring, featuring a 63A capacity and RS485 communication interface. Ideal for residential, commercial, and industrial applications, it offers two-tariff measurement and a backlit digital display for easy reading. With IP54 protection and user code settings, this meter ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EMDX3 Energy Meter Mono Direct | 63A Capacity | RS485 Interface | Two Tariff Measurement | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412081
Alternatively Known As: Single Phase Energy Meter 63A, RS485 Energy Meter, Two Tariff Energy Meter, Direct Connect Energy Meter
Technical Specifications
- Type: Electronic single phase direct measurement
- Nominal current: 10A
- Maximum current: 63A
- Nominal voltage: 197-265 V (N-L)
- Frequency range: 47-63 Hz
- Accuracy class: B
- Energy types measured: Effective power and reactive power
- Tariff type: Two-tariff with external control
- Display: Digital backlit
- Interface: RS-485
- Degree of protection: IP54
- Operating temperature: -25 to 55 °C
- Storage temperature: -25 to 70 °C
- Connection type: Screwed terminal, 1-16 mm² capacity
- Mounting: DIN-rail adaptor (DRA)
- Width: 2 modular spacings (35.8 mm)
- Pulse output: None
- Lock code protection: Yes
- Dimensions (H x L x W): 92mm x 66mm x 36mm
- Weight: 0.2 kg
Key Features
- Direct connection up to 63A single phase without current transformer
- Modbus RS485 communication interface
- Two-tariff or pulse input for additional meter data collection (gas, water, electrical)
- Bidirectional measurement of production and consumption energies
- Backlit digital display with easy data reading
- User code protected settings mode
- Compact size suitable for DIN-rail mounting
- IP54 degree of protection
- Halogen free construction
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Residential energy monitoring
- Commercial power measurement
- Industrial single-phase energy metering
- Energy consumption and production monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables accurate energy consumption monitoring to optimize energy use and reduce waste
- Supports bidirectional measurement facilitating renewable energy production tracking
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand EMDX3 energy meter is available for immediate purchase, ideal for residential, commercial, and industrial energy monitoring applications.
