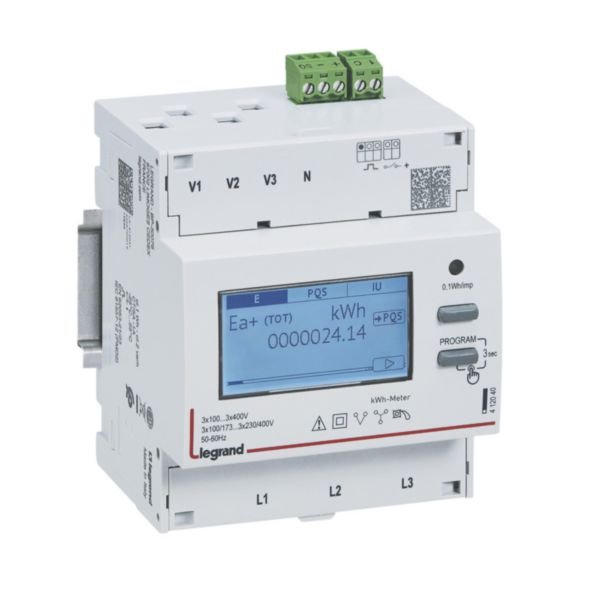

EMDX3 Energy Meter Tri 5A 230/400V | MID Certified | Pulse Output | IP54 Rated | @EA of 1 | by Legrand
The EMDX3 Energy Meter Tri 5A 230/400V is designed for precise energy measurement in industrial and commercial settings. With MID certification, pulse output communication, and a backlit digital display, it ensures accurate monitoring of both consumption and production energies. Ideal for switchboards and power cabinets, this meter supports bidirectional measurement and features a robust IP54 rating for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EMDX3 Energy Meter Tri 5A 230/400V | MID Certified | Pulse Output | IP54 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412042
Alternatively Known As: Three Phase Energy Meter, MID Certified Energy Meter, Pulse Output Energy Meter, Legrand EMDX3 Meter
Technical Specifications
- Type of meter: Electronic
- Nominal current (In): 5 A
- Max current (Imax): 6 A
- Nominal voltage (N-L): 90-265 V
- Nominal voltage (L-L): 156-460 V
- Frequency: 49-61 Hz
- Accuracy class: B
- Pole type: Three conductor/four conductor
- Energy type: Effective power and reactive power
- Tariff type: Two-tariff
- Tariff control: External
- Pulse output: Optical S0 type
- Pulse rate: 0.001-10 Imp/kWh (kvarh)
- Type of indication: Digital
- Mounting method: DIN-rail adaptor
- Width: 71.2 mm
- Depth: 66 mm
- Height: 92.4 mm
- Degree of protection: IP54
- Operating temperature: -25 to 55 °C
- Storage temperature: -25 to 70 °C
- Connection type: Screwed terminal
- Terminals capacity: 1-16 mm²
- Halogen free: Yes
- Dimensions (H x L x W): 92mm x 66mm x 71mm
- Weight: 0.3 kg
Key Features
- Connection with CT up to 5A
- Pulse output communication
- Pulse input to collect data from other meters (gas, water, electrical)
- MID Certified for accuracy and compliance
- Bidirectional measurement of production and consumption energies
- Backlit digital display with easy data reading
- Settings mode protected by user code
- Phaseshift measurement locally displayed
- Two-tariff measurement with external tariff control
- DIN-rail mounting with IP54 protection rating
- Halogen free construction
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Industrial and commercial electrical energy measurement
- Three-phase power monitoring in switchboards and power cabinets
- Energy consumption and production measurement for billing and management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables accurate energy monitoring to optimize consumption and reduce waste
- Supports bidirectional measurement facilitating renewable energy integration
- Halogen free materials reduce environmental impact
Warranty Information
Standard manufacturer warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand EMDX3 Energy Meter Tri 5A 230/400V PULSE MID is available for immediate purchase, ideal for industrial and commercial energy monitoring applications.
