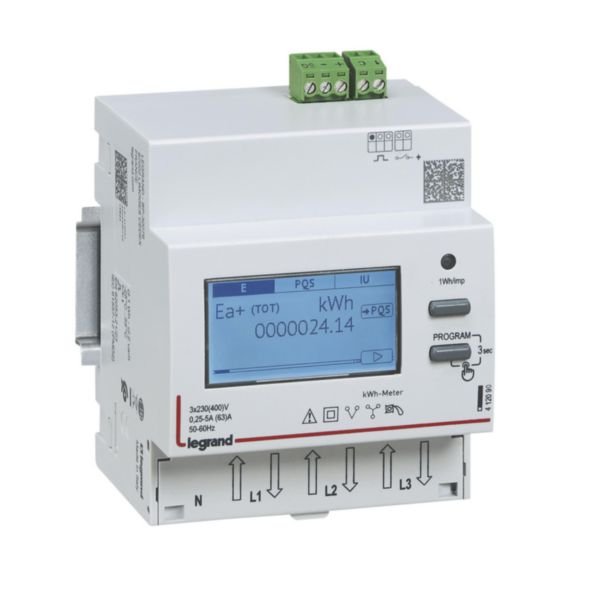

EMDX3 Energy Meter Tri Direct 63A | MID Certified | Pulse Output | IP54 Rated | @EA of 1 | by Legrand
The EMDX3 Energy Meter Tri Direct 63A is designed for precise energy monitoring in industrial and commercial settings. With MID certification, it ensures compliance and accuracy, while the pulse output feature allows for seamless data collection from other meters. Its IP54 rating provides protection against dust and water, making it ideal for various applications, including integration with building management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EMDX3 Energy Meter Tri Direct 63A | MID Certified | Pulse Output | IP54 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412092
Alternatively Known As: Three Phase Energy Meter, MID Certified Energy Meter, Legrand EMDX3 Meter, Pulse Output Energy Meter
Technical Specifications
- Type of meter: Electronic
- Nominal current (In): 5 A
- Maximum current (Imax): 63 A
- Nominal voltage (N-L): 197-265 V
- Nominal voltage (L-L): 340-460 V
- Frequency range: 49-61 Hz
- Accuracy class: B
- Pole type: Three conductor/four conductor
- Energy type: Effective power and reactive power
- Tariff type: Two-tariff
- Pulse output: Optical S0 type
- Pulse rate: 0.001-10 Imp/kWh (kvarh)
- Type of indication: Digital backlit display
- Mounting method: DIN-rail adaptor (DRA)
- Degree of protection: IP54
- Operating temperature: -25 to 55 °C
- Storage temperature: -25 to 70 °C
- Connection type: Screwed terminal, capacity 1-16 mm²
- With lock code for settings protection
- Halogen free
- Dimensions (H x L x W): 92mm x 66mm x 71mm
- Weight: 0.3 kg
Key Features
- Direct connection up to 63A for 3-phase or 3-phase + neutral
- Pulse output communication for data collection
- Pulse input to collect data from other meters (gas, water, electrical)
- MID certified for accuracy and compliance
- Bidirectional measurement of production and consumption energies
- Backlit digital display with easy data reading
- User code protected settings mode
- Phaseshift measurement displayed locally
- Compact size with 4 modular width for DIN-rail mounting
- IP54 degree of protection for dust and water resistance
- Halogen free materials
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Industrial and commercial electrical installations
- Energy monitoring in three-phase power systems
- Measurement of electrical consumption and production
- Integration with building management systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables accurate energy monitoring to optimize consumption and reduce waste
- Supports bidirectional measurement facilitating renewable energy integration
- Compact and halogen-free design reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand EMDX3 Energy Meter Tri Direct 63A 230/400V Pulse MID is available for immediate purchase, ideal for industrial and commercial energy monitoring applications.
