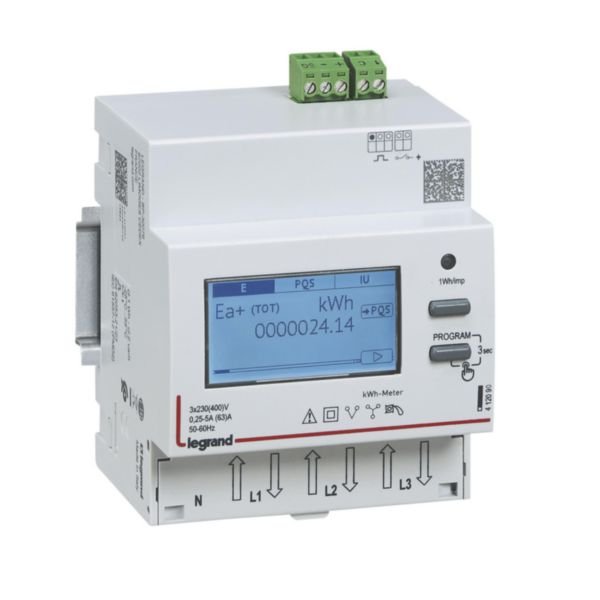

EMDX3 Energy Meter Tri Direct 63A | Pulse Output | IP54 Rated | @Each of 1 | by Legrand
The EMDX3 Energy Meter Tri Direct 63A is designed for precise energy monitoring in residential, commercial, and industrial applications. With a pulse output for data collection and a robust IP54 rating, it ensures reliable performance in various environments. Ideal for qualified electricians, this meter supports bidirectional measurement, making it perfect for tracking both energy consumption and production.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EMDX3 Energy Meter Tri Direct 63A | Pulse Output | IP54 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 412090
Alternatively Known As: Three Phase Energy Meter, Direct Connection Energy Meter, Pulse Output Energy Meter, Legrand EMDX3 Meter
Technical Specifications
- Type of meter: Electronic
- Nominal current (In): 5 A
- Max current (Imax): 63 A
- Nominal voltage (N-L): 197-265 V
- Nominal voltage (L-L): 340-460 V
- Frequency: 47-63 Hz
- Accuracy class: B
- Pole type: Three conductor/four conductor
- Energy type: Effective power and reactive power
- Tariff type: Two-tariff
- Pulse output: Optical S0 type
- Pulse rate: 0.001-10 Imp/kWh (kvarh)
- Mounting method: DIN-rail adaptor
- Width: 4 modular spacings
- Degree of protection: IP54
- Operating temperature: -25 to 55 °C
- Storage temperature: -25 to 70 °C
- Connection type: Screwed terminal
- Terminals capacity: 1-16 mm²
- Colour: Grey (RAL 7035)
- Halogen free: Yes
- Dimensions (H x L x W): 92mm x 66mm x 71mm
- Weight: 0.3 kg
Key Features
- Direct connection up to 63A for 3-phase or 3-phase + neutral
- Pulse output communication for data collection
- Pulse input to collect data from other meters (gas, water, electrical)
- Bidirectional measurement of production and consumption energies
- Backlit digital display with easy data reading
- Settings mode protected by user code
- Phaseshift measurement displayed locally
- Compact size with 4 modular width
- IP54 degree of protection
- Halogen free construction
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Residential: Energy monitoring in homes
- Commercial: Power measurement in offices and retail spaces
- Industrial: Energy management in factories and plants
- Utility: Monitoring electrical consumption and production
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy monitoring to reduce consumption and waste
- Supports bidirectional measurement for renewable energy production tracking
- Compact and halogen-free design reduces environmental impact
Warranty Information
Standard manufacturer warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand EMDX3 Energy Meter Tri Direct 63A 230/400V Pulse is available for immediate purchase, ideal for residential, commercial, and industrial energy monitoring applications.
