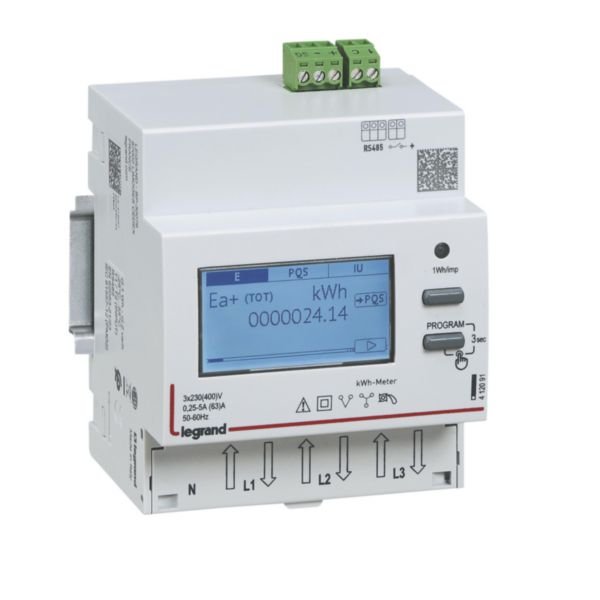

EMDX3 Energy Meter Tri Direct 63A | RS485 Interface | Two Tariff Measurement | IP54 Rated | @EA of 1 | by Legrand
The EMDX3 Energy Meter Tri Direct 63A is designed for precise energy monitoring in industrial and commercial settings. With a robust RS485 communication interface and two-tariff capability, it allows for effective management of energy consumption and production. Its IP54 rating ensures durability, making it ideal for switchboards and energy management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EMDX3 Energy Meter Tri Direct 63A | RS485 Interface | Two Tariff Measurement | IP54 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412091
Alternatively Known As: Three Phase Energy Meter, Direct Connection Energy Meter, RS485 Energy Meter, Two Tariff Energy Meter
Technical Specifications
- Type: Electronic three-phase direct measurement meter
- Nominal current: 5 A
- Maximum current: 63 A
- Nominal voltage N-L: 197-265 V
- Nominal voltage L-L: 340-460 V
- Frequency range: 47-63 Hz
- Accuracy class: B
- Pole type: Three conductor/four conductor
- Energy type: Effective and reactive power
- Tariff type: Two-tariff with external control
- Display: Digital backlit
- Mounting: DIN-rail adaptor (DRA)
- Interface: RS-485
- Degree of protection: IP54
- Operating temperature: -25 to 55 °C
- Storage temperature: -25 to 70 °C
- Connection type: Screwed terminal
- Terminal capacity: 1-16 mm²
- Lock code protection: Yes
- Halogen free: Yes
- Dimensions (H x L x W): 92mm x 66mm x 71mm
- Weight: 0.3 kg
Key Features
- Direct connection up to 63A for 3-phase or 3-phase + neutral
- Modbus RS485 communication interface
- Double tariff or pulse input for integration with other meters (gas, water, electrical)
- Bidirectional measurement of production and consumption energies
- Backlit digital display with easy data reading and parameter preview
- User code protected settings mode
- Measures run hours on each tariff and local phase shift display
- IP54 degree of protection
- Screwed terminal connection with capacity for 1-16 mm² cables
- Halogen free construction
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Industrial and commercial electrical energy monitoring
- Three-phase power measurement in switchboards and power cabinets
- Energy management systems requiring bidirectional measurement
- Monitoring consumption and production energies with two-tariff billing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables accurate energy monitoring to optimize consumption and reduce waste
- Supports bidirectional measurement facilitating renewable energy integration
- Halogen free materials reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand EMDX3 Energy Meter Tri Direct 63A 230/400V 2 Tariff RS485 is available for immediate purchase, ideal for industrial and commercial energy monitoring applications.
