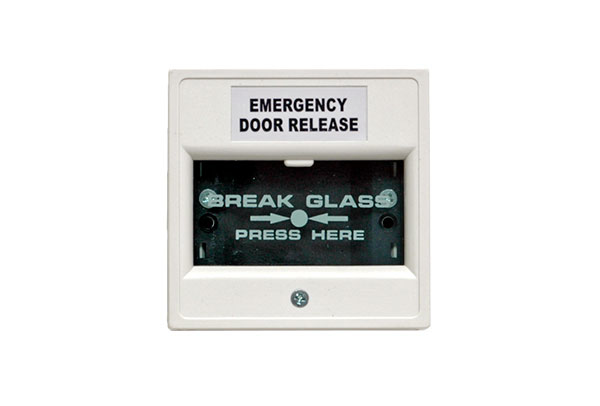

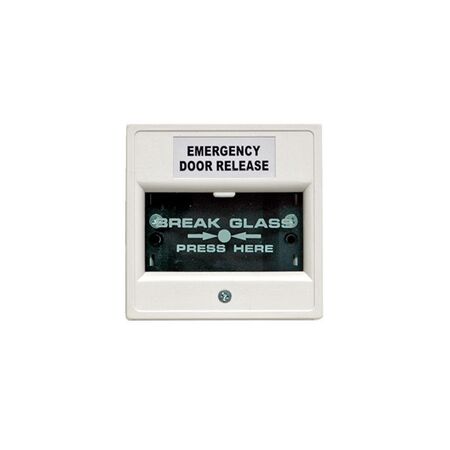

Emergency Break Glass Door Release SPDT Contacts Ness

BRAND: Ness
SKU: 101-154B
$31.80 List price: $42.40
+ −
30 Days Return Electricians Unlock Trade Access
Ness emergency break glass door release features SPDT contacts and compatibility with Ness access control. Ideal for access control emergency exits.

Alternatively Known As: Ness Emergency Exit Release Switch, Break-Glass Emergency Door Release, Access Control Emergency Override

Technical Specifications
  • Model: 101-154B
  • Switch Type: SPDT contacts
  • Application: Emergency door and exit release
  • System Compatibility: Ness access control systems
  • Operation: Break-glass manual emergency override
  • Mounting: Wall-mounted access control accessory
  • Dimensions (H x L x W): 88mm x 55mm x 88mm
  • Weight: 0.15 kg
Key Features
  • SPDT contacts for flexible access control interfacing
  • Designed for emergency exit door release applications
  • Suitable for use with Ness access control systems
  • Break-glass activation provides a clear manual emergency override
  • Compact wall-mounted design
  • Replacement glass element available for the Ness unit
Professional Installation Requirements
  • Installation and connection should be performed by a suitably qualified access-control technician. Where the unit is connected to mains-voltage equipment, installation must be completed by a licensed electrician in accordance with applicable regulations.
Applications
  • Emergency exit doors in commercial buildings
  • Access-controlled office and industrial premises
  • Security doors requiring manual emergency release
  • Integration with Ness electronic access control systems
Standards & Compliance
  • AS/NZS IEC 60839.11.2:2019 for electronic access control system installation and operation guidance
  • Installation must also comply with applicable NCC egress and emergency exit requirements
Environmental Benefits
  • Replaceable glass element can extend the service life of the switch assembly and reduce replacement waste
  • Hard-wired operation avoids routine battery replacement
  • Ness maintains RoHS compliance documentation for its product range
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Australian Consumer Law rights also apply.

Available Now

Available through Ness Corporation and authorised Australian security and access-control distributors.
