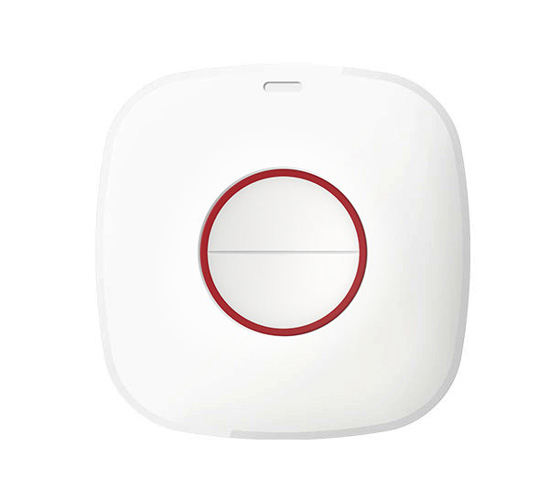

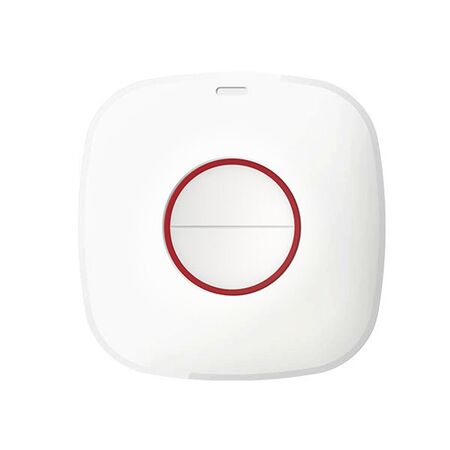

Emergency Button Dual AX PRO Hikvision
Hikvision AX PRO dual button emergency device for manual alarm triggering. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AX PRO Dual Panic Button, Wireless Emergency Button, Duress Button, Hold-Up Button
Technical Specifications
- Model: DS-PDEB2-EG2-WB(B)
- Button Configuration: Dual-button emergency activation
- Wireless Technology: Tri-X two-way RF wireless
- Transmission Frequency: 433 MHz
- Wireless Range: Up to 800 m in free space
- Wireless Security: AES-128 encryption with frequency hopping
- Battery: 1 x CR2450, 3 V
- Battery Life: Up to 3 years standby
- LED Indicator: Blue alarm indication
- Tamper Protection: Front and rear
- Ingress Protection: IP66
- Operating Temperature: -10 °C to 55 °C
- Operating Humidity: 10% to 90% RH
- Mounting: Wall-mounted
- Enrolment: Power-up, remote ID or QR code
- Dimensions (H x L x W): 63.8mm x 63.8mm x 19mm
- Weight: 0.1 kg
Key Features
- Two-button design helps reduce accidental activation
- Provides manual emergency, panic or duress alarm triggering
- Two-way wireless communication reports alarm and device status to the AX PRO hub
- AES-128 encryption and frequency hopping help improve wireless security
- Up to 800 m open-space transmission range on the 433 MHz version
- IP66-rated enclosure for indoor installations and humid environments
- Front and rear tamper protection
- Replaceable CR2450 battery
- Blue LED confirms alarm activation
Professional Installation Requirements
- Installation, enrolment and alarm programming should be completed by a suitably qualified security installer. Configure the device with a compatible Hikvision AX PRO control panel and test alarm signalling after installation.
Applications
- Residential AX PRO intrusion alarm systems
- Commercial and small-business security systems
- Duress and hold-up alarm activation
- Reception desks, offices, retail premises and controlled-access areas
- Manual emergency triggering where a fixed wall-mounted button is required
Standards & Compliance
- AS/NZS 2201.1:2007 - applicable to the design, installation, commissioning and maintenance of wire-free intruder alarm systems; product-level certification should be confirmed for the supplied Australian model
Environmental Benefits
- Low-power wireless operation avoids dedicated signal cabling and associated installation materials
- Replaceable CR2450 battery supports continued use without replacing the complete device
- Up to three-year battery life can reduce battery replacement frequency and maintenance-related waste
- Durable IP66 enclosure and tamper protection may extend service life and reduce premature replacement
Warranty Information
Three-year warranty is commonly provided for Hikvision products supplied through authorised Australian security distributors; confirm the applicable warranty terms with the supplying distributor and retain proof of purchase.
Available Now
Available through Hikvision and authorised Australian security distributors, subject to regional model and frequency availability.
