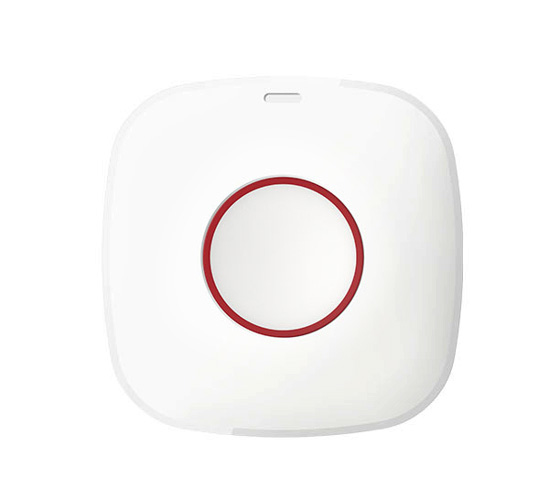

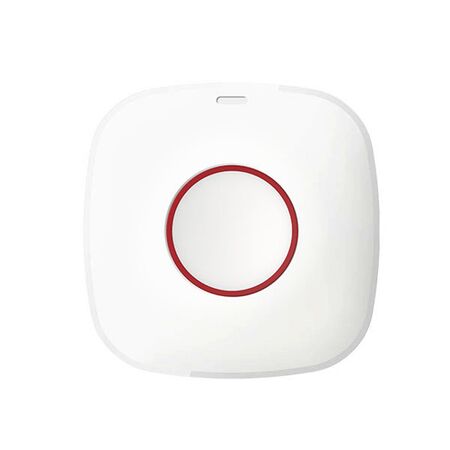

Emergency Button Single Version B AX PRO Hikvision
Hikvision AX PRO single button emergency device, revision B, for manual alarm triggering. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AX PRO Panic Button, Wireless Emergency Button, Medical Alarm Button, DS-PDEB1-EG2-WB(B)
Technical Specifications
- Model: DS-PDEB1-EG2-WB(B)
- Button Configuration: Single emergency button
- Alarm Functions: Panic alarm or configurable medical alarm
- Wireless Technology: Hikvision Tri-X two-way wireless
- Transmission Frequency: 433 MHz
- Wireless Security: AES-128 encryption with frequency hopping
- Wireless Range: Up to 800 m in free space
- Power Supply: 1 x CR2450 3 V battery
- Battery Life: Up to 3 years in standard standby conditions
- Protection Rating: IP66
- Tamper Protection: Front and rear tamper detection
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH
- Mounting: Wall-mounted
- Indicator Functions: Alarm LED, signal-strength indication and temperature status
- Dimensions (H x L x W): 18.4mm x 63.8mm x 63.8mm
- Weight: 0.1 kg
Key Features
- Manual single-button alarm triggering for compatible Hikvision AX PRO systems
- Configurable for panic or medical alarm operation
- Encrypted two-way wireless communication using Hikvision Tri-X technology
- Frequency hopping helps improve communication resilience
- Up to 800 m transmission range in open space
- Front and rear tamper protection
- IP66-rated enclosure for suitable humid indoor environments
- Remote enrolment and configuration through the AX PRO platform
- Replaceable CR2450 battery with up to three years of standard standby life
Professional Installation Requirements
- Installation, enrolment and commissioning should be performed by a suitably qualified security installer in accordance with the AX PRO installation instructions and applicable Australian requirements. Confirm wireless signal strength at the mounting location before final commissioning.
Applications
- Residential emergency and panic alarm points
- Office reception desks and staff assistance points
- Healthcare and aged-care assistance applications
- Medical alarm triggering when configured through AX PRO
- Fixed emergency call points in homes, offices and protected premises
- Suitable humid indoor locations requiring increased moisture resistance
Standards & Compliance
- Applicable system installation standard: AS/NZS 2201.1:2007, Intruder alarm systems—Client’s premises—Design, installation, commissioning and maintenance. Product-specific compliance should be confirmed from the supplied Hikvision compliance documentation.
Environmental Benefits
- Wireless operation can reduce the need for dedicated signal cabling and associated installation materials
- Low-power battery operation and up to three years of standby life can reduce battery replacement frequency
- Replaceable battery design supports maintenance without replacing the complete device
- Compact design and long service life can help reduce electronic waste compared with frequent equipment replacement
Warranty Information
Hikvision AX PRO products are commonly supplied in Australia with a 3-year warranty against manufacturing defects through authorised distributors. Warranty eligibility and terms are subject to the seller, proof of purchase and Hikvision’s applicable warranty conditions.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to distributor stock.
