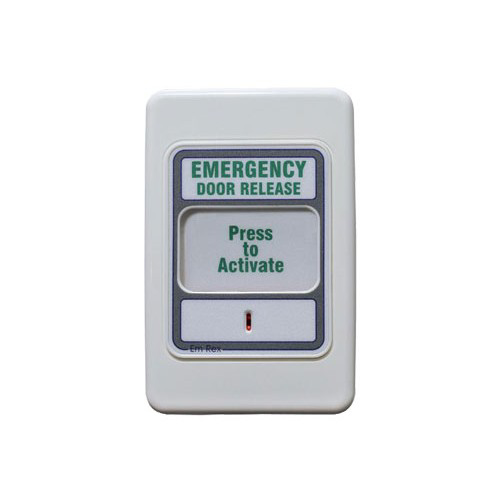

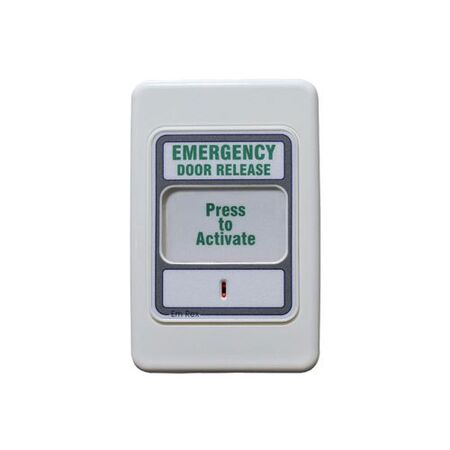

Emergency Exit Device Latching Non-Break-Glass Field Resettable Ness
Ness latching emergency exit device features non-break-glass operation, field resettable use and a built-in sounder. Ideal for access control emergency exits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Em Rex Emergency Request to Exit Device, Ness Emergency Door Release, Non-Break-Glass Exit Button
Technical Specifications
- SKU: 101-010
- Device Type: Latching emergency door release
- Operation: Non-break-glass, push-to-activate
- Reset: Field resettable using supplied pin tool
- Power Requirement: 9–16 V DC when using the onboard sounder
- Current Draw: 10 mA at 13.6 V DC
- Outputs: Two sets of NO and NC voltage-free dry contacts
- Contact Rating: 1 A at 12 V DC capacitive load
- Sounder: Built-in sounder with ancillary input for remote activation
- Mounting: Single-gang profile suitable for a standard electrical flush box
- Faceplate: Durable, cleanable and fade-resistant Lexan overlay
- Certification: CE Certified
- Dimensions (H x L x W): 115mm x 30mm x 75mm
- Weight: 0.5 kg
Key Features
- Latching emergency exit operation without breaking glass
- Field resettable design reduces the need for replacement activation elements
- Built-in sounder operates when the device is activated
- Ancillary input allows the sounder to be triggered remotely
- Red indication bar provides visual confirmation of activation
- Two sets of normally open and normally closed voltage-free contacts
- Minimal moving parts for straightforward servicing
- Designed for integration with access control emergency egress systems
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified access control or security technician. Wiring must be completed in accordance with the access control system design, manufacturer instructions and applicable building egress requirements.
Applications
- Access-controlled emergency exit doors
- Commercial buildings and offices
- Retail and public buildings
- Security-controlled facilities
- Emergency release systems integrated with electric locks, strikes or magnetic locks
Environmental Benefits
- Field-resettable operation reduces replacement parts and product waste after activation
- Durable Lexan faceplate and minimal moving parts support extended service life
- Low current draw helps minimise energy consumption within low-voltage access control systems
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness Corporation terms and conditions.
Available Now
Available through Ness Corporation and authorised Australian security and access control distributors.
