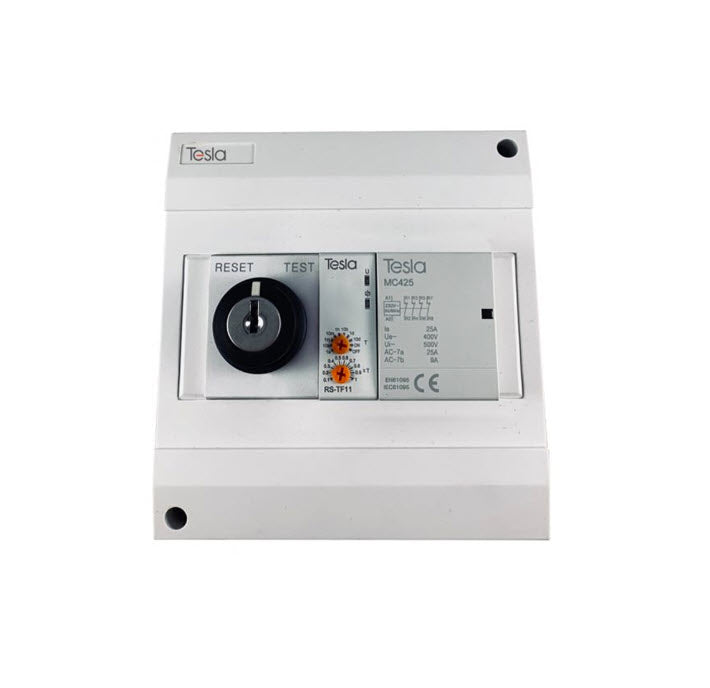

Emergency Lighting Test Switch | 230V AC | 4 Pole 25A Contactor | Programmable Time Delay by Firebox
Emergency lighting test switch with 230V AC operation and 4 pole 25A contactor—ideal for testing emergency lighting systems in commercial buildings. Built for safety compliance, featuring a fully programmable time delay and key switch operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Emergency Lighting Test Switch | 230V AC | 4 Pole 25A Contactor | Programmable Time Delay by Firebox
Brand: Firebox
SKU: TSELTEST-KIT
Alternatively Known As: Emergency Lighting Test Switch, Tesla Test Switch, Enclosed Emergency Light Tester
Technical Specifications
- Operating Voltage: 230V AC +/- 5%, 50/60Hz
- 4 Pole, 25A NC Contactor
- Cable Entry: 4mm2
- Operating Temperature: 5 to 50°C
- IP Rating: IP20
- Fully programmable Time Delay
- Dimensions (H x L x W): 122mm x 96mm x 130mm
- Weight: 1.2 kg
Key Features
- Control single point system
- Manual or automatic reset
- Simulate supply failure to exit signs in accordance with AS/NZS2293.2
- Key switch operation
- Fully programmable Time Delay
- 4 Pole, 25A NC Contactor
- Operating Voltage: 230V AC +/- 5%, 50/60Hz
- Cable Entry 4mm2
- Operating Temperature 5 to 50°C
- IP Rating IP20
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper operation.
Applications
- Emergency lighting systems testing in commercial buildings
- Safety compliance testing for exit signs
- Maintenance of emergency lighting in public and private facilities
Standards & Compliance
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Helps ensure emergency lighting systems are functioning properly, enhancing safety and reducing energy waste from faulty equipment.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Firebox Enclosed Tesla Emergency Lighting Test Switch is available now for immediate purchase. Ideal for emergency lighting system testing in commercial and public buildings.
