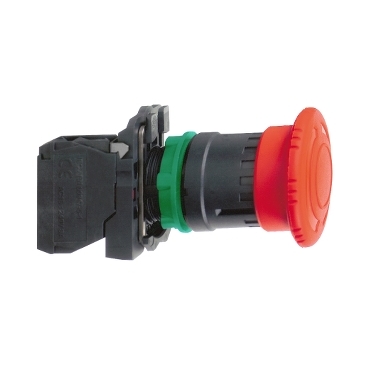

Emergency Stop Button 1N/C Red | IP66 Rated | Twist-Release Mechanism | by Clipsal
The Emergency Stop Button 1N/C Red is designed for industrial safety, featuring a highly visible red actuator and a robust twist-release mechanism. With an IP66 rating for dust and water resistance, it's perfect for emergency stop applications in manufacturing plants, conveyor systems, and control panels, ensuring quick identification and reliable operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Emergency Stop Button 1N/C Red | IP66 Rated | Twist-Release Mechanism | by Clipsal
Brand: Clipsal
SKU: SCHMXB5AS542
Alternatively Known As: emergency stop button, e-stop, emergency push button, safety stop switch, industrial emergency stop
Technical Specifications
- Contact configuration: 1 Normally Closed (1N/C)
- Actuator color: Red
- Reset type: Twist-release
- Mounting diameter: 22mm
- Degree of protection: IP66
- Rated insulation voltage: 600V
- Thermal current: 10A
- Material: Durable plastic and metal construction
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.12 kg
Key Features
- Robust emergency stop push button
- 1 Normally Closed (1N/C) contact configuration
- Highly visible red actuator for quick identification
- Twist-release mechanism for reset
- IP66 rated for dust and water resistance
- Easy installation with standard 22mm mounting diameter
Professional Installation Requirements
- Installation must be performed by a qualified electrician or technician to ensure compliance with safety standards.
Applications
- Industrial machinery emergency stop
- Manufacturing plants
- Conveyor systems
- Control panels
- Automated equipment safety
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards from uncontrolled machinery.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Emergency Stop 1N/C Red SCHMXB5AS542 is available for immediate purchase. Ideal for industrial and commercial safety applications requiring reliable emergency stop functionality.
