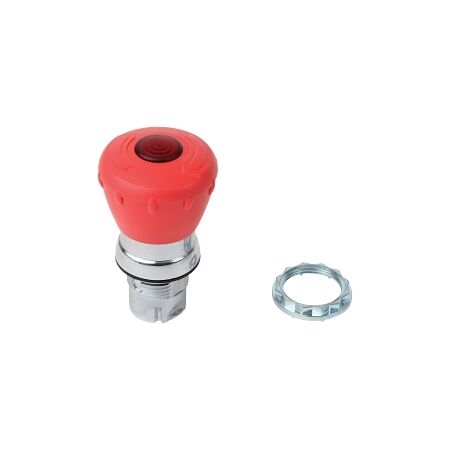

Emergency Stop Button 22.5mm | Metal Mushroom Head | IP66 Rated | Red by NHP
Emergency stop button with 22.5mm diameter and metal mushroom head—ideal for industrial and commercial safety applications. Built for durability with IP66 protection, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800F E Stop 22.5mm Head Only Metal Mushroom Head Twist to Release 40mm Red Illum
Brand: NHP
SKU: 800FMLMT44
Alternatively Known As: Emergency Stop Button, Mushroom Pushbutton, 800F Pushbutton
Technical Specifications
- Suitable for emergency stop: Yes
- Colour button: Red
- Material front ring: Metal
- Degree of protection IP: IP66
- Switching function latching: Yes
- Unlocking method: Turn-release
- Mechanical life service cycles: 300,000 cycles
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Max shock acceleration: 100 g
- Suitable for illumination: Yes
- Diameter cap: 40 mm
- Hole diameter: 22.5 mm
- Operating temperature: -25 to 70 °C
- Dimensions (H x L x W): 45mm x 40mm x 40mm
- Weight: 0.3 kg
Key Features
- 22.5mm pushbutton suitable for emergency stop applications.
- Metal front ring for durability and longevity.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Manufacturing facilities, machinery control
- Commercial: Emergency stop applications in various environments
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 800F E Stop 22.5mm Head Only Metal Mushroom Head is available now for immediate purchase, ideal for emergency stop applications in various environments.
