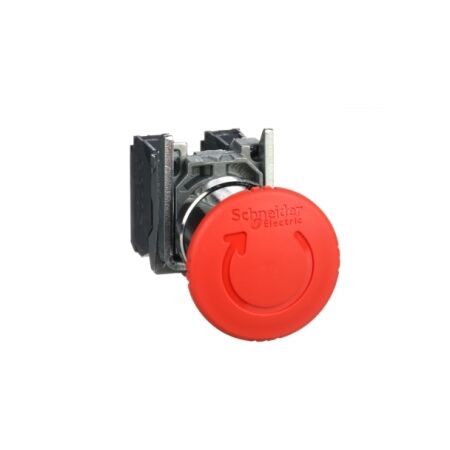

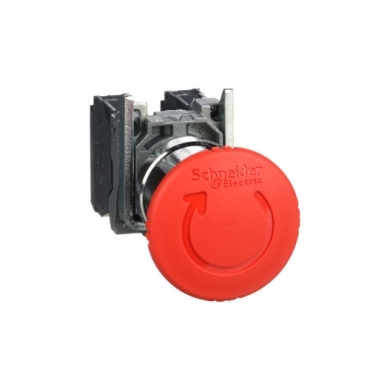

Emergency Stop Button | 40mm Red High Visibility | Latching Turn Release | IP66 Rated | @Pack of 1 | by Clipsal
The Emergency Stop Button is designed for industrial safety, featuring a 40mm red button for high visibility and a latching turn-to-release mechanism. With a robust construction and IP66 rating, it's perfect for emergency shutdowns in manufacturing plants, conveyor systems, and control panels, ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Emergency Stop Button | 40mm Red High Visibility | Latching Turn Release | IP66 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXB4BS8445
Alternatively Known As: emergency stop button, e-stop, Clipsal emergency stop, industrial emergency stop switch, SCHXB4BS8445
Technical Specifications
- Button type: Emergency stop, latching turn release
- Button diameter: 40mm
- Mounting diameter: 22mm
- Contact configuration: 1NC + 1NO
- Rated insulation voltage: 600V
- Mechanical durability: 300,000 cycles
- Material: High-impact plastic actuator, metal mounting base
- Ingress protection: IP66 (front face)
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Red 40mm emergency stop button for high visibility
- Latching turn-to-release mechanism for safety
- 1 Normally Closed (NC) + 1 Normally Open (NO) contact configuration
- Robust construction for industrial environments
- Panel mounting with 22mm diameter cutout
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with safety standards and correct operation.
Applications
- Industrial machinery emergency stop
- Manufacturing plants
- Conveyor systems
- Control panels
- Safety shutdown for electrical equipment
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards from uncontrolled machinery.
Warranty Information
12 months manufacturer warranty against defects.
Available Now
The Clipsal SCHXB4BS8445 Emergency Stop is available for immediate purchase. Ideal for industrial and commercial safety applications requiring reliable emergency shutdown.
