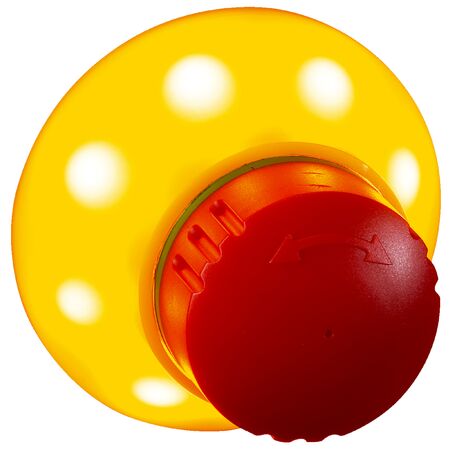

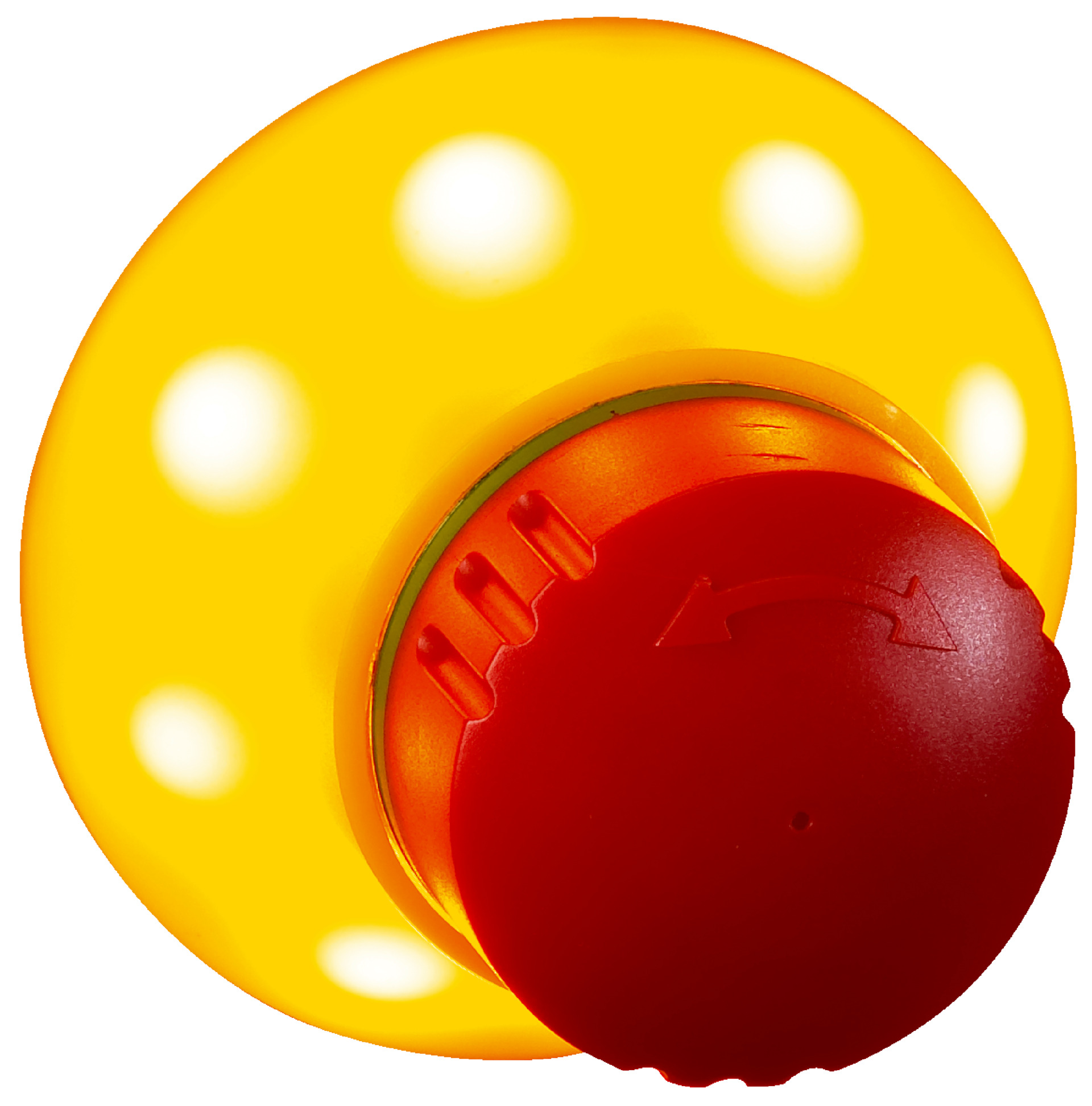

Emergency Stop Button ES21-AT1130 | Illuminable Pushbutton | Rotary Release | IP54 Rated | by SICK
The Emergency Stop Button ES21-AT1130 is designed for industrial safety, featuring an illuminable pushbutton for clear visibility and a rotary release for reliable reset. With IP54 rating for dust and splash protection, it's perfect for control panels and machinery emergency stop systems, ensuring safe operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Actuation directions: 1
- Emergency stop pushbutton: Illuminable
- Obstruction protection: Yes
- Release type: Rotary release
- Safe series connection: None, only individual wiring with diagnostics
- Switching principle: Slow action switching element
- Mounting diameter: 22 mm
- Housing material: Plastic
- Mechanical life: 50,000 switching cycles
- Enclosure rating: IP54 (IEC 60529)
- Ambient operating temperature: –30 °C to +55 °C
- Storage temperature: –50 °C to +85 °C
- Dimensions (H x L x W): 61mm x 55mm x 55mm
- Weight: 0.1 kg
Key Features
- Illuminable emergency stop pushbutton for clear visibility
- Obstruction protection to prevent accidental activation
- Rotary release type for reliable reset
- Slow action switching element for safe operation
- IP54 rated enclosure for dust and splash protection
- Mechanical life of 50,000 switching cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety control systems and electrical wiring standards.
Applications
- Industrial machinery emergency stop control
- Safety systems requiring obstruction protection
- Control panels with individual wiring diagnostics
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable plastic housing reduces need for frequent replacements
- Long mechanical life minimizes waste and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ES21-AT1130 Emergency Stop Pushbutton is available for immediate purchase, ideal for industrial safety and control panel applications.
