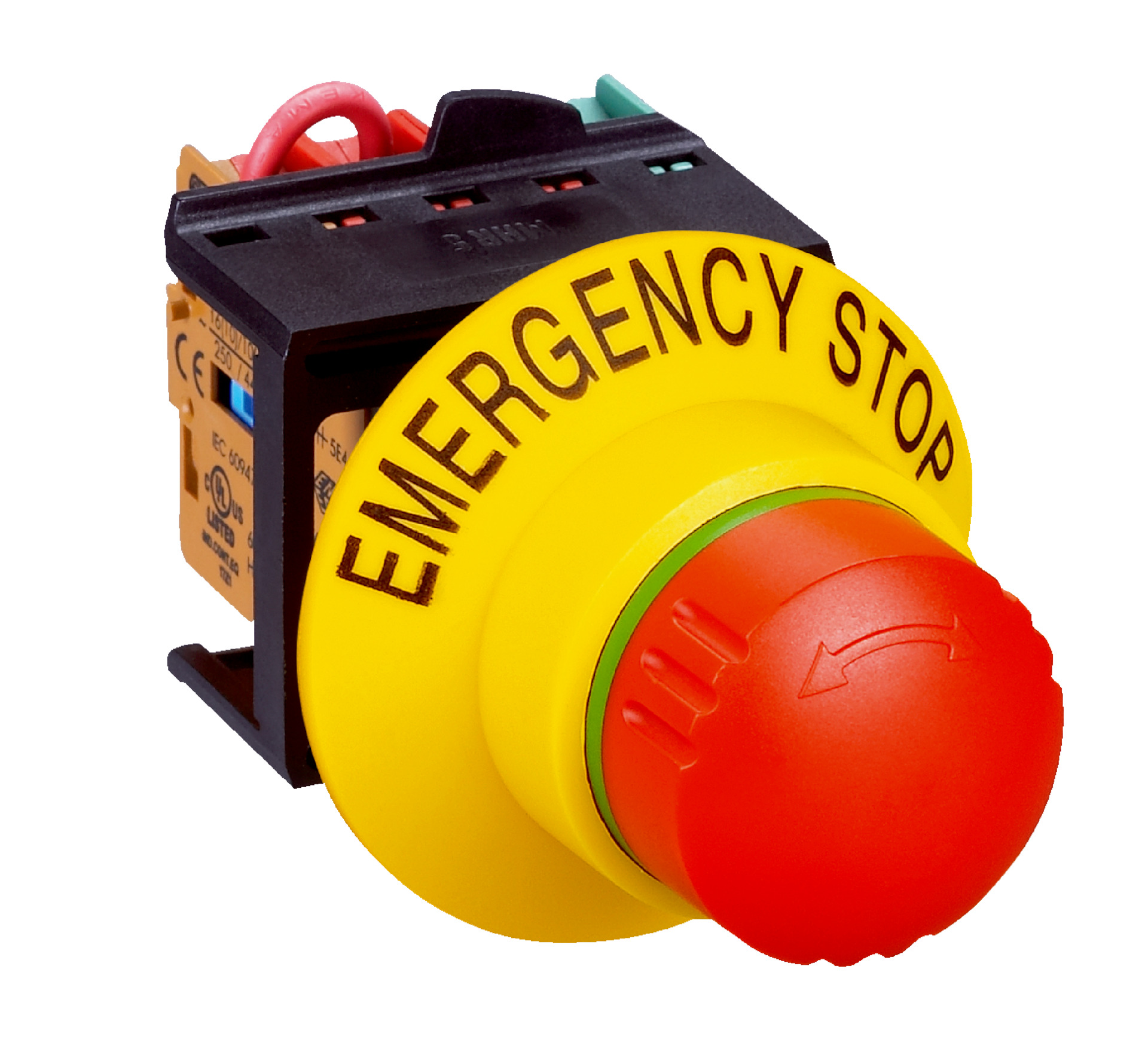

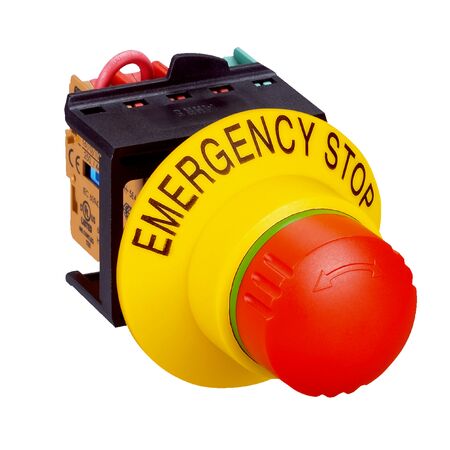

Emergency Stop Button | Illuminated Pushbutton | IP54 Rated | by SICK
The Emergency Stop Button ES21-SB13J1 features an illuminated pushbutton with positive action N/C contacts and a robust IP54 enclosure, making it ideal for industrial machinery emergency stop control. Designed for panel mount installations, this switch ensures safety and compliance in manufacturing environments, with a long lifespan of up to 100,000 hours.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 1
- Actuation directions: 1
- Connection type: Terminal strip with screw connection
- Conductor cross section: ≤ 2.5 mm²
- Usage category: AC-15/DC-13 (EN 60947-5-1)
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 600 V
- Switching voltage: ≥ 5 V DC
- Switching current: ≥ 1 mA
- Supply voltage Vs: 24 V DC (12 V DC to 30 V DC)
- Power consumption: 8 mA to 44 mA
- Life time: 70,000 to 100,000 hours
- Housing material: Plastic
- Mounting version: Panel mount
- Enclosure rating: IP54 (IEC 60529)
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +85 °C
- Dimensions (H x L x W): 60mm x 70mm x 60mm
- Weight: 0.15 kg
Key Features
- Positive action N/C contacts: 2
- N/O contacts: 1
- Emergency stop pushbutton is illuminable
- Obstruction protection included
- Rotary release type
- Labelled "EMERGENCY STOP" for clear identification
- Panel mount version with plastic housing
- Protection class II (EN 50178)
- Slow action switching element
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 600 V
- IP54 enclosure rating for dust and splash protection
- Operating temperature range: -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial safety systems to ensure compliance with safety standards.
Applications
- Industrial machinery emergency stop control
- Safety systems requiring emergency stop functionality
- Panel mount installations in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long lifetime of up to 100,000 hours reduces waste and replacement frequency
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ES21-SB13J1 Emergency Stop Pushbutton is available for immediate purchase, ideal for industrial safety and emergency stop applications.
