Emergency Stop Button | Illuminated Pushbutton | Panel Mount | 1 Million Switching Cycles | by SICK
The Emergency Stop Button is designed for industrial safety control, featuring 2 positive action N/C contacts and 1 N/O contact for reliable operation. With an illumination supply voltage of 24 V DC and a mechanical life of 1 million switching cycles, this panel mount pushbutton is perfect for safety control panels in manufacturing environments, ensuring quick and effective emergency stops.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 1

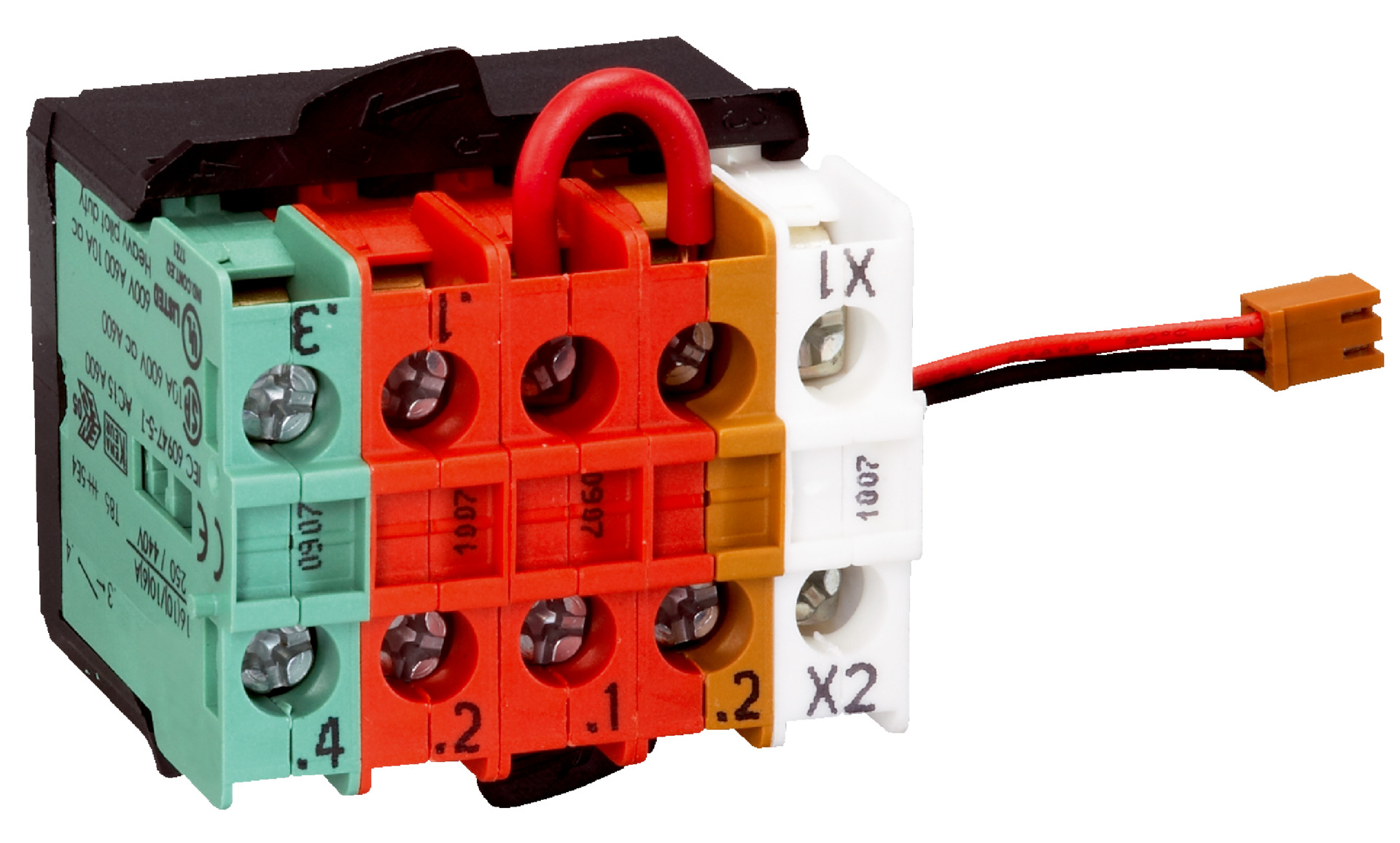

- Contact module for panel mount version included
- B10d parameter: 250,000 switching cycles
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Screw connection
- Conductor cross section: ≤ 2.5 mm²
- Protection class: II (EN 50178)
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (EN 60947-5-1)
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 600 V
- Switching voltage: ≥ 5 V DC
- Switching current: ≥ 1 mA
- Electrical life: 1 x 10^6 switching cycles
- Illumination supply voltage: 24 V DC (12 V DC to 30 V DC)
- Power consumption: 8 mA to 44 mA
- Illumination lifetime: 70,000 to 100,000 hours
- Mechanical life: 1 x 10^6 switching cycles
- Ambient operating temperature: –30 °C to +85 °C
- Storage temperature: –50 °C to +85 °C
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
- Illuminable emergency stop pushbutton
- Panel mount version with screw connection
- Slow action switching element for reliable operation
- Protection class II (EN 50178)
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Electrical life of 1 million switching cycles
- Mechanical life of 1 million switching cycles
- Illumination supply voltage 24 V DC (12 V DC to 30 V DC)
- Power consumption between 8 mA and 44 mA
- Long illumination lifetime up to 100,000 hours
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure compliance with safety standards and proper wiring.
Applications
- Industrial machinery emergency stop control
- Safety control panels in manufacturing environments
- Panel mount safety switch for emergency stop functions
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long mechanical and electrical life reduces waste and replacement frequency
- Low power consumption illumination enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

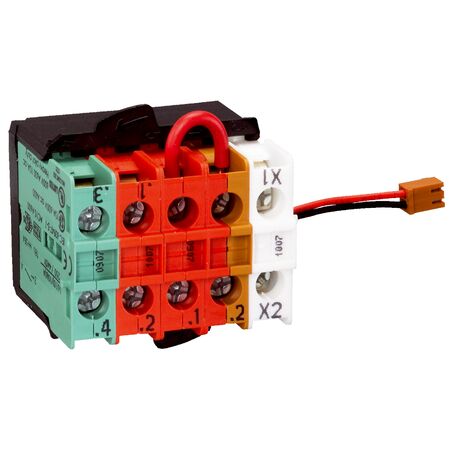

The SICK ES21-CH2111 Emergency Stop Pushbutton is available for immediate purchase, ideal for industrial safety control panel applications.
