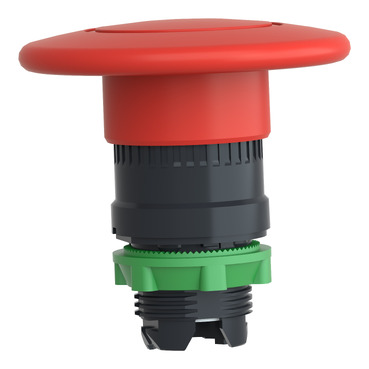

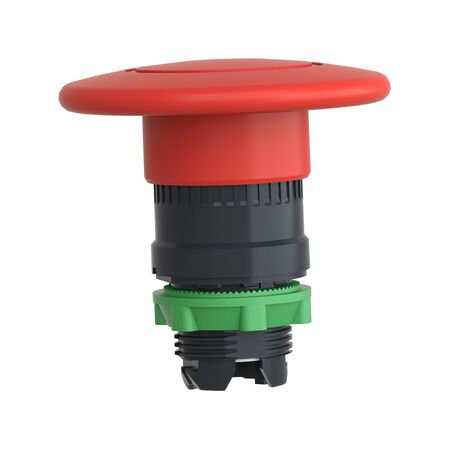

Emergency Stop Head Red Push Button | IP66 Rated | 300,000 Cycles | High Visibility | @Pack of 1 | by Clipsal
The Emergency Stop Head Red Push Button is designed for industrial safety, featuring a large red mushroom head for high visibility and an IP66 rating for dust and water resistance. With a robust construction and a twist-release mechanism, it's perfect for emergency stop controls in manufacturing plants and conveyor systems, ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Emergency Stop Head Red Push Button | IP66 Rated | 300,000 Cycles | High Visibility | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB5AX84
Alternatively Known As: Emergency Stop Button, E-Stop, Emergency Mushroom Button, Red Emergency Stop, Industrial Stop Switch
Technical Specifications
- Type: Emergency stop push button head
- Colour: Red
- Material: Plastic
- Mounting diameter: 22 mm
- Operation: Push to stop, twist to release
- IP Rating: IP66
- Mechanical durability: 300,000 cycles
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.1 kg
Key Features
- Large red mushroom head for high visibility
- Twist-release mechanism for reset
- Robust construction for industrial environments
- Easy installation on control panels
- Complies with international safety standards
Professional Installation Requirements
- Installation must be performed by a qualified electrician or technician to ensure compliance with safety regulations.
Applications
- Industrial machinery emergency stop controls
- Manufacturing plants
- Conveyor systems
- Control panels
- Safety shutdown systems
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards from machinery malfunction.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Emergency Stop Head Red Push Button SCHZB5AX84 is available for immediate purchase. Ideal for industrial and commercial safety applications requiring reliable emergency stop functionality.
