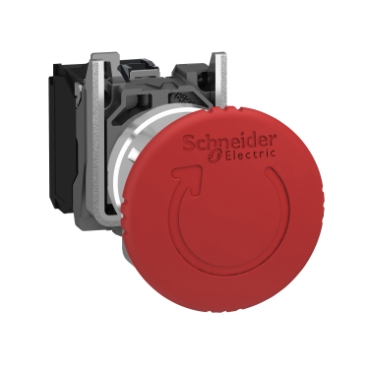

Emergency Stop Pushbutton 1NC + 1NC MC | IP66 Rated | Red Mushroom Head | Mechanical Latching | @Pack of 1 | by Clipsal
The Emergency Stop Pushbutton 1NC + 1NC MC is designed for safety applications, featuring a robust red mushroom head actuator and double normally closed contacts for reliable operation. Ideal for industrial machinery and manufacturing plants, this pushbutton ensures quick identification and positive engagement, enhancing workplace safety and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Emergency Stop Pushbutton 1NC + 1NC MC | IP66 Rated | Red Mushroom Head | Mechanical Latching | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXB4BS84462
Alternatively Known As: emergency stop button, e-stop switch, emergency stop switch, Clipsal e-stop, industrial emergency stop, SCHXB4BS84462
Technical Specifications
- Contact configuration: 1NC + 1NC (double normally closed)
- Actuator type: Red mushroom head, push-pull
- Mounting: Panel mount, 22mm diameter
- Mechanical latching action
- Rated insulation voltage: 600V
- Conventional thermal current: 10A
- Degree of protection: IP66 (front face)
- Material: Durable plastic and metal construction
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Robust emergency stop pushbutton for safety applications
- Double normally closed (1NC + 1NC) contacts for reliable operation
- Mechanical latching for positive engagement
- Highly visible red actuator for quick identification
- Panel mounting design
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with safety standards and correct integration into emergency stop circuits.
Applications
- Industrial machinery emergency stop circuits
- Manufacturing plants
- Conveyor systems
- Control panels
- Safety shutdown systems
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards from uncontrolled machinery.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Emergency Stop Pushbutton 1NC + 1NC MC (SCHXB4BS84462) is available for immediate purchase. Ideal for industrial and commercial safety applications requiring reliable emergency stop functionality.
