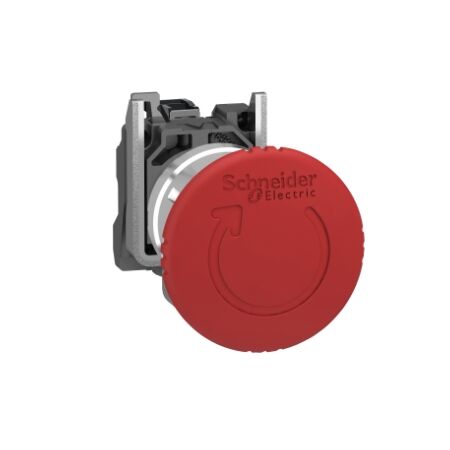

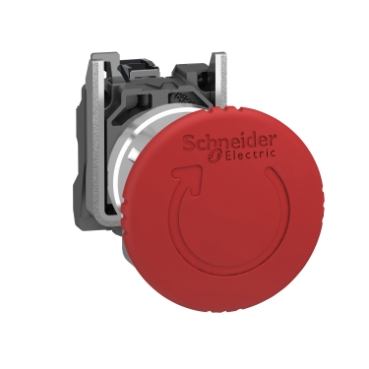

Emergency Stop Pushbutton 1NC Monitoring | Red Mushroom Head | IP66/IP67/IP69K Rated | by Clipsal
The Emergency Stop Pushbutton 1NC Monitoring is designed for high visibility and safety in industrial applications. Featuring a robust red mushroom head with a 40mm diameter and a trigger latching mechanism, this pushbutton ensures reliable operation in emergency situations. Ideal for manufacturing plants and automated production lines, it meets stringent safety standards and offers a durable metal construction for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Emergency Stop Pushbutton 1NC Monitoring | Red Mushroom Head | IP66/IP67/IP69K Rated | by Clipsal
Brand: Clipsal
SKU: SCHXB4BS8446
Alternatively Known As: Emergency Stop Button, E-Stop Switch, Mushroom Head Emergency Stop, Industrial Emergency Stop, Harmony XB4 Emergency Stop
Technical Specifications
- Type: Emergency Stop Pushbutton
- Contact Configuration: 1NC with monitoring
- Head Type: Mushroom, red, 40mm diameter
- Mounting Diameter: 22mm
- Material: Metal
- Operation: Trigger latching, turn to release
- Series: Harmony XB4
- Degree of Protection: IP66, IP67, IP69, IP69K
- Mechanical Durability: 300,000 cycles
- Rated Insulation Voltage: 600V
- Standards: IEC 60947-5-1, EN/IEC 60204-1
- Dimensions (H x L x W): 60mm x 40mm x 40mm
- Weight: 0.15 kg
Key Features
- Red mushroom head 40mm for high visibility
- Trigger latching mechanism with turn-to-release action
- 1 Normally Closed (NC) contact with monitoring function
- Robust metal construction for durability
- 22mm mounting diameter compatible with standard panels
- Harmony XB4 series for reliable performance
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and correct integration into emergency stop circuits.
Applications
- Industrial machinery emergency stop circuits
- Manufacturing plants
- Conveyor systems
- Control panels
- Automated production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards from machinery malfunction.
- Durable construction minimizes replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Emergency Stop Pushbutton 1NC Monitoring SCHXB4BS8446 is available for immediate purchase. Ideal for industrial and commercial emergency stop applications.
