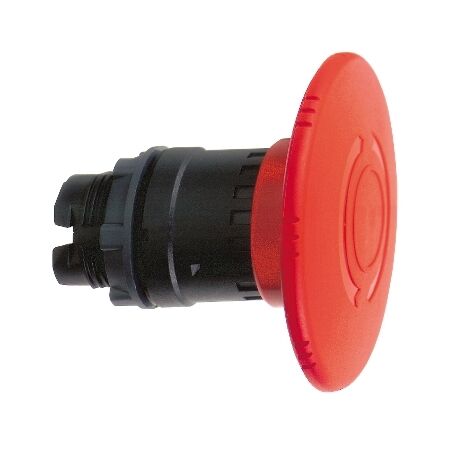

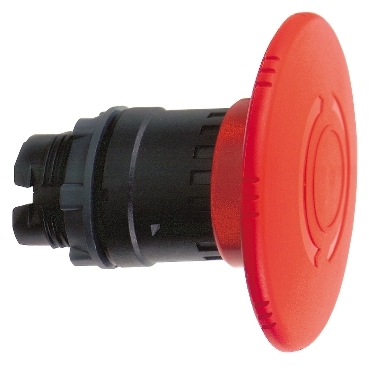

Emergency Stop Pushbutton | Red Mushroom Head | Maintained Operation | IP65 Rated | @Pack of 1 | by Clipsal
The Emergency Stop Pushbutton is designed for safety-critical applications, featuring a highly visible red mushroom head for quick identification. With maintained operation and IP65 ingress protection, it's perfect for industrial machinery, manufacturing plants, and automated production lines. Built for durability, this pushbutton ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Emergency Stop Pushbutton | Red Mushroom Head | Maintained Operation | IP65 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB5AS864
Alternatively Known As: emergency stop button, E-stop switch, emergency pushbutton, Clipsal emergency switch, industrial stop button
Technical Specifications
- Type: Emergency stop pushbutton
- Actuator: Red, mushroom head
- Operation: Maintained (latching)
- Panel cutout: 22mm diameter
- Contact configuration: 1 Normally Closed (NC)
- Rated voltage: 600V AC max
- Rated current: 10A
- Ingress protection: IP65 (front face)
- Material: High-impact plastic and metal
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Robust emergency stop pushbutton for safety-critical applications
- Highly visible red actuator for quick identification
- Maintained (latching) operation for emergency use
- Simple installation in standard 22mm panel cutouts
- Durable construction for industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with safety regulations and correct operation.
Applications
- Industrial machinery emergency stop control
- Manufacturing plants
- Conveyor systems
- Automated production lines
- Commercial electrical panels
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards from uncontrolled machinery.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHZB5AS864 Emergency Stop Pushbutton is available for immediate purchase. Ideal for industrial and commercial emergency stop applications.
