Emergency Stop Pushbutton | Red Mushroom Head | IP66 Rated | @Pack of 1 | by Clipsal

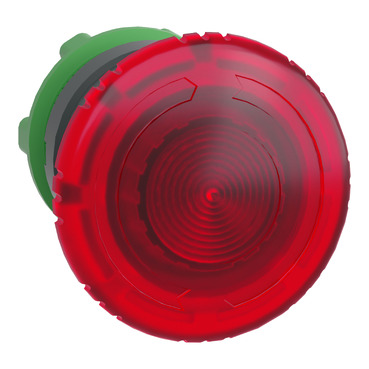

The Emergency Stop Pushbutton features a large red mushroom head for high visibility and a twist-release mechanism for safety reset. Designed for industrial environments, this pushbutton is IP66 rated for dust and water resistance, making it ideal for emergency stop applications in manufacturing plants, control panels, and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Emergency Stop Pushbutton | Red Mushroom Head | IP66 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB5AW743
Alternatively Known As: emergency stop button, E-stop switch, mushroom head emergency switch, Clipsal emergency stop, industrial emergency pushbutton
Technical Specifications
- Type: Emergency stop pushbutton
- Head: Red mushroom, 40mm diameter
- Operation: Push to stop, twist to release
- Contact configuration: 1 NC (normally closed)
- Mounting diameter: 22mm
- Degree of protection: IP66
- Material: Durable plastic and metal components
- Standards: IEC 60947-5-1 compliant
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Large red mushroom head for high visibility
- Twist-release mechanism for safety reset
- Robust construction for industrial environments
- Simple push-to-stop operation
- IP66 rated for dust and water resistance
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with safety regulations and correct integration into emergency stop circuits.
Applications
- Industrial machinery emergency stop
- Manufacturing plants
- Control panels
- Conveyor systems
- Electrical switchboards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards from machinery malfunction.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ZB5AW743 Pushbutton Emergency Switching Off is available for immediate purchase. Ideal for industrial and commercial emergency stop applications.
