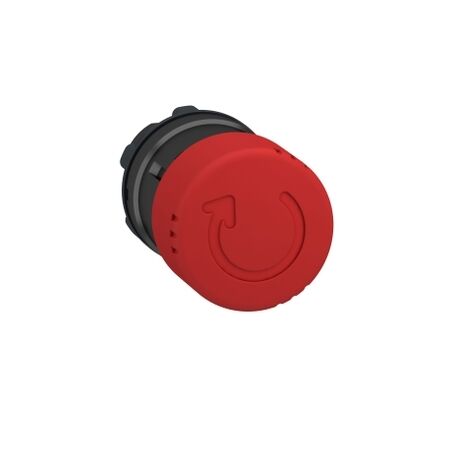

Emergency Stop Pushbutton Switch | Red Mushroom Head | IP65 Rated | Maintained Operation | @Pack of 1 | by Clipsal
The Emergency Stop Pushbutton Switch is designed for critical safety shutdowns in industrial settings. Featuring a highly visible red mushroom head and maintained operation, it ensures quick identification and reliable performance. With an IP65 rating, this durable switch is perfect for manufacturing plants, conveyor systems, and control panels, enhancing workplace safety and compliance with AS/NZS 60947 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Emergency Stop Pushbutton Switch | Red Mushroom Head | IP65 Rated | Maintained Operation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB4BS8347
Alternatively Known As: emergency stop button, E-stop switch, emergency pushbutton, Clipsal emergency stop, industrial emergency switch
Technical Specifications
- Type: Emergency stop pushbutton
- Operation: Maintained (latching)
- Actuator: Red mushroom head
- Contact configuration: 1NC (normally closed)
- Mounting diameter: 22mm
- Material: High-impact plastic and metal
- Ingress protection: IP65 (front face)
- Rated voltage: 600V AC max
- Rated current: 10A
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Robust emergency stop pushbutton for safety shutdown
- Highly visible red actuator for quick identification
- Maintained (latching) operation for emergency use
- Durable construction for industrial environments
- Easy installation in standard control panels
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with safety regulations and proper operation.
Applications
- Industrial machinery emergency stop
- Manufacturing plants
- Conveyor systems
- Control panels
- Commercial and public buildings for safety shutdown
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards
- Durable design minimizes replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHZB4BS8347 Emergency Stop Pushbutton Switch is available for immediate purchase. Ideal for industrial, commercial, and public safety applications.
