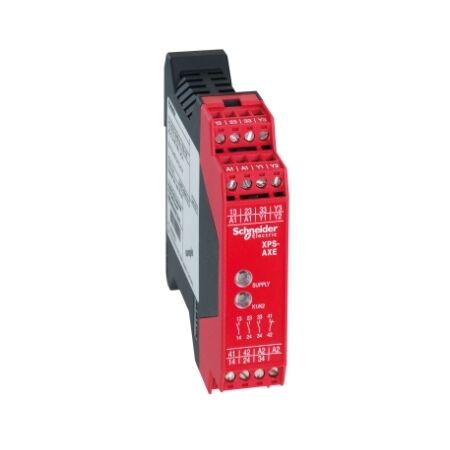

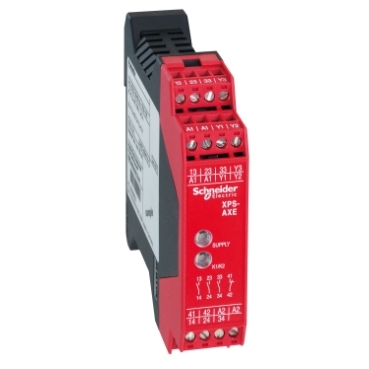

Emergency Stop Safety Module | 24V AC/DC | DIN Rail Mountable | LED Indicators | @Pack of 1 | by Clipsal
The Emergency Stop Safety Module operates on a 24V AC/DC supply, designed for emergency stop and switch monitoring in industrial machinery. With two safety outputs and one signaling output, it ensures safe shutdowns in hazardous situations. Ideal for manufacturing plants and automation systems, this compact module features LED indicators for easy status monitoring and diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Emergency Stop Safety Module | 24V AC/DC | DIN Rail Mountable | LED Indicators | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXPSAXE5120C
Alternatively Known As: Emergency Stop Safety Module, E-Stop Relay, Safety Relay 24V, XPSAXE5120C, Schneider Emergency Stop Module
Technical Specifications
- Supply Voltage: 24V AC/DC
- Input Type: Emergency stop and switch monitoring
- Mounting: DIN rail
- Output: 2 safety outputs, 1 signaling output
- Response Time: < 30 ms
- Operating Temperature: -25°C to +55°C
- Degree of Protection: IP20 (housing), IP40 (front panel)
- Standards: EN/IEC 60204-1, EN/ISO 13849-1, EN/IEC 60947-5-1
- Dimensions (H x L x W): 99mm x 114.5mm x 22.5mm
- Weight: 0.25 kg
Key Features
- Emergency stop and switch monitoring module
- Operates on 24V AC/DC supply voltage
- Ensures safe shutdown of machinery in hazardous situations
- DIN rail mountable for easy installation
- LED indicators for status and diagnostics
- Compact design for control panel integration
Professional Installation Requirements
- Installation must be performed by a qualified electrician or automation technician in accordance with local electrical safety regulations.
Applications
- Industrial machinery emergency stop circuits
- Safety monitoring in automation systems
- Manufacturing plants and process control
- Conveyor and machine safety interlocks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards
- Supports safe machine shutdown, minimizing potential for hazardous material release
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SAF.Mod.E.Stop.24V AC/DC Emergency Stop Module (SCHXPSAXE5120C) is available for immediate purchase. Ideal for industrial automation and machinery safety applications.
