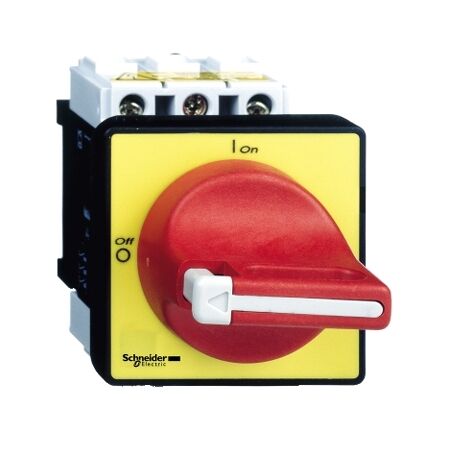

Emergency Stop Switch Disconnector | 25A Rotary Handle | IP65 Rated by Clipsal
Emergency stop switch disconnector with 25A capacity and rotary handle—ideal for industrial machinery control and safety systems. Built for high durability, with IP65 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys Mini-Vario, Emergency stop switch disconnector, 25A, on door
Brand: Clipsal
SKU: VCF0
Alternatively Known As: Emergency Stop Switch, Safety Disconnector, TeSys Vario Switch
Technical Specifications
- Rated operational voltage: 690 V AC 50/60 Hz
- Rated operational current: 14.5 A AC-23 at 400 V
- Rated operational power: 11 kW at 500 V (AC-23A)
- Making capacity: 250 A at 400 V AC-21A
- Breaking capacity: 200 A at 400 V (AC-21A)
- Rated short-circuit making capacity: 1 kA at 400 V
- Rated impulse withstand voltage: 8 kV
- Mechanical robustness: vibrations 10...150 Hz, shocks 11 ms
- Control type: rotary handle
- Dimensions (H x L x W): 74mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Emergency stop switch disconnector with rotary handle
- High mechanical and electrical durability with 100,000 cycles
- IP20 and IP65 rated for protection against dust and water
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and safety systems
- Commercial: Equipment requiring emergency stop functionality
Standards & Compliance
- Complies with IEC 60947-3 for safety and performance standards.
Environmental Benefits
- Halogen-free product
- PVC-free design
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys Mini-Vario Emergency Stop Switch Disconnector is available now for immediate purchase. Ideal for industrial applications requiring reliable safety control.
