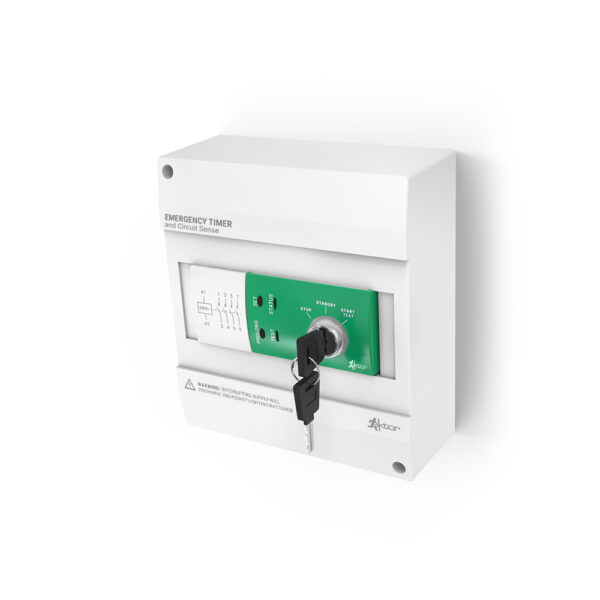

Emergency Test Switch Assembly Basic | Mechanical Operation | Surface Mount Installation | IP20 Rated | by Ektor
The Emergency Test Switch Assembly Basic is designed for reliable emergency lighting system testing in both commercial and residential buildings. Featuring a durable polycarbonate body and IP20 rating, this surface mount switch ensures easy access and operation. Ideal for compliance with safety standards, it supports effective emergency preparedness.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Test Switch, Emergency Lighting Test Switch, Emergency Switch Assembly
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (216Vac - 253Vac range in Australia)
- Compliance Standards: AS/NZS 61347.2.11, AS/NZS 61347.1, AS CISPR 15, AS/NZS 2293.1
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Mechanical operation for reliable emergency testing
- Surface mount installation for convenient placement
- Polycarbonate body material for durability
- IP20 rated for protection against solid objects
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper operation.
Applications
- Emergency lighting systems testing in commercial and residential buildings
- Surface mount installation for easy access and operation
Standards & Compliance
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Supports safety compliance reducing risk during emergencies
- Durable materials reduce replacement frequency and waste
Warranty Information
3 years return to base (RTB) warranty for commercial use.
Available Now
The Ektor Emergency Test Switch Assembly Basic is available now for immediate purchase. Ideal for emergency lighting system testing in commercial and residential buildings.
