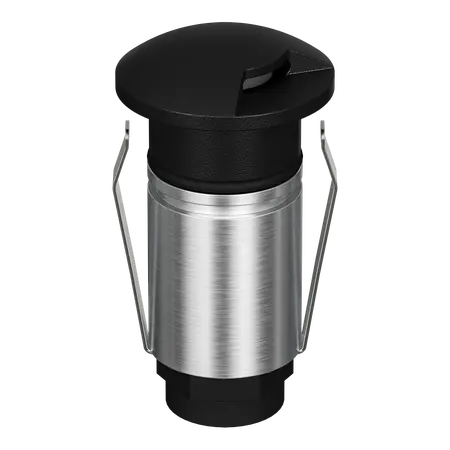

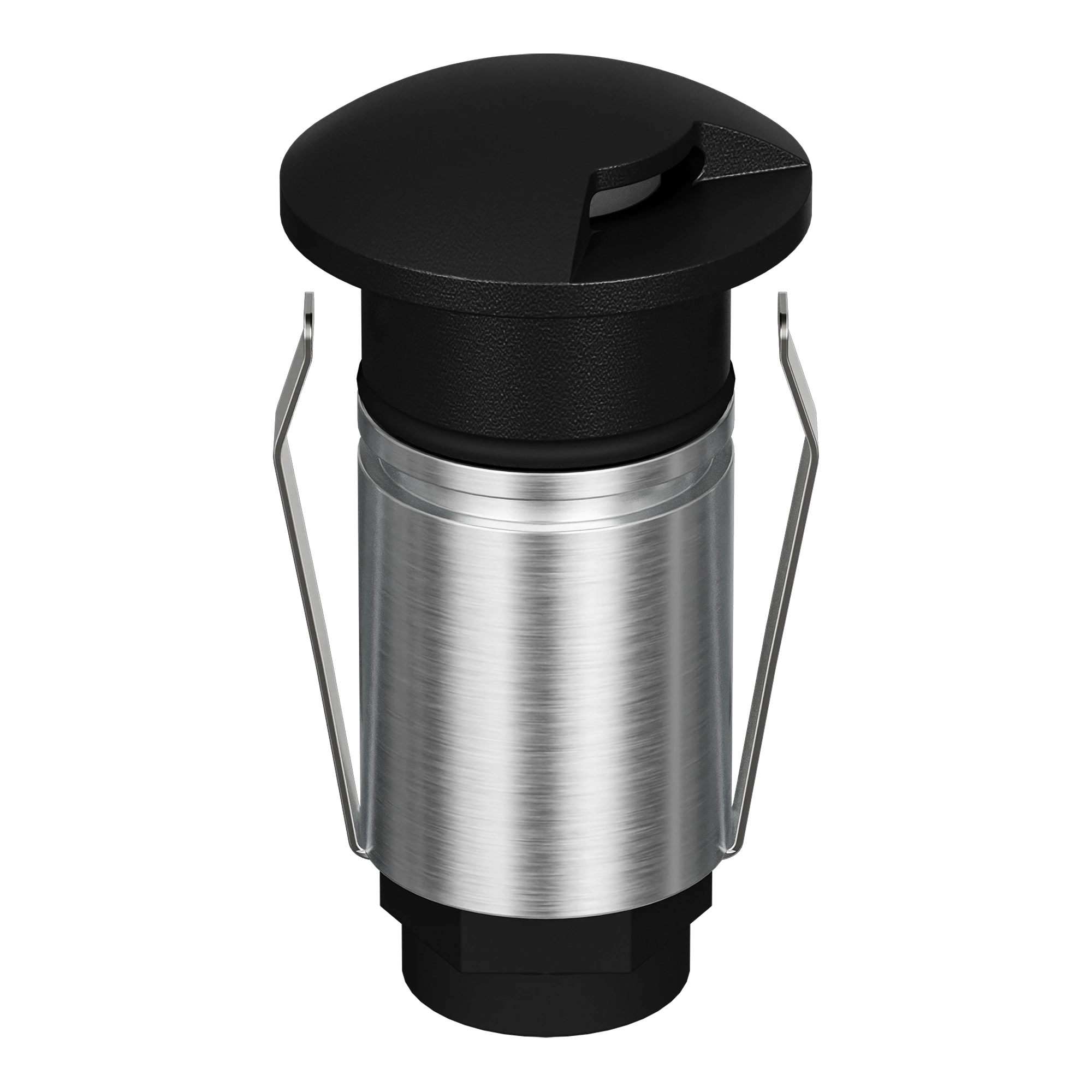

Emit Deck Light 25mm 1W Tri-Colour 12/24V 1-Way Black Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 1-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25-TRIO-BLK 1-Way Inground Light, 25mm LED Decklight, Mini Recessed Step Light, Tri-Colour Inground Light
Technical Specifications
- Input Voltage: 12/24V DC constant voltage
- Power: 1W
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Lumen Output: 1.3 lm at 3000K, 4000K and 5500K for 1-way fascia
- LED Type: CREE
- CRI: ≥90
- IP Rating: IP67
- IK Rating: IK10
- Dimmable: No
- Rated Lifespan: 50,000 hours
- Cutout: Ø19mm without cannister; Ø24mm with cannister
- Driver Requirement: Requires a 12V or 24V DC constant-voltage LED driver, wired in parallel
- Drive-Over Rating: Up to 2,000kg
- Finish: Black
- Fascia: 1-way
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.3 kg
Key Features
- Compact 25mm mini inground and deck light design
- Tri-colour selection between warm white, neutral white and white
- 1-way fascia for directional light distribution
- 36° beam angle supplied as standard
- IP67 protection for suitable outdoor applications
- IK10 impact resistance rating
- CREE LED with CRI of at least 90
- Optional narrow and wide beam lenses, honeycomb and opal diffusers available
- Water-stop cable joint accessory available
- Driver required and not included
Professional Installation Requirements
- Installation and connection of the 12/24V DC LED driver and outdoor low-voltage lighting circuit should be carried out by a licensed electrician in accordance with the manufacturer's installation instructions and applicable wiring requirements, including AS/NZS 3000 where relevant.
Applications
- Residential deck lighting
- Outdoor steps and stairways
- Pathway and garden feature lighting
- Architectural and landscape feature lighting
- Low-voltage inground lighting installations
- Directional marker lighting for pedestrian areas
Standards & Compliance
- AS/NZS 60598.1:2017 — applicable general requirements and tests for luminaires; product-specific compliance declaration should be confirmed with Domus Lighting
- AS/NZS 3000 — relevant requirements for the associated electrical installation and LED driver wiring
Environmental Benefits
- Low 1W LED power consumption supports reduced operating energy use
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- LED light source provides efficient illumination compared with higher-wattage conventional light sources
- Low-voltage DC operation can be integrated with efficient constant-voltage LED driver systems
Warranty Information
Domus Lighting's current warranty statement provides a 3-year replacement warranty for residential exterior LED deck and inground lights and a 12-month replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
