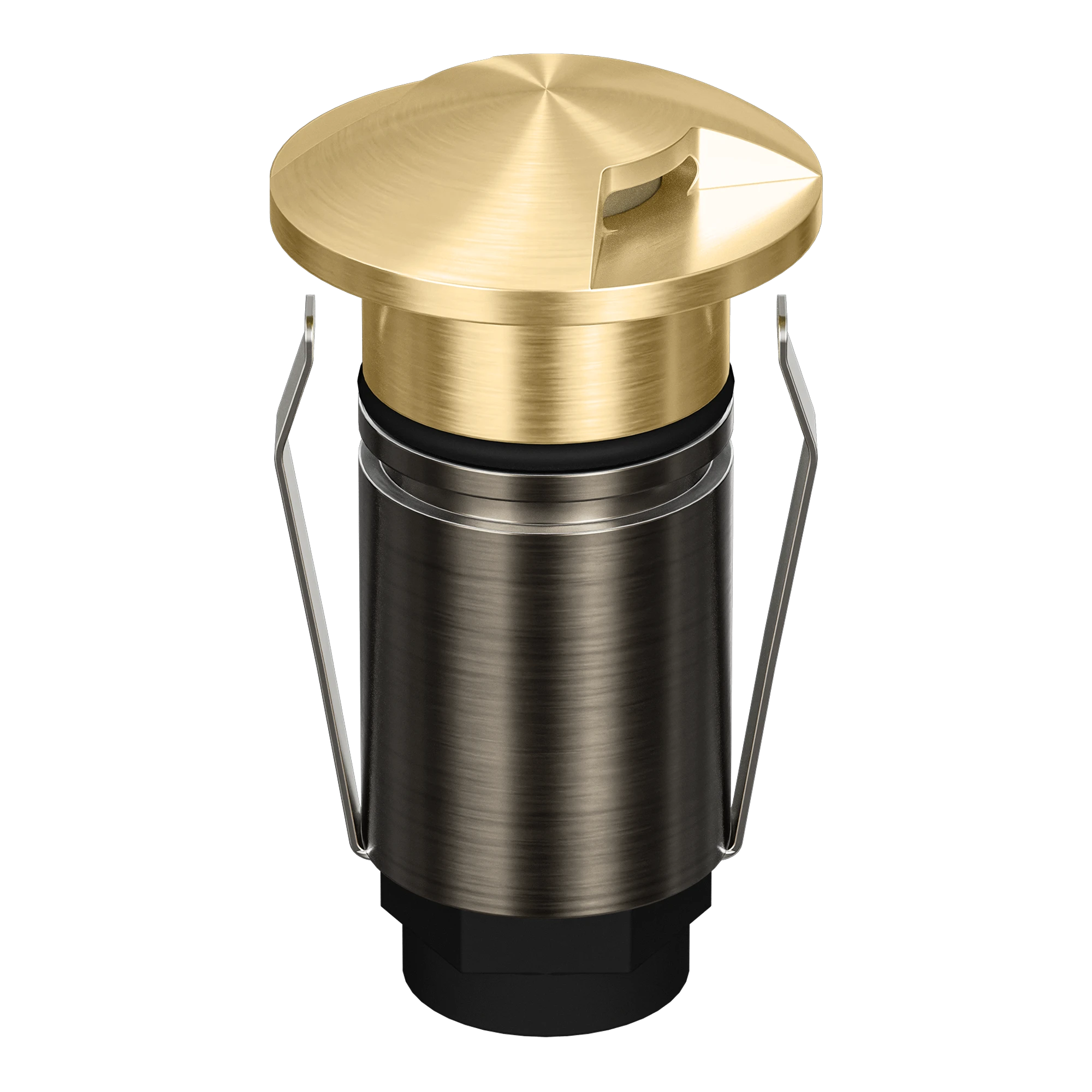

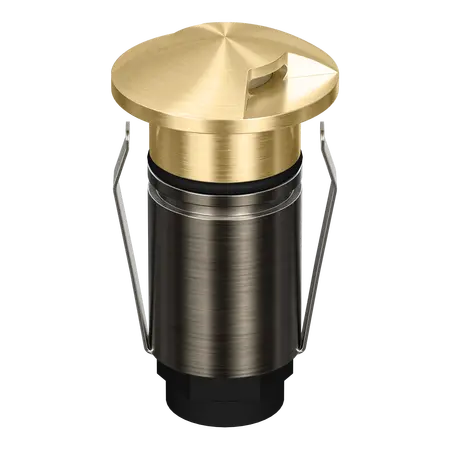

Emit Deck Light 25mm 1W Tri-Colour 12/24V 2-Way Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 2-way fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25 2-Way Inground Light, Domus 25mm LED Deck Light, Brushed Brass Mini Inground Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 1W
- Light Source: CREE LED
- Colour Temperature: Selectable 3000K, 4000K or 5500K
- Colour Rendering Index: ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Lumen Output: Approximately 1.2 lm for the 2-way fascia
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: 19mm without cannister; 24mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Material/Finish: Brass fascia and metalware
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.3 kg
Key Features
- Selectable tri-colour LED output
- Two-way fascia for directional feature lighting
- Compact 25mm mini inground design
- IP67-rated construction for outdoor and inground applications
- IK10 impact resistance
- 36° beam angle supplied as standard
- Compatible with 12V and 24V DC constant-voltage drivers
- Optional narrow, wide, honeycomb and frosted accessories available
Professional Installation Requirements
- Installation should be completed by a licensed electrician using a compatible 12V or 24V DC constant-voltage LED driver. Install and wire in accordance with AS/NZS 3000, the manufacturer's instructions and the driver's requirements.
Applications
- Deck and step lighting
- Landscape and garden feature lighting
- Architectural feature illumination
- Pathway and outdoor area lighting
- Miniature inground lighting installations
Standards & Compliance
- AS/NZS 3000: Electrical installations – applicable wiring and installation requirements
- AS/NZS 60598.1:2025: Luminaires – general requirements and tests, applicable to luminaire safety assessment
Environmental Benefits
- Low 1W power consumption helps reduce operational energy use
- 50,000-hour LED lifespan can reduce replacement frequency and material waste
- Brass components are recyclable at end of service life
- Selectable colour temperature supports appropriate lighting levels and may help avoid unnecessary over-lighting
Warranty Information
Backed by a 5-year replacement warranty as stated on the EMIT-25 product datasheet. Warranty eligibility is subject to Domus Lighting terms, including installation by a licensed electrician and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
