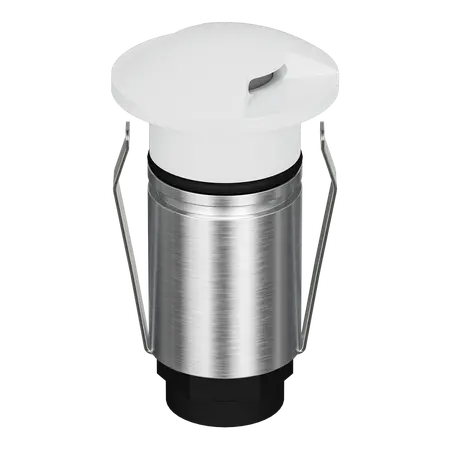

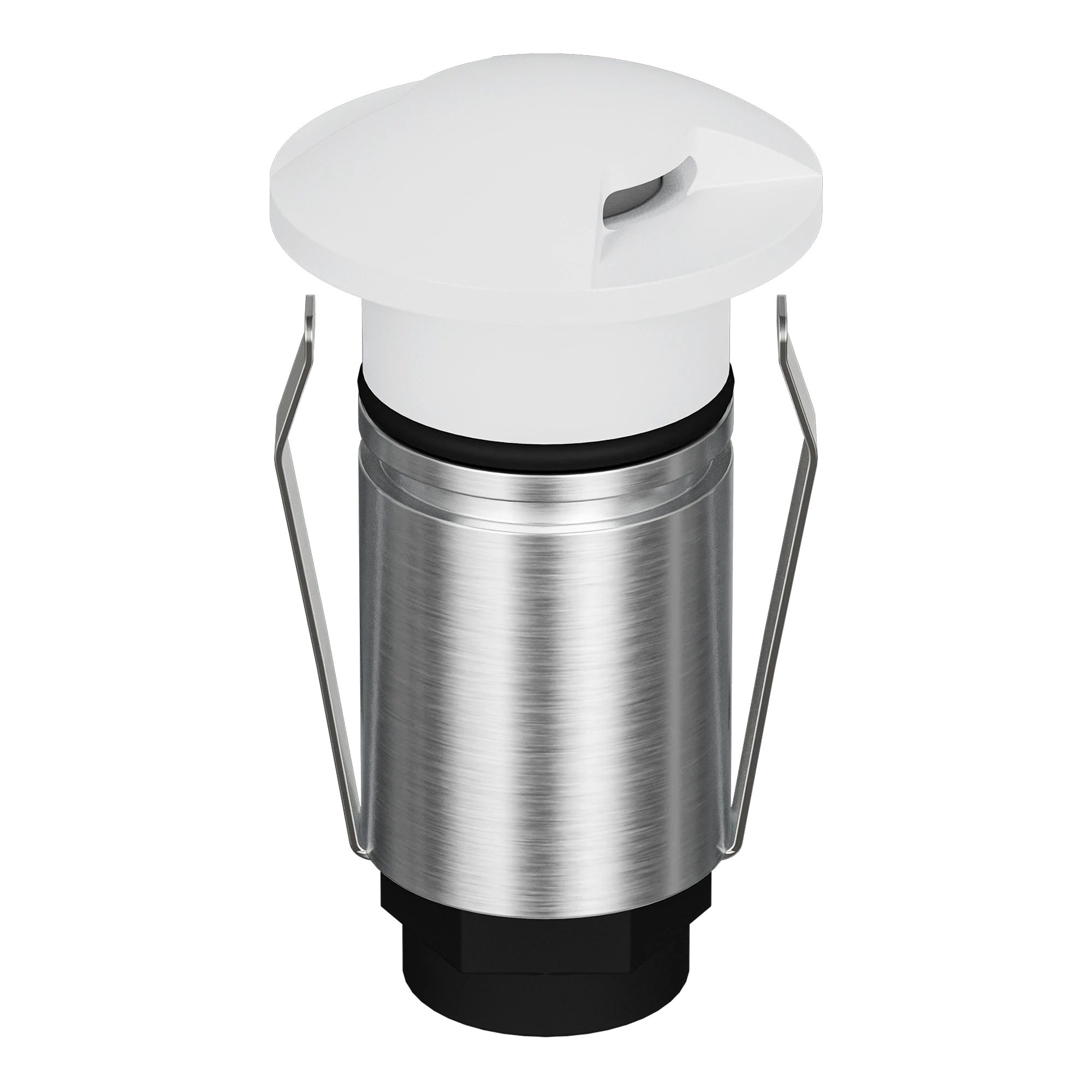

Emit Deck Light 25mm 1W Tri-Colour 12/24V 2-Way White Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 2-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-TRIO-WHT, Emit 25 2-Way Inground Light, Mini LED Deck Light, Recessed Inground Light
Technical Specifications
- Light Source: 1W CREE LED
- Variant: Tri-colour selectable
- Colour Temperature: 3000K, 4000K or 5500K
- Input Voltage: 12/24V DC
- Driver Type: 12V or 24V constant-voltage LED driver
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Output: 1.2 lm at 3000K, 4000K and 5500K
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Rating: IK10
- Load Rating: 1500 kg drive-over
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Cutout: 19 mm without cannister; 24 mm with cannister
- Wiring: Connect fittings in parallel
- Finish: White fascia
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25 mm diameter mini inground and deck light
- Two-way fascia design for directional feature lighting
- Selectable warm white, neutral white and white colour temperatures
- Suitable for 12V and 24V DC constant-voltage systems
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1500 kg drive-over load rating
- 36° beam angle supplied as standard
- Optional narrow and wide beam lenses, honeycomb and opal diffuser accessories
- Long-life CREE LED source with 50,000-hour rated lifespan
Professional Installation Requirements
- Installation requires a compatible 12V or 24V DC constant-voltage LED driver, parallel wiring and suitable waterproof cable joints. Electrical connection and installation should be completed by a licensed electrician in accordance with applicable wiring and luminaire requirements.
Applications
- Residential deck and pathway lighting
- Landscape and garden feature lighting
- Outdoor stair and step illumination
- Architectural feature lighting
- Inground lighting for pedestrian areas
- Drive-over lighting where the 1500 kg load rating is suitable
Standards & Compliance
- AS/NZS 60598.1 for general luminaire safety requirements
- AS/NZS 60598.2.1 for fixed general-purpose luminaires, where applicable to the completed installation
Environmental Benefits
- Low 1W power consumption helps reduce operating energy use
- 50,000-hour LED lifespan can reduce replacement frequency and product waste
- Low-voltage 12/24V DC operation supports efficient extra-low-voltage lighting systems
- Durable IP67 and IK10 construction can extend service life in outdoor applications
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-25 product range. Warranty eligibility requires installation by a licensed electrician and installation in accordance with Domus guidelines; commercial and residential warranty conditions may differ.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
