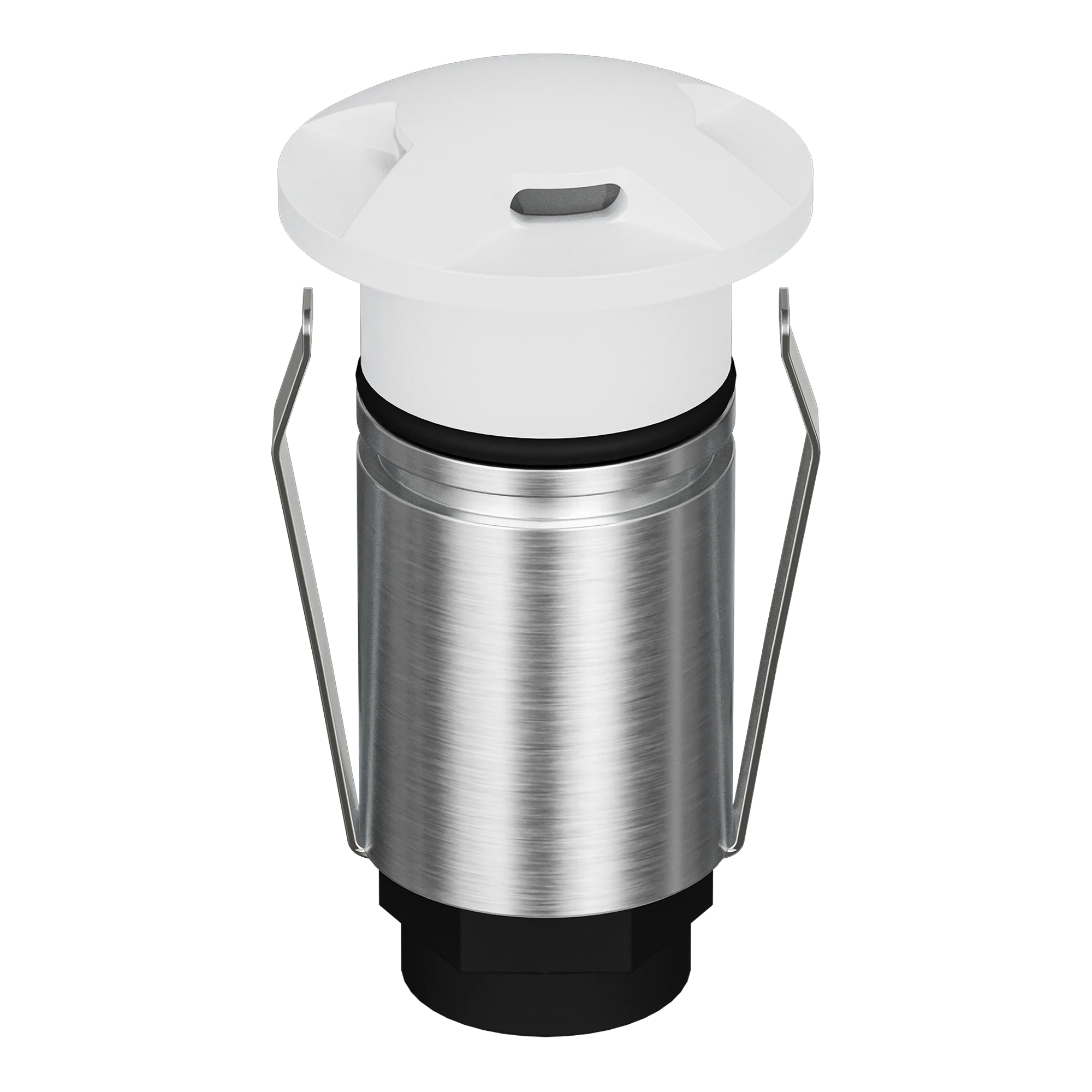

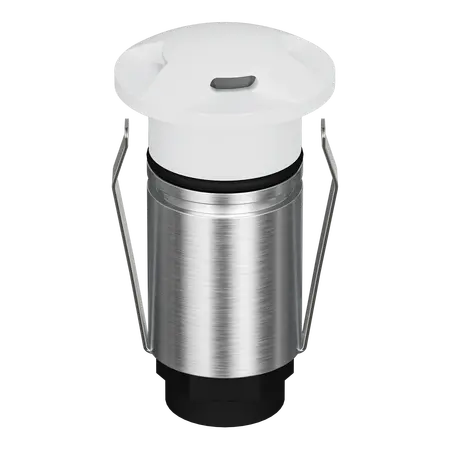

Emit Deck Light 25mm 1W Tri-Colour 12/24V 3-Way White Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 3-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25 TRIO 3-Way Inground Light, Mini LED Deck Light, Recessed LED Marker Light
Technical Specifications
- Input Voltage: 12/24V DC constant voltage
- Power: 1W
- Light Source: CREE LED
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: ≥90
- Luminous Output: 2.2lm at 3000K, 4000K and 5500K
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: Non-dimmable
- Rated Lifespan: 50,000 hours
- Cutout: Ø19mm without cannister; Ø24mm with cannister
- Driver Requirement: 12V or 24V constant-voltage LED driver, wired in parallel
- Fascia: 3-way white
- Warranty: 5-year replacement warranty
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Tri-colour selectable output with warm white, neutral white and white settings
- Compact 25mm deck light for discreet feature and marker lighting
- Three-way fascia directs light across paving, decking or architectural features
- IP67-rated construction for suitable outdoor and inground applications
- IK10 impact rating for enhanced mechanical durability
- 36° beam angle supplied as standard
- Compatible with 12V and 24V DC constant-voltage LED drivers
- Optional narrow, wide, honeycomb and frosted diffuser accessories available
Professional Installation Requirements
- Installation should be performed by a licensed electrician using a compatible 12V or 24V constant-voltage LED driver. Connect fittings in parallel and follow the manufacturer's installation instructions. Domus warranty eligibility requires installation by a licensed electrician.
Applications
- Residential and commercial deck lighting
- Pathway and garden feature lighting
- Architectural feature and accent lighting
- Inground marker lighting
- Paving and landscape lighting
- Outdoor stairs and entertaining areas
Standards & Compliance
- AS/NZS 60598.1:2017, Luminaires – Part 1: General requirements and tests, as the applicable general luminaire safety standard
- AS/NZS 60598.2.13:2013, Particular requirements for ground-recessed luminaires, as the applicable product-category standard
Environmental Benefits
- Low 1W power consumption supports reduced energy use compared with higher-wattage conventional marker lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Tri-colour selection allows the required colour temperature to be chosen without replacing the fitting
Warranty Information
Domus specifies a 5-year replacement warranty for the EMIT-25 series. Warranty claims require proof of purchase, installation by a licensed electrician and installation in accordance with Domus guidelines. The warranty is subject to the applicable Domus Warranty Statement and Australian Consumer Law.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
