Trade Discount 25%

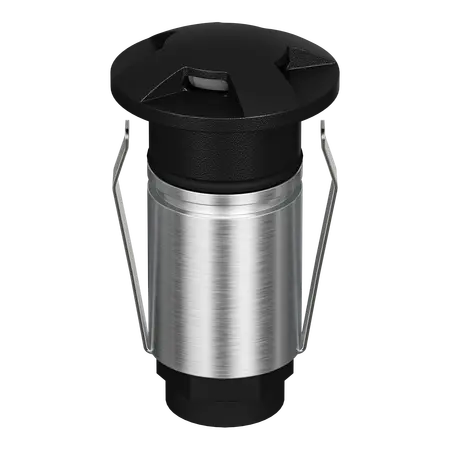

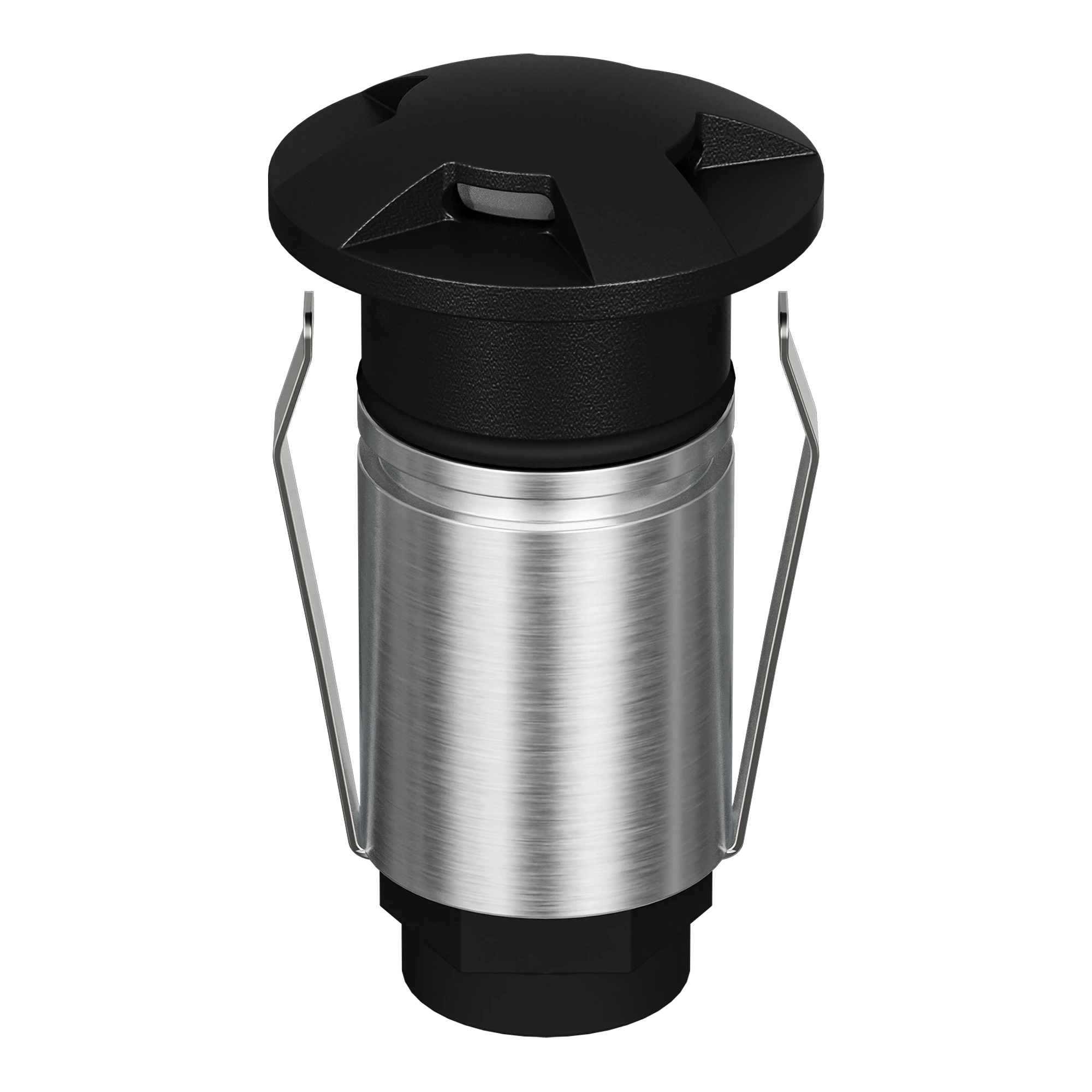

Emit Deck Light 25mm 1W Tri-Colour 12/24V 4-Way Black Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 4-way fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-TRIO-BLK, 4-Way Inground Light, Mini LED Deck Light, Tri-Colour Inground Light
Technical Specifications
- Product Code: EMIT-25-TRIO-BLK
- Light Type: Tri-colour LED inground and deck light
- Wattage: 1W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Luminous Output at 4000K: 3.1 lm for 4-way fascia
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cut-Out: Ø19mm without cannister; Ø24mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Finish: Black
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm diameter design for discreet deck and inground installations
- Four-way fascia distributes light in four directions
- Selectable warm white, neutral white and cool white colour temperatures
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating suitable for walkable areas
- 36° beam angle supplied as standard
- Optional beam angle lenses, honeycomb and opal diffuser accessories
- Requires a separate compatible 12/24V DC LED driver
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions. Ensure the selected driver and connections are suitable for outdoor or inground use.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair marker lighting
- Architectural accent lighting
- Inground lighting for outdoor paved areas
- Low-voltage outdoor lighting installations
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires
- AS/NZS 60598.2.23: Particular requirements for extra-low-voltage lighting systems
Environmental Benefits
- Low 1W power consumption helps reduce energy use compared with higher-wattage feature lighting
- 50,000-hour LED lifespan can reduce replacement frequency and associated waste
- IP67 and IK10 construction supports extended service life in outdoor applications
- Low-voltage 12/24V DC operation can be integrated with efficient LED driver systems
Warranty Information
The product page states a 5-year replacement warranty. Domus Lighting's current general warranty statement lists exterior deck and inground lights as 3-year replacement for residential applications and 12-month replacement for commercial applications; confirm the applicable warranty at purchase. Warranty claims require installation by a licensed electrician and installation in accordance with Domus guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting retailers, wholesalers and distributors.
