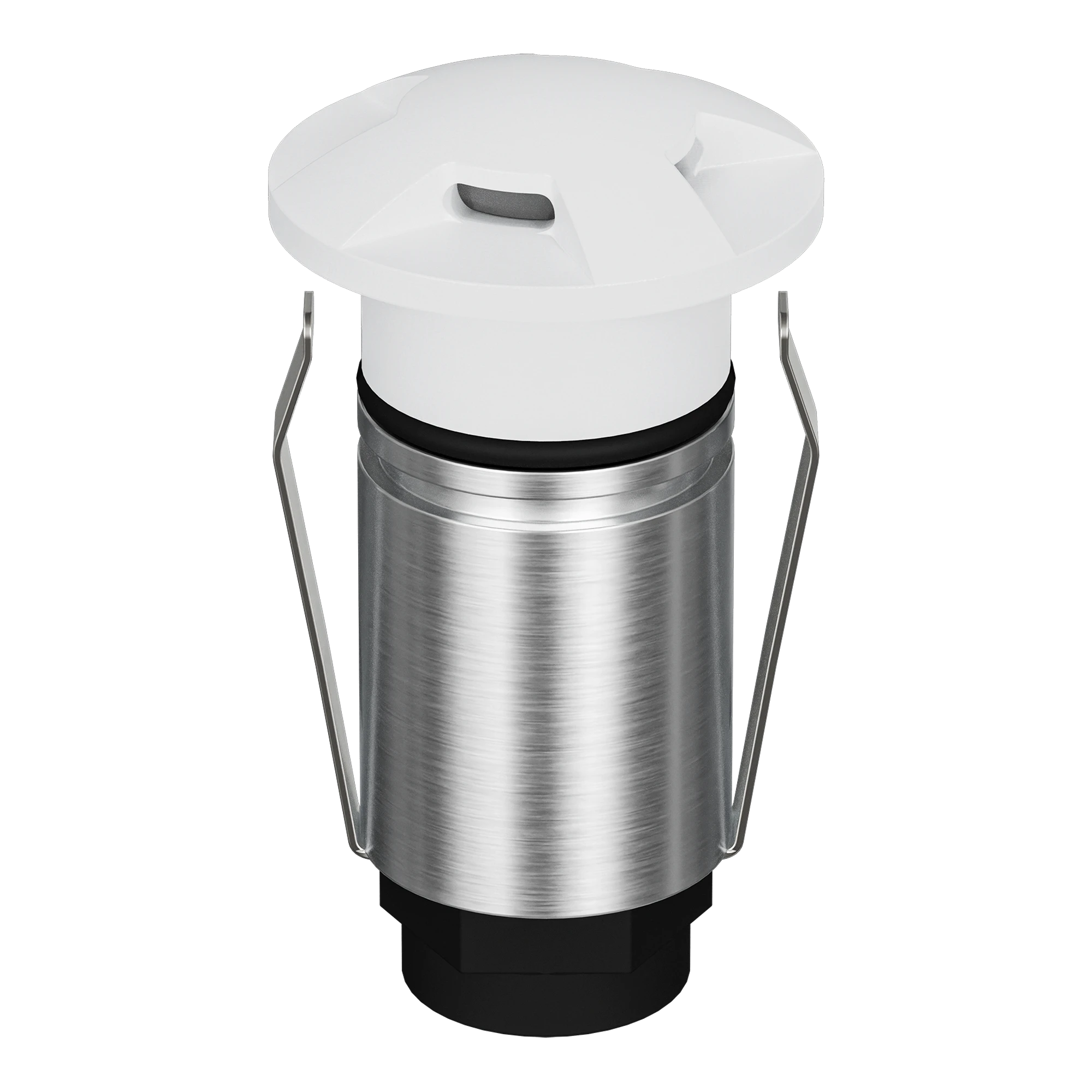

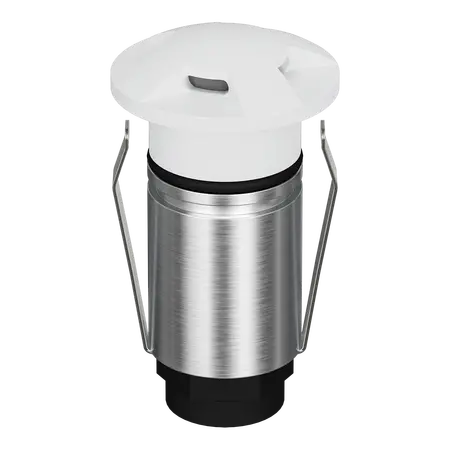

Emit Deck Light 25mm 1W Tri-Colour 12/24V 4-Way White Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 4-way fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-TRIO-WHT, Emit-25 4-Way Inground Light, Mini LED Inground Light, LED Deck Light
Technical Specifications
- Variant: TRIO selectable tri-colour
- Finish Colour: White
- Fascia Style: 4-way
- Power: 1W LED
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Output: 3.1 lm at 3000K, 4000K and 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: Ø19mm without cannister; Ø24mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Driver: Not included
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm recessed deck and inground light
- Four-way fascia distributes light in four directions
- Selectable warm white, neutral white or cool white colour temperature
- 36° standard beam angle for directional feature lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating
- Low 1W power consumption
- Water-stop cable joint helps prevent water syphoning into the fitting
- Optional beam lenses, honeycomb and opal diffuser accessories available
Professional Installation Requirements
- Installation should be completed by a suitably qualified electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Use only a compatible 12V or 24V DC constant-voltage LED driver, wired in parallel. Domus warranty eligibility requires installation by a licensed electrician.
Applications
- Residential and commercial deck lighting
- Inground pathway and garden lighting
- Stair and step illumination
- Landscape feature lighting
- Architectural accent lighting
- Outdoor entertaining areas
Standards & Compliance
- AS/NZS 60598.1:2025 - Luminaires, general requirements and tests, applicable to the luminaire
- AS/NZS 60598.2.2:2016 - Particular requirements for recessed luminaires, applicable to the recessed installation
- AS/NZS 3000:2018 - Wiring Rules, applicable to the electrical installation and connected driver
Environmental Benefits
- Low 1W LED power consumption can reduce operating energy compared with higher-wattage feature lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- LED technology provides efficient, low-voltage feature illumination when paired with an efficient constant-voltage driver
Warranty Information
5-year replacement warranty as stated on the Domus Emit-25 product page. Warranty claims require proof of purchase, licensed-electrician installation and installation in accordance with Domus guidelines; Australian Consumer Law rights also apply.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
