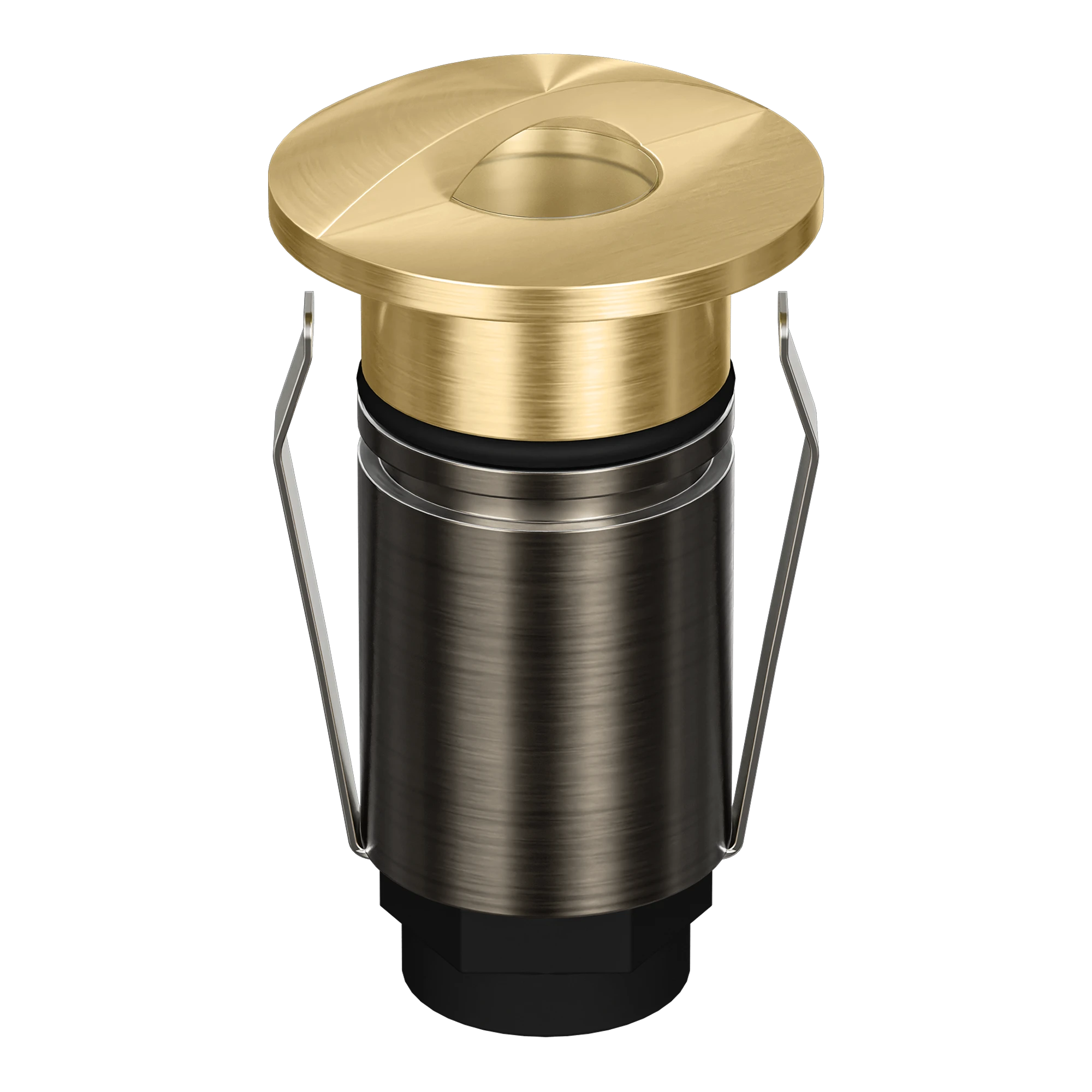

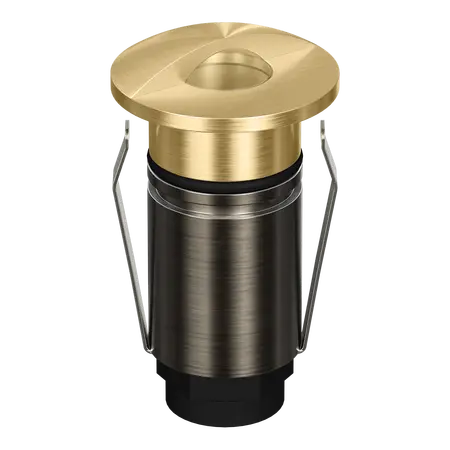

Emit Deck Light 25mm 1W Tri-Colour 12/24V Eyelid Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-25 Eyelid Inground Light, Domus 25mm LED Deck Light, Tri-Colour Recessed Step Light
Technical Specifications
- Light Type: Mini inground and deck light
- Finish: Brass
- Fascia Style: Eyelid
- Power: 1W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K and 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Flux: 46 lm at 3000K, 51 lm at 4000K, 55 lm at 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- Rated Lifespan: 50,000 hours
- Load Rating: 1500 kg drive-over
- Cut-out: 19 mm without canister; 24 mm with canister
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.12 kg
Key Features
- Compact 25mm diameter design for discreet deck, step and inground lighting
- Eyelid fascia directs light and reduces unwanted glare
- Selectable 3000K warm white, 4000K neutral white or 5500K white output
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1500 kg drive-over load rating
- Brass finish suitable for landscape and architectural lighting
- Optional beam lenses, honeycomb and opal diffuser accessories available
Professional Installation Requirements
- Installation should be completed by a licensed electrician using a compatible 12/24V DC constant-voltage LED driver. Wiring must be installed in parallel and comply with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
- Deck lighting
- Step and stair lighting
- Landscape lighting
- Pathway lighting
- Architectural feature lighting
- Inground outdoor lighting
Standards & Compliance
- AS/NZS 60598.1:2025 - applicable general safety requirements for luminaires; manufacturer compliance not independently verified
- AS/NZS 3000 - applicable wiring and extra-low-voltage installation requirements
Environmental Benefits
- LED technology provides low power consumption at 1W
- Rated 50,000-hour lifespan can reduce replacement frequency and product waste
- Brass components can be recycled at end of service life
- Selectable colour temperature supports targeted lighting without unnecessary over-lighting
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-25-TRIO-EYELID. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
