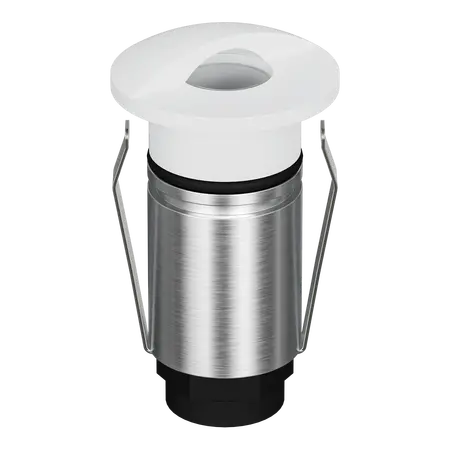

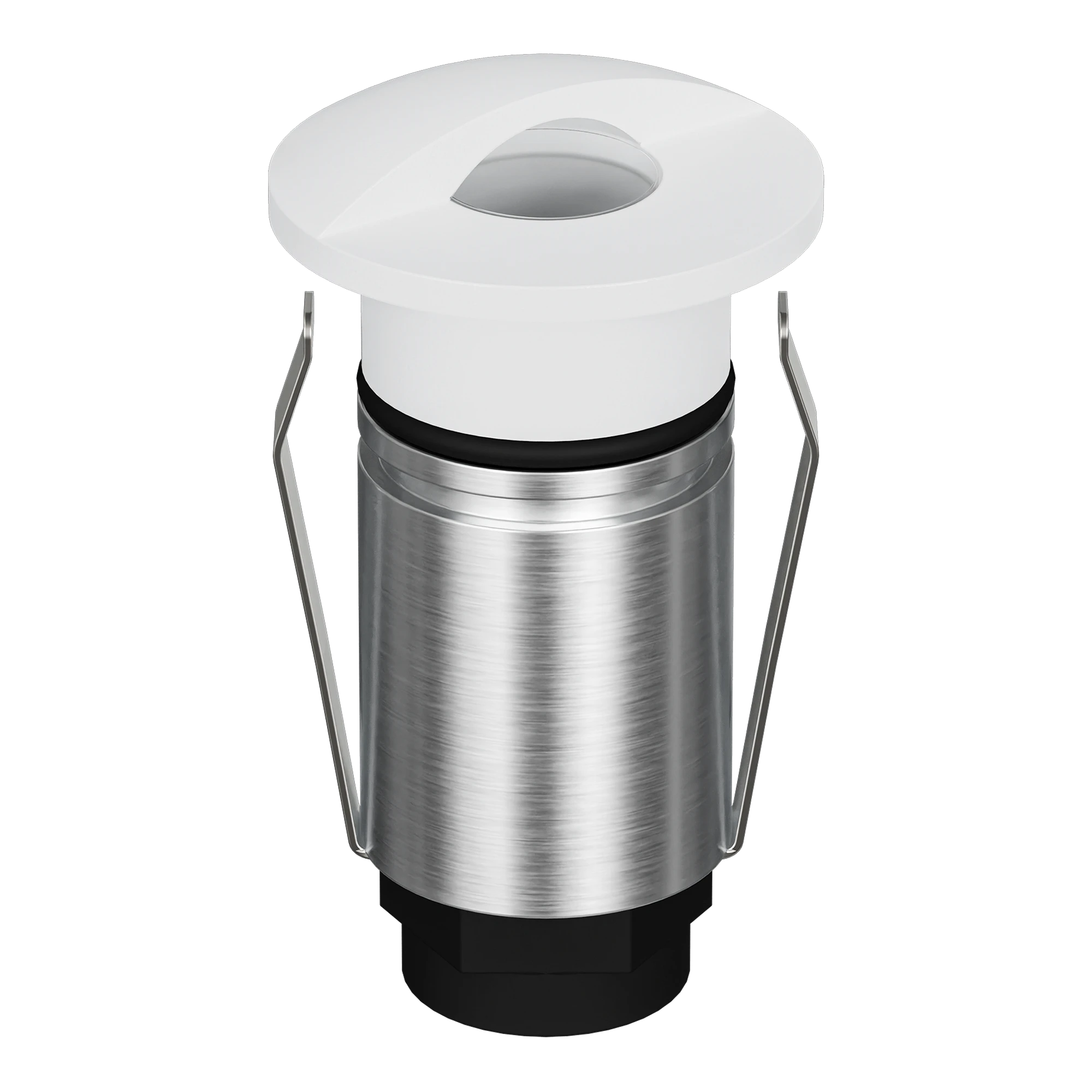

Emit Deck Light 25mm 1W Tri-Colour 12/24V Eyelid White Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, eyelid fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 25 Eyelid Deck Light, EMIT-25-TRIO-WHT, Mini LED Inground Light, Tri-Colour LED Decklight
Technical Specifications
- Variant: TRIO tri-colour selectable
- Finish Colour: White
- Style: Eyelid fascia
- Wattage: 1W
- Input Voltage: 12/24V DC constant voltage
- Light Output: 46 lm at 3000K, 51 lm at 4000K, 55 lm at 5500K
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses available
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- IP Rating: IP67
- Impact Rating: IK10
- Dimming: No
- Rated Lifespan: 50,000 hours
- Cutout: 19mm without canister or 24mm with canister
- Load Rating: 1500kg drive-over
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Driver: Not included
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm diameter mini inground and deck light
- Eyelid fascia provides directional grazing illumination
- Three selectable white colour temperatures in one fitting
- Suitable for 12V or 24V DC constant-voltage systems
- IP67-rated for outdoor and inground applications
- IK10 impact resistance and 1500kg drive-over load rating
- 36° standard beam angle with optional lens and diffuser accessories
- White finish for coordinated residential and landscape installations
- CREE LED with CRI of at least 90
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation should be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, connect fittings in parallel, and follow the manufacturer's installation instructions and applicable Australian electrical requirements.
Applications
- Deck and patio lighting
- Landscape and garden lighting
- Pathway and stair lighting
- Inground feature lighting
- Architectural accent lighting
- Drive-over outdoor lighting installations
Standards & Compliance
- AS/NZS 60598.1 is the applicable general luminaire safety standard for this type of lighting equipment; the product-specific compliance declaration is not published on the referenced product page.
- RCM marking is shown in the manufacturer's product documentation.
Environmental Benefits
- Low 1W power consumption helps reduce operating energy use compared with higher-wattage feature lighting.
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste.
- LED technology provides efficient directional illumination for landscape and architectural applications.
Warranty Information
5-year replacement warranty as stated by Domus Lighting, subject to the manufacturer's warranty conditions. Warranty claims require licensed-electrician installation, proof of purchase and installation in accordance with Domus guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
