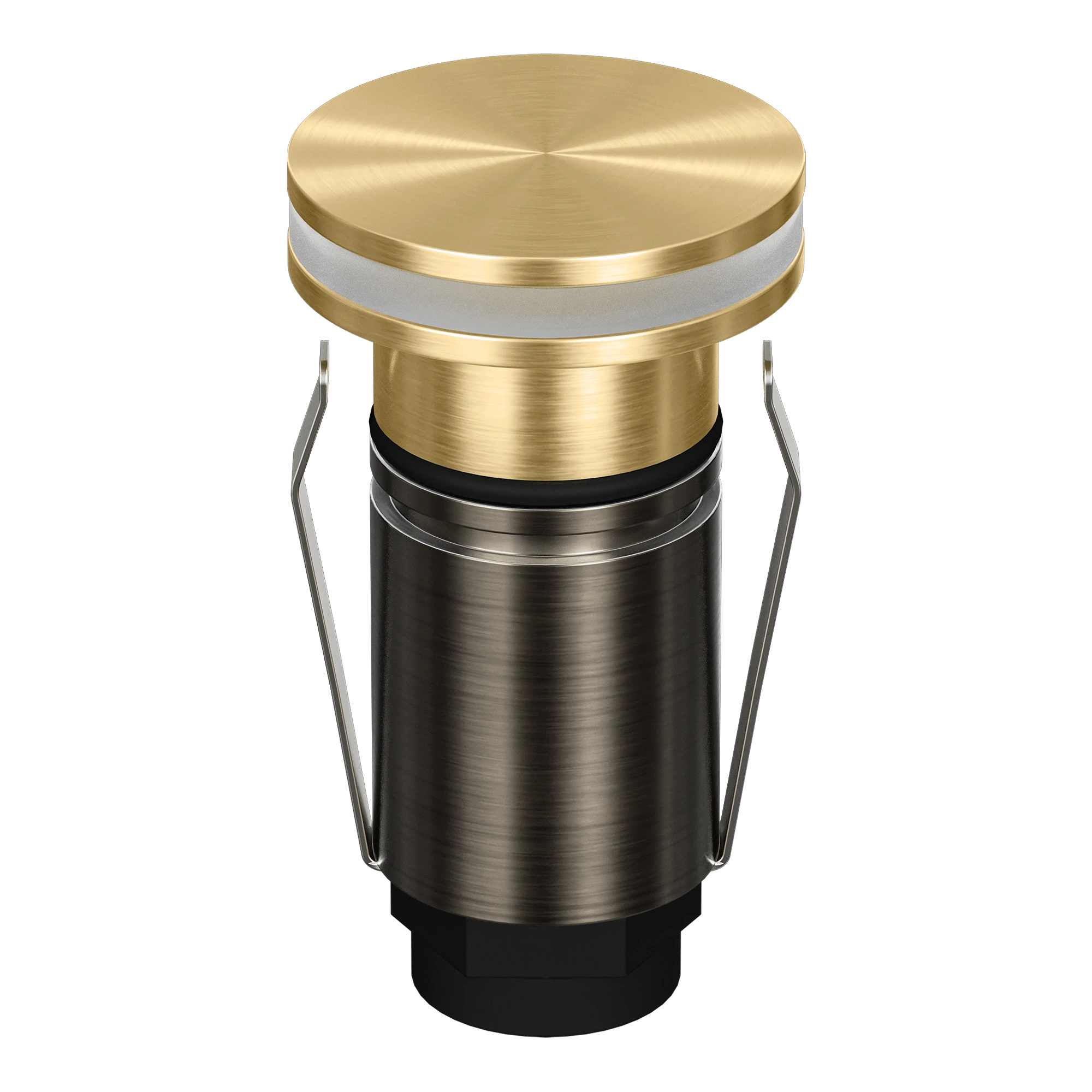

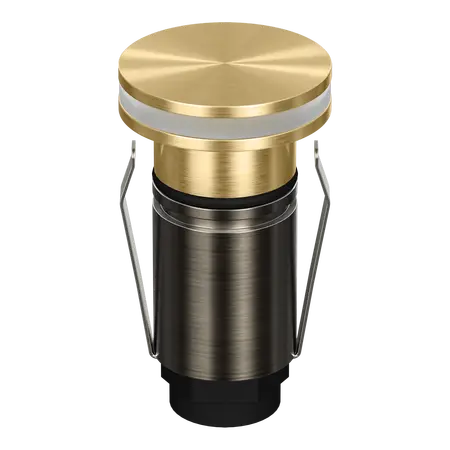

Emit Deck Light 25mm 1W Tri-Colour 12/24V Halo Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, halo fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-HALO, Domus Emit 25 Halo Inground Light, Tri-Colour LED Deck Light, Brass Inground Light
Technical Specifications
- Light Type: Mini inground and deck light
- Variant: Tri-colour selectable
- Finish: Brass
- Fascia Style: Halo
- Power: 1W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Luminous Flux: 14 lm at 3000K, 4000K and 5500K
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout Diameter: 19mm without canister or 24mm with canister
- Load Rating: Up to 1500kg drive-over
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.18 kg
Key Features
- Compact 25mm diameter design for discreet deck and inground installations
- Halo fascia with brass finish
- Selectable 3000K warm white, 4000K neutral white and 5500K white output
- 36° beam angle supplied as standard
- IP67-rated construction for outdoor applications
- IK10 impact rating and drive-over suitability
- Optional narrow and wide beam lenses, honeycomb and opal diffuser accessories
- Requires a compatible 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Use only a compatible 12/24V DC constant-voltage LED driver and ensure all outdoor cable joints and connections maintain the required IP protection.
Applications
- Residential deck and step lighting
- Garden paths and landscape features
- Outdoor stairs and walkways
- Architectural feature lighting
- Drive-over inground lighting where the specified load rating is suitable
Standards & Compliance
- AS/NZS 60598.1:2017 for general luminaire safety requirements
- AS/NZS 3000:2018 for electrical installation and wiring requirements
Environmental Benefits
- Low 1W LED power consumption supports reduced operating energy use
- Long 50,000-hour LED lifespan can reduce replacement frequency and product waste
- Brass components are recyclable at end of service life
- Selectable colour temperature allows suitable illumination without replacing the fitting
Warranty Information
5-year replacement warranty as stated on the Domus EMIT-25 product documentation. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
