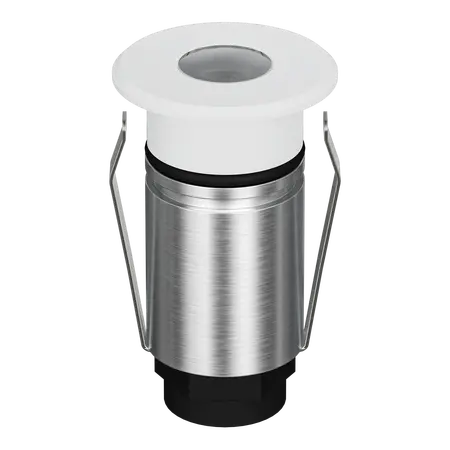

Emit Deck Light 25mm 1W Tri-Colour 12/24V Round Open White Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, round open fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit 25 Round Open Deck Light, Emit-25 Tri-Colour Inground Light, 25mm LED Inground Light
Technical Specifications
- Model: EMIT-25-TRIO-WHT
- Variant: Tri-Colour
- Finish: White
- Light Source: CREE LED
- Power: 1W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumens: 46 lm at 3000K, 51 lm at 4000K, 55 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- Rated Lifespan: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Cutout: 19 mm without cannister; 24 mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 39mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25mm round open fascia
- Selectable warm white, neutral white and white colour temperatures
- Suitable for deck, pathway, stair, landscape and architectural lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating
- Drive-over rated to 1,500 kg
- Optional beam lenses, honeycomb, linear lens and opal diffuser accessories
- Non-dimmable LED fitting
Professional Installation Requirements
- Installation should be completed by a licensed electrician using a compatible 12V or 24V DC constant-voltage LED driver. Follow the manufacturer's wiring and installation instructions, including correct parallel wiring and waterproof cable-joint practices.
Applications
- Residential and commercial decking
- Pathway and stair lighting
- Landscape and garden lighting
- Architectural feature lighting
- Inground outdoor lighting
- Drive-over lighting where the 1,500 kg load rating is suitable
Standards & Compliance
- AS/NZS 60598.1:2017 – applicable general safety requirements for luminaires
- AS/NZS 3000 – applicable wiring and installation requirements for the associated electrical installation
Environmental Benefits
- Low 1W power consumption helps reduce operating energy use compared with higher-wattage feature lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- LED technology avoids mercury-containing fluorescent light sources
- Low-voltage DC operation is suitable for efficient extra-low-voltage lighting systems
Warranty Information
The Domus product page states a 5-year replacement warranty for the EMIT-25 series. Domus' current warranty statement separately lists exterior deck and inground lights as covered for 3 years for residential applications and 12 months for commercial applications; confirm the applicable term for this variant at purchase. Warranty claims require licensed-electrician installation and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
