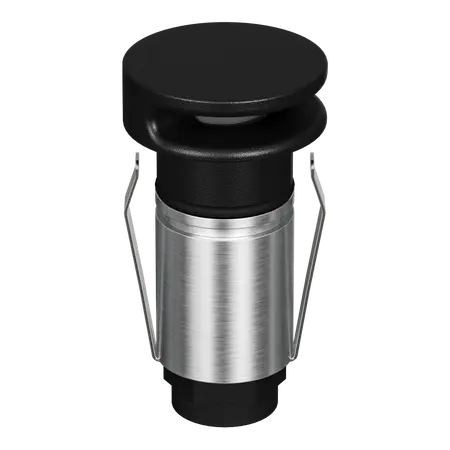

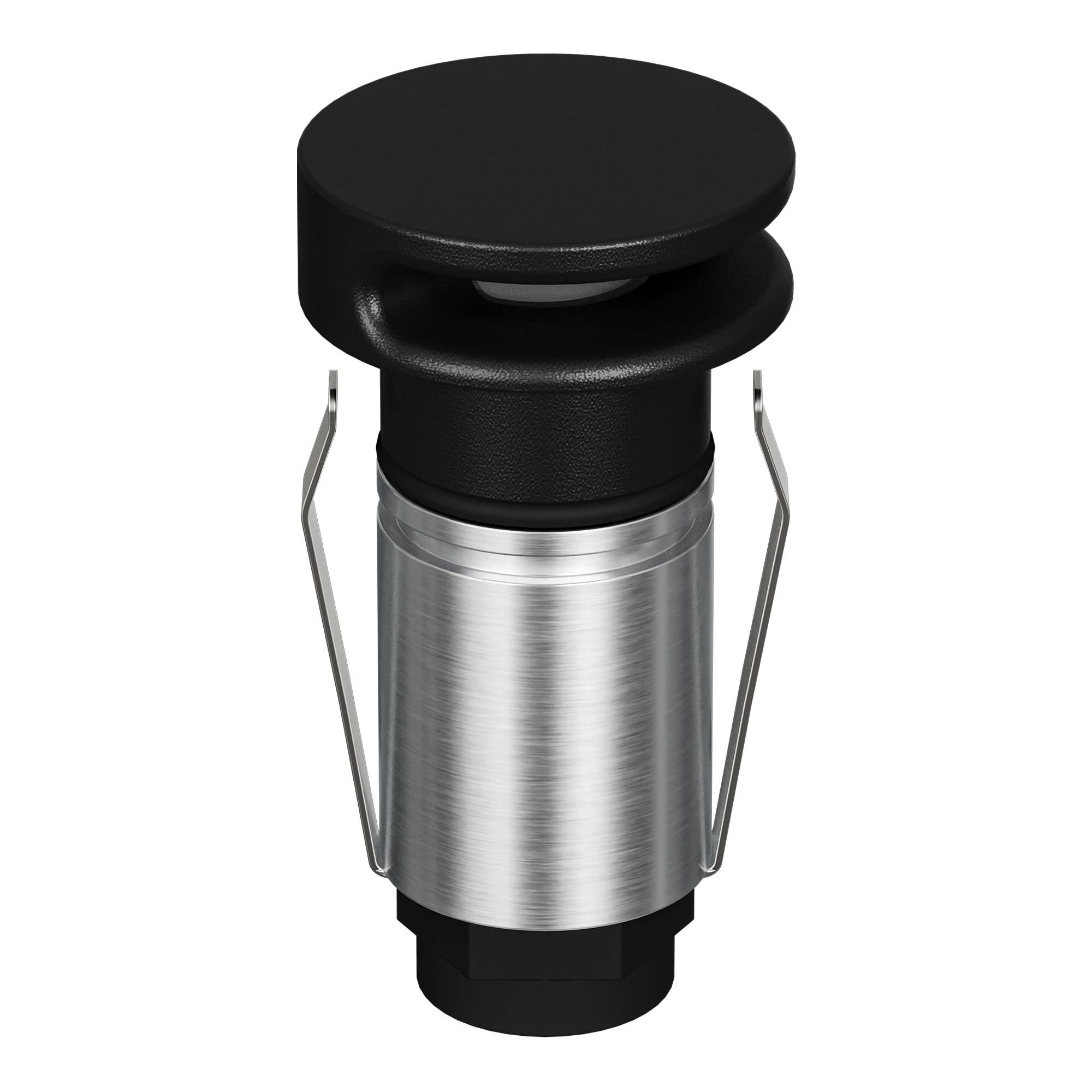

Emit Deck Light 25mm 1W Tri-Colour 12/24V Round Slot Black Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, round slot fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25-TRIO-BLK, Domus Emit 25mm Inground Light, Tri-Colour LED Deck Light, Mini Recessed Inground Light
Technical Specifications
- Variant: EMIT-25-TRIO-BLK
- Light Source: CREE LED
- Power: 1W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumen Output: 17 lm at 3000K, 4000K and 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Load Rating: 1500 kg drive-over
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Cutout: 19mm without cannister or 24mm with cannister
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm round slot inground and deck light
- Tri-colour selection between warm, neutral and cool white
- Black fascia finish
- Suitable for landscape, pathway, stair and architectural feature lighting
- IP67-rated construction for outdoor applications
- IK10 impact rating and 1500kg drive-over load rating
- Optional beam lenses, honeycomb and opal diffuser accessories
- Requires a separate compatible 12/24V DC LED driver
Professional Installation Requirements
- Installation should be completed by a licensed electrician using a compatible 12/24V DC constant-voltage LED driver. Wire fittings in parallel and follow the manufacturer's installation instructions and AS/NZS 3000 requirements.
Applications
- Deck and pathway lighting
- Landscape and garden feature lighting
- Step and stair lighting
- Architectural feature illumination
- Drive-over inground lighting where the 1500kg load rating is suitable
- Outdoor residential and commercial lighting installations
Standards & Compliance
- AS/NZS 60598.1: Luminaires — general requirements and tests
- AS/NZS 60598.2.23:2021: Extra-low-voltage lighting systems for ELV light sources, where applicable to the installation
- AS/NZS 3000: Electrical installations — wiring and installation requirements for the associated driver and cabling
Environmental Benefits
- Low 1W LED power consumption supports reduced operating energy use
- 50,000-hour rated LED lifespan can reduce replacement frequency and waste
- Selectable colour temperature helps avoid over-lighting by matching illumination to the application
- Metal luminaire components can generally be recycled at end of service life
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-25 series. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with Domus instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
