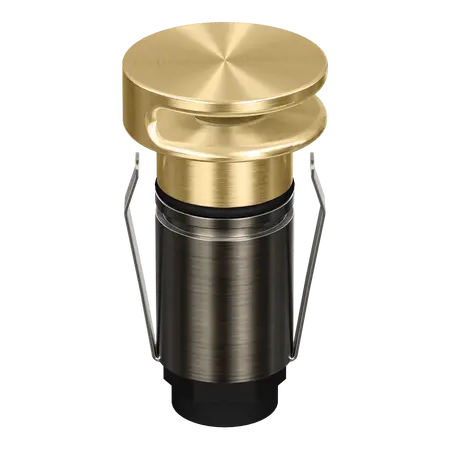

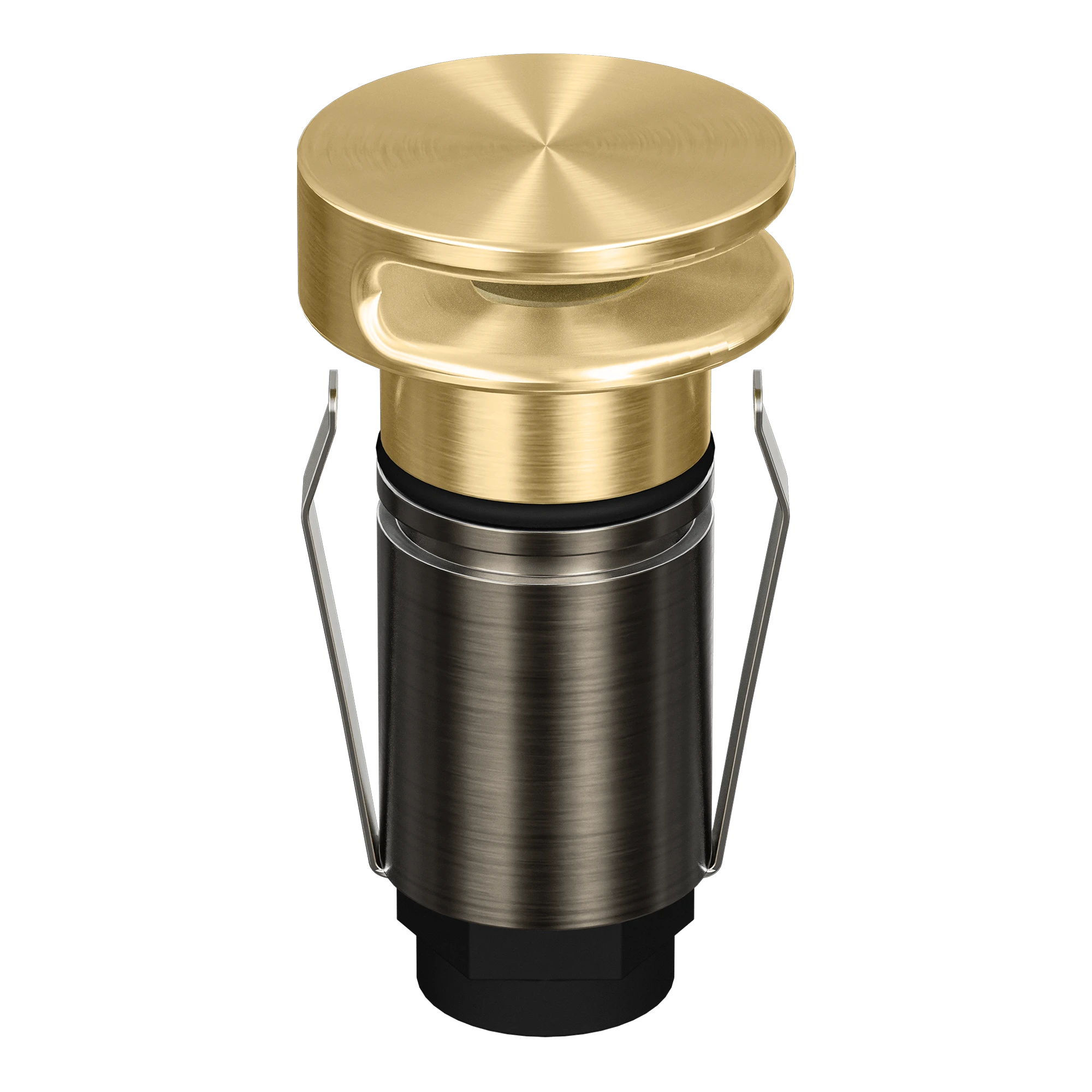

Emit Deck Light 25mm 1W Tri-Colour 12/24V Round Slot Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, round slot fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-TRIO-RND-SLOT, Emit 25 Round Slot Inground Light, 25mm LED Deck Light, Recessed Inground Light
Technical Specifications
- Product Type: Inground and deck light
- Variant: TRIO tri-colour
- Power: 1W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K and 5500K selectable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Light Output: Approximately 17 lm
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Dimming: No
- Ingress Protection: IP67
- Impact Rating: IK10
- Lifespan: 50,000 hours
- Cutout: Ø19mm without cannister; Ø24mm with cannister
- Load Rating: Up to 1500kg drive-over
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Finish: Brass
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm round slot fascia for discreet recessed lighting
- Selectable warm white, neutral white and white colour temperatures
- Suitable for 12V or 24V DC constant-voltage LED drivers
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating and 1500kg drive-over load rating
- 36° beam angle supplied as standard
- Brass fascia with corrosion-resistant outdoor lighting construction
- Optional beam lenses, honeycomb, linear lens and opal diffuser accessories
- Non-dimmable design
- Long 50,000-hour rated LED lifespan
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Connect to a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions. The driver is required and is not included.
Applications
- Deck and step lighting
- Landscape and pathway lighting
- Inground feature lighting
- Architectural accent lighting
- Garden and outdoor area lighting
- Drive-over lighting where the 1500kg load rating is suitable
Standards & Compliance
- AS/NZS 60598.1:2025 – Luminaires, general requirements and tests
Environmental Benefits
- Low 1W power consumption supports reduced operating energy use compared with higher-wattage feature lighting
- LED source provides a long rated lifespan of up to 50,000 hours, reducing replacement frequency and waste
- Brass components can be recycled at end of service life
- Replaceable external driver arrangement can support servicing without replacing the entire lighting system
Warranty Information
5-year replacement warranty as stated on the current Domus product documentation. Warranty eligibility requires installation by a licensed electrician and installation in accordance with the manufacturer's guidelines; Australian Consumer Law rights also apply.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
