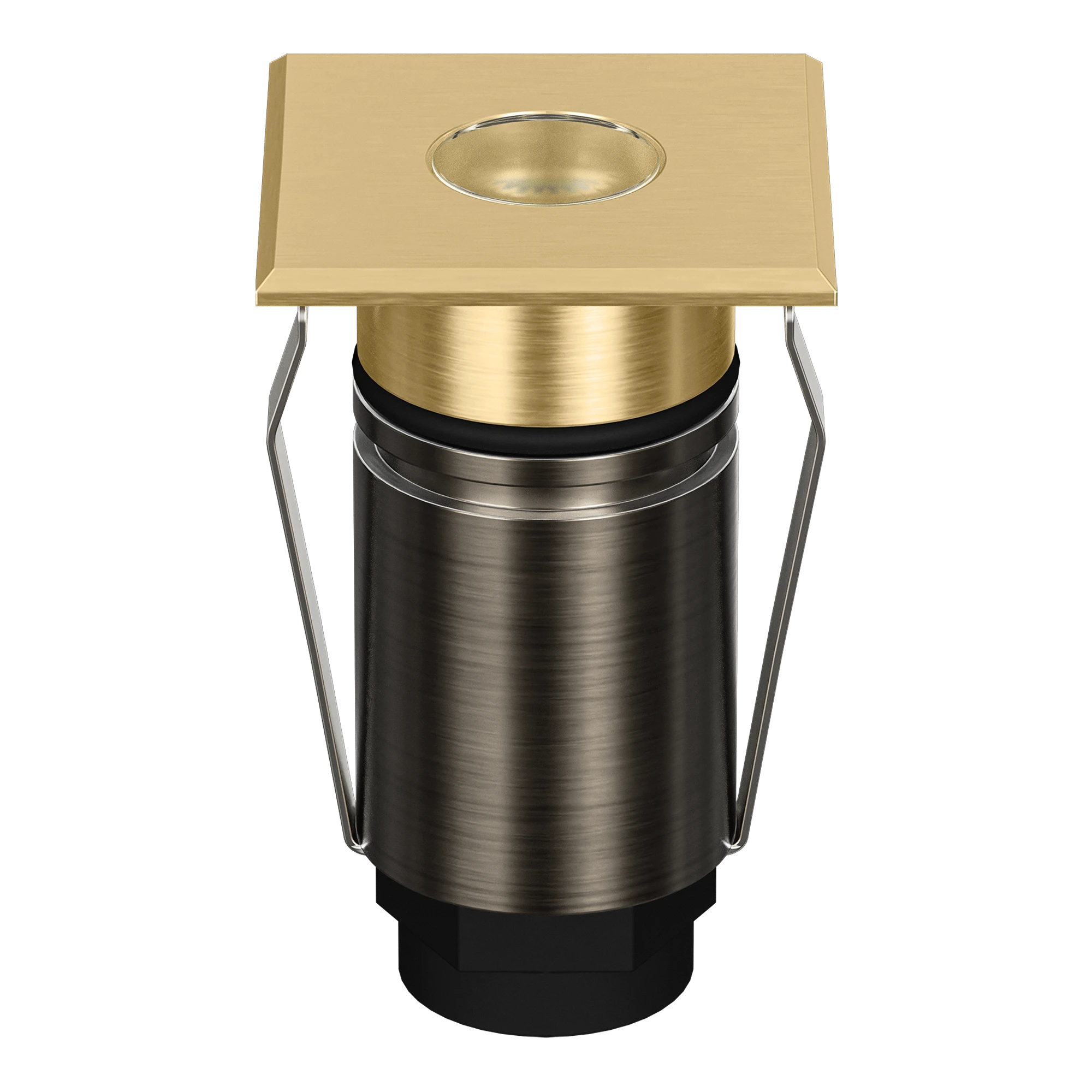

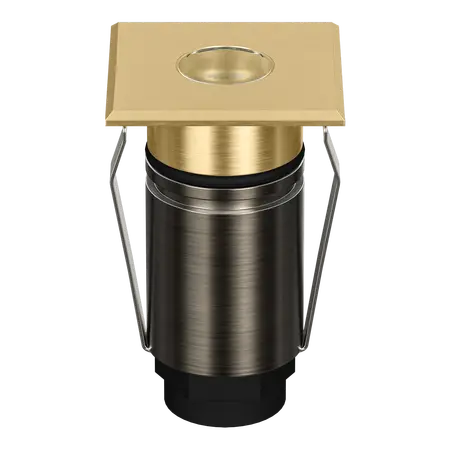

Emit Deck Light 25mm 1W Tri-Colour 12/24V Square Open Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-TRIO-BRS, Domus Emit-25 Square Open, Brass Inground Light, Micro Recessed Deck Light
Technical Specifications
- Item Number: EMIT-25-TRIO-BRS
- Variant ID: 10021
- Material/Finish: Brushed brass
- Light Source: CREE LED
- Power: 1W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumen Output: 46 lm at 3000K, 51 lm at 4000K, 55 lm at 5500K
- Colour Rendering Index: CRI ≥90
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- Rated Lifespan: 50,000 hours
- Cut-Out: 19mm without cannister or 24mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Square open fascia with brushed brass finish
- Tri-colour selectable output for warm, neutral and cool white light
- Compact 25mm mini inground and deck light design
- Suitable for landscape, pathway, stair and architectural feature lighting
- IP67-rated construction for outdoor and inground applications
- IK10 impact rating
- Optional lenses, honeycomb, opal diffuser and water-stop cable joint available
- Requires a separate 12/24V DC constant-voltage LED driver
Professional Installation Requirements
- Installation and driver connection should be carried out by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian wiring requirements. Use only a compatible 12V or 24V DC constant-voltage LED driver.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural façade and feature illumination
- Inground lighting installations
Standards & Compliance
- AS/NZS 60598.2.2:2016 — applicable requirements for recessed luminaires
- AS/NZS 60598.1 — general requirements for luminaires
- AS/NZS 3000 — electrical installation requirements for low-voltage lighting systems
Environmental Benefits
- Low 1W LED power consumption supports energy-efficient feature lighting
- Long rated LED lifespan of 50,000 hours can reduce replacement frequency and waste
- Brass components are recyclable at end of service life
- External constant-voltage driver allows servicing or replacement without replacing the light fitting
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
