Trade Discount 25%

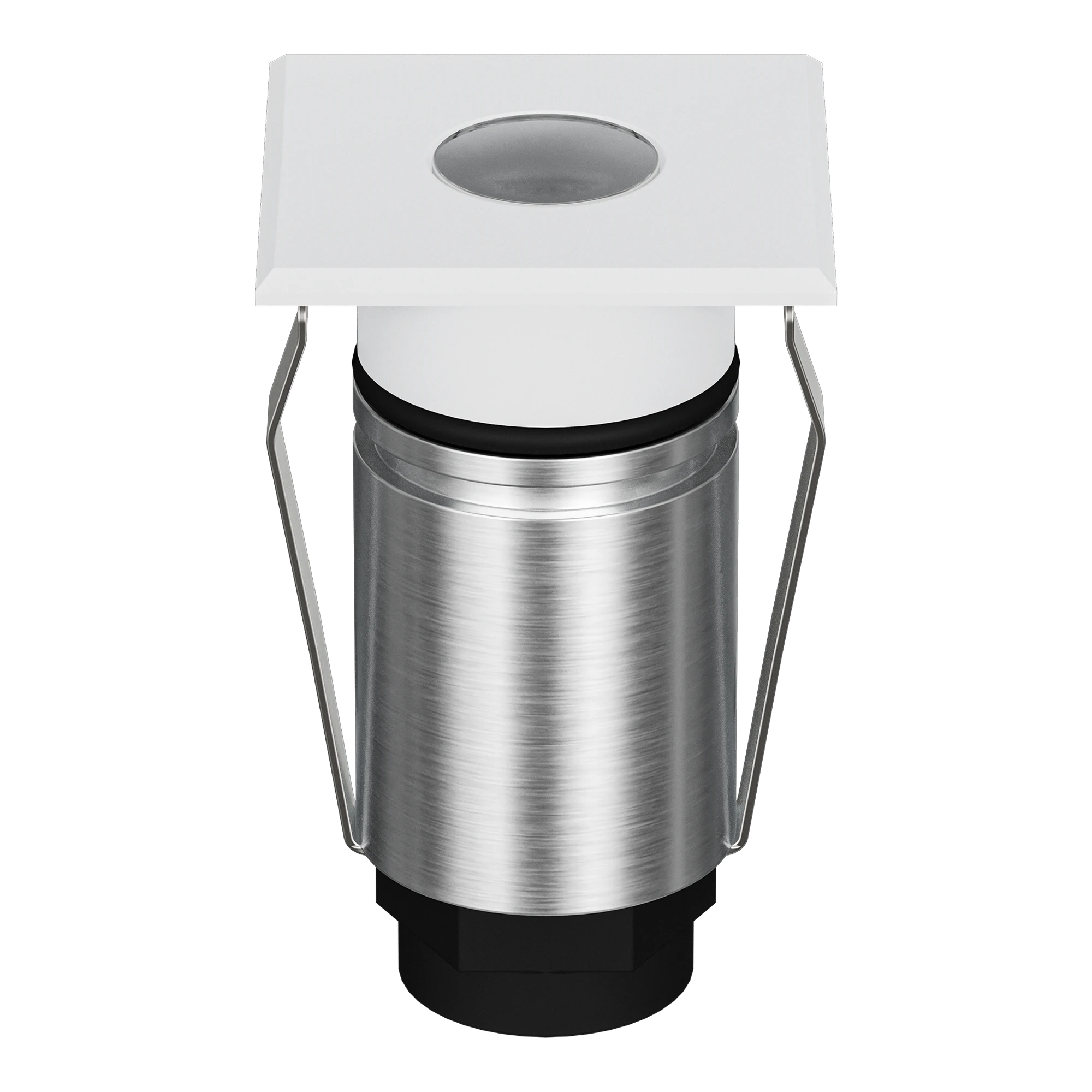

Emit Deck Light 25mm 1W Tri-Colour 12/24V Square Open White Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, square open fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-TRIO-SO, Domus Emit 25 Square Open Inground Light, Mini LED Deck Light, Tri-Colour Inground Light
Technical Specifications
- Product Code: EMIT-25-TRIO-SO
- Variant: EMIT-25-TRIO-WHT
- Wattage: 1W
- Input Voltage: 12/24V DC
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Light Output: 46 lm at 3000K, 51 lm at 4000K, 55 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Dimming: No
- Ingress Protection: IP67
- Impact Protection: IK10
- Lifespan: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Cutout: 19mm without cannister or 24mm with cannister
- Fascia Style: Square open
- Finish: White
- Dimensions (H x L x W): 39mm x 25mm x 25mm
- Weight: 0.12 kg
Key Features
- Compact 25mm mini inground and deck light
- Selectable 3000K warm white, 4000K neutral white and 5500K white colour temperatures
- Low-power 1W LED output for subtle feature illumination
- IP67-rated construction for suitable outdoor and inground applications
- IK10 impact resistance and 1,500kg drive-over load rating
- 36° beam angle supplied as standard
- Optional narrow and wide beam lenses, honeycomb and opal diffuser accessories
- White square open fascia
- Designed for landscape, pathway, stair and architectural lighting
Professional Installation Requirements
- Installation should be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and install the driver and connections in accordance with applicable Australian electrical requirements and the product instructions.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Inground architectural illumination
- Drive-over feature lighting where the installation is suitably prepared
Standards & Compliance
- AS/NZS 60598.1:2017, applicable general safety requirements for luminaires
- AS/NZS 3000:2018, applicable requirements for low-voltage electrical installations
Environmental Benefits
- 1W LED operation helps reduce energy consumption compared with higher-wattage conventional lighting
- 50,000-hour rated lifespan can reduce replacement frequency and associated material waste
- Long-life LED technology supports efficient architectural and landscape lighting installations
- Metal components and fascia materials may be recyclable at end of service life, subject to local recycling facilities
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-25-TRIO series. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with Domus guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
