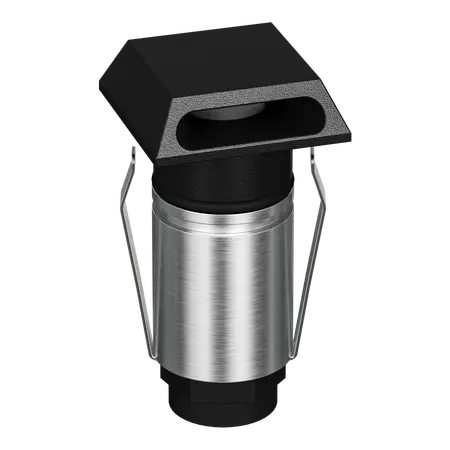

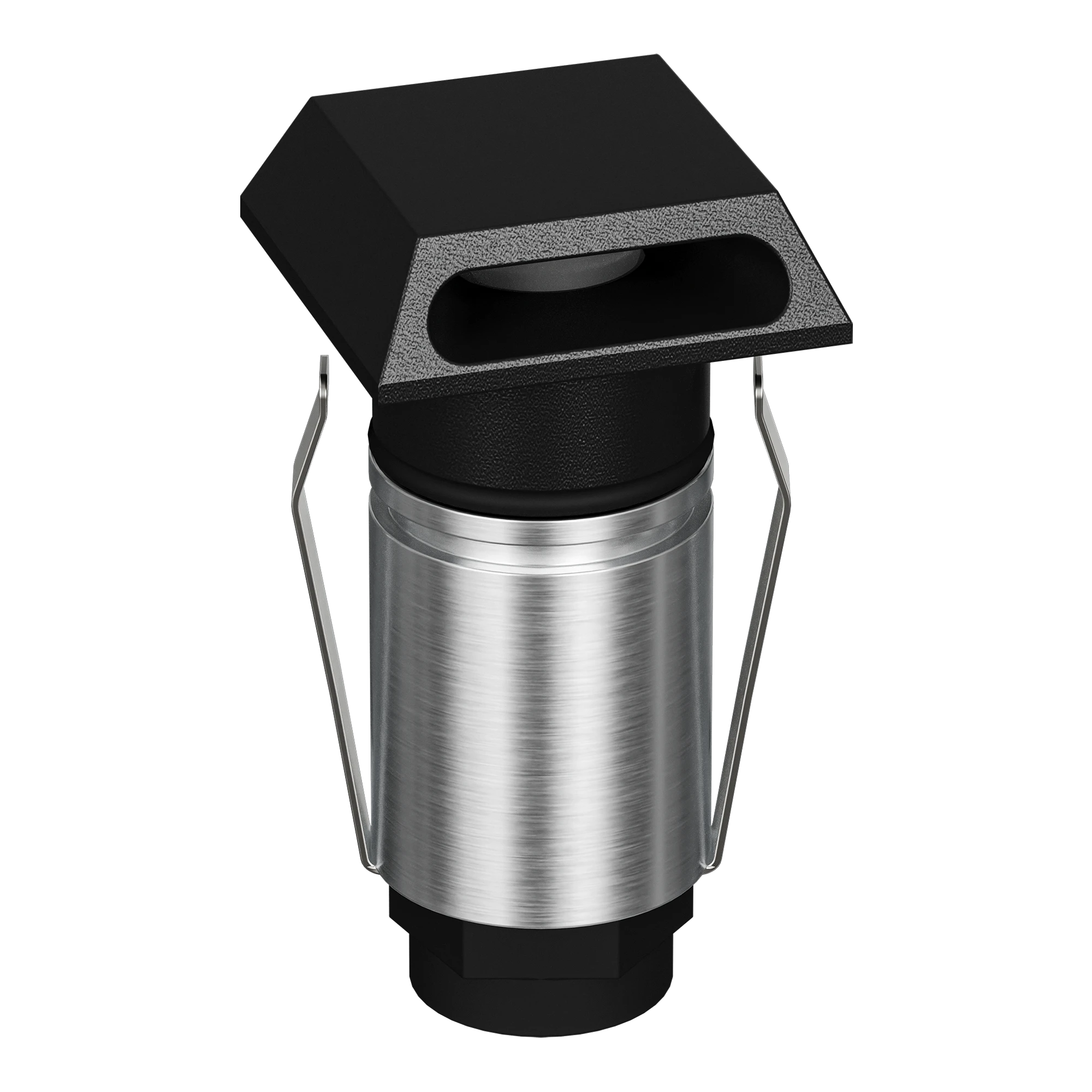

Emit Deck Light 25mm 1W Tri-Colour 12/24V Square Slot Black Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, square slot fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-TRIO-SQR-SLOT, EMIT-25-TRIO-BLK, Tri-Colour Inground Light, LED Deck Light
Technical Specifications
- Model: EMIT-25-TRIO-SQR-SLOT
- Item Number: 10277
- Input Voltage: 12/24V DC constant voltage
- Power: 1W
- Colour Temperature: 3000K, 4000K or 5500K selectable
- Lumen Output: 46 lm at 3000K, 51 lm at 4000K, 55 lm at 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Dimming: No
- Rated Lifespan: 50,000 hours
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Cutout: 19 mm without cannister or 24 mm with cannister
- Finish: Black
- Fascia Style: Square Slot
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Selectable 3000K warm white, 4000K neutral white and 5500K white colour temperatures
- Compact 25mm mini inground and deck light design
- 36° beam angle supplied as standard
- IP67-rated construction for suitable outdoor applications
- IK10 impact rating and 1500 kg drive-over rating
- High colour rendering with CRI ≥90
- Optional narrow, wide, honeycomb and diffuser accessories available
- Requires a separate constant-voltage LED driver
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and follow the manufacturer's installation instructions. Do not connect directly to mains voltage.
Applications
- Residential and commercial deck lighting
- Outdoor steps, pathways and garden features
- Inground feature lighting
- Drive-over landscape and pedestrian areas within the specified load rating
- Architectural and landscape accent lighting
Standards & Compliance
- AS/NZS 60598.1:2025 — applicable general safety requirements and tests for luminaires incorporating LED light sources
- AS/NZS 60598.2.13 — relevant ground-recessed luminaire requirements for indoor and outdoor applications
- AS/NZS 3000 — applicable wiring and installation requirements for the associated electrical installation
Environmental Benefits
- Low 1W LED power consumption helps reduce energy use compared with higher-wattage conventional lighting
- Rated LED lifespan of 50,000 hours can reduce replacement frequency and material waste
- Selectable colour temperature supports task-appropriate lighting without replacing the fitting
- Metal luminaire components can be recycled through appropriate metal-recycling streams
Warranty Information
The product datasheet states a 5-year replacement warranty. Domus Lighting's current warranty statement lists exterior LED deck and inground lights as covered for 3 years for residential applications and 12 months for commercial applications, subject to eligibility conditions including licensed-electrician installation. Confirm the applicable warranty at purchase.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; driver and optional accessories are supplied separately unless otherwise specified.
