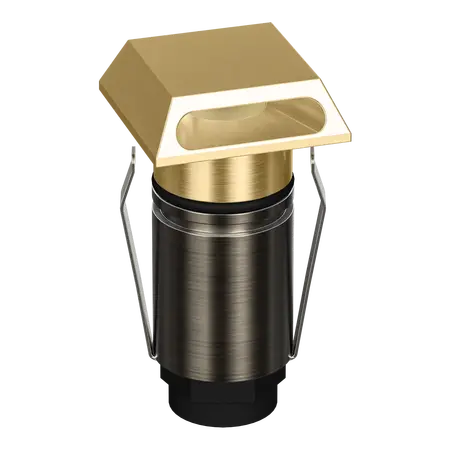

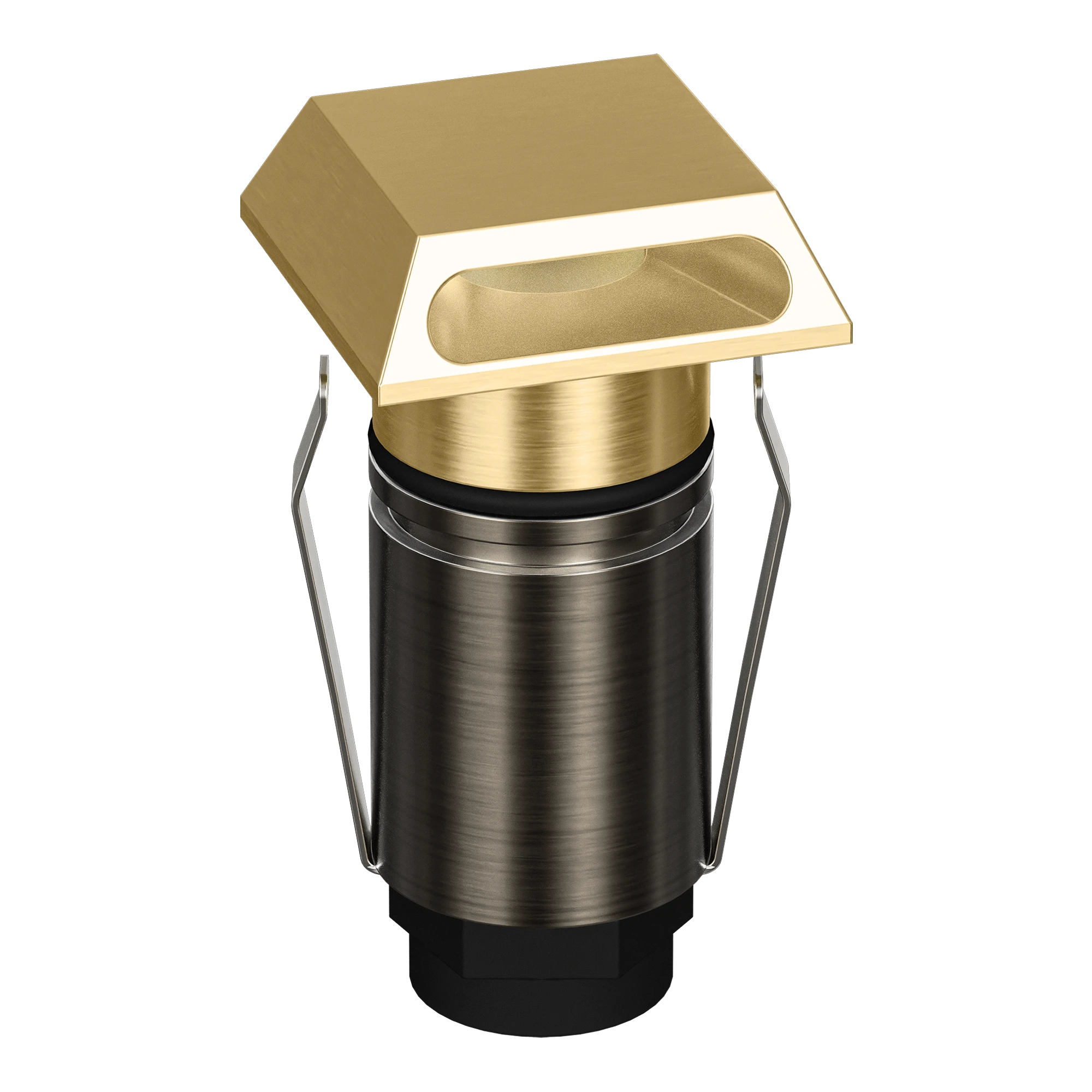

Emit Deck Light 25mm 1W Tri-Colour 12/24V Square Slot Brass Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, square slot fascia, brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25-TRIO-SQR-SLOT, Emit 25 Square Slot Inground Light, 25mm Brass Deck Light
Technical Specifications
- Light Type: LED inground and deck light
- Fascia Style: Square slot
- Finish: Brass
- Power: 1W
- Input Voltage: 12/24V DC constant voltage
- Colour Temperature: 3000K, 4000K and 5500K selectable
- Luminous Output: 17 lm at 3000K, 4000K and 5500K
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Rendering Index: CRI ≥90
- Dimming: Non-dimmable
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over
- Expected Lifespan: 50,000 hours
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Cutout: 19 mm without cannister or 24 mm with cannister
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.18 kg
Key Features
- Tri-colour selectable white light
- Compact 25 mm square slot design
- Brass metal fascia and housing finish
- Suitable for deck, pathway, stair, landscape and architectural feature lighting
- IP67 protection for outdoor installation
- IK10 impact rating and 1500 kg drive-over load rating
- Optional beam lenses, honeycomb, linear lens and opal diffuser accessories
- Low-power 1W LED construction
- Backed by a five-year replacement warranty
Professional Installation Requirements
- Installation should be completed by a licensed electrician using a compatible 12/24V DC constant-voltage LED driver. Outdoor wiring, cable joints and driver installation must be completed in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
- Residential and commercial deck lighting
- Outdoor pathways and stairs
- Landscape and garden feature lighting
- Architectural feature illumination
- Drive-over or pedestrian inground lighting where the 1500 kg load rating is suitable
Standards & Compliance
- Applicable to luminaire requirements under AS/NZS 60598.1:2017
- Applicable to extra-low-voltage lighting systems under AS/NZS 60598.2.23:2021
- Electrical installation should comply with AS/NZS 3000:2018
Environmental Benefits
- 1W LED technology provides efficient low-energy illumination
- 50,000-hour rated lifespan can reduce replacement frequency and waste
- Brass components can be recovered and recycled at end of service life
- Low-voltage DC operation supports efficient landscape lighting systems when paired with an appropriately sized LED driver
Warranty Information
Five-year replacement warranty as stated by Domus for the EMIT-25 Tri-Colour series, subject to purchase through an authorised distributor, licensed-electrician installation and the manufacturer's warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
