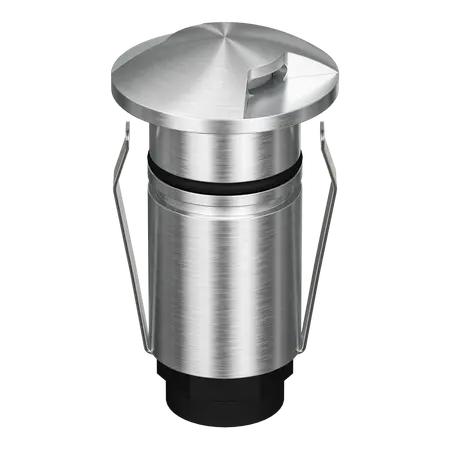

Emit Deck Light 25mm RGBW 12/24V 2-Way 316 Stainless Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 2-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-RGBW-STS, EMIT-25-RGBW-2WAY, RGBW Mini Inground Light, RGBW Deck Light
Technical Specifications
- Light Type: RGBW LED inground and deck light
- Fascia Style: 2-way
- Finish: 316 stainless steel
- Power: 1W
- Input Voltage: 24V DC constant voltage
- LED Type: CREE
- Colour Output: Red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Electrical Classification: Class III
- Dimming: No
- Lifespan: 50,000 hours
- Cutout: 19mm without canister; 24mm with canister
- Load Rating: 1,500kg drive-over
- Required Accessories: 24V DC LED driver and RGBW colour controller
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.18 kg
Key Features
- Compact 25mm diameter design for discreet deck and inground installation
- Two-way fascia directs light in opposing directions
- 316 stainless steel construction for exterior applications
- RGBW colour output for colour-changing and white-light effects
- 36° beam angle supplied as standard
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact resistance
- Suitable for drive-over applications up to 1,500kg when correctly installed
- 50,000-hour LED lifespan
- Requires constant-voltage 24V DC driver and RGBW controller
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a 24V DC constant-voltage LED driver wired in parallel and use a compatible RGBW colour controller. Follow the manufacturer's installation instructions and applicable requirements of AS/NZS 3000.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural feature illumination
- Drive-over inground lighting where the installation base is suitably engineered
Standards & Compliance
- AS/NZS 60598.1: Applicable general safety requirements for luminaires
- AS/NZS 60598.2.13: Applicable particular requirements for ground-recessed luminaires
- AS/NZS 3000: Applicable electrical installation requirements; installation by a licensed electrician is required
Environmental Benefits
- Low 1W power consumption supports energy-efficient feature lighting
- 50,000-hour LED lifespan can reduce replacement frequency and material waste
- 316 stainless steel construction is durable and recyclable at end of service life
- LED technology avoids mercury-containing fluorescent light sources
Warranty Information
5-year replacement warranty as specified by Domus Lighting for the EMIT-25 RGBW range, subject to the manufacturer's warranty terms, approved installation and installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian distributors.
