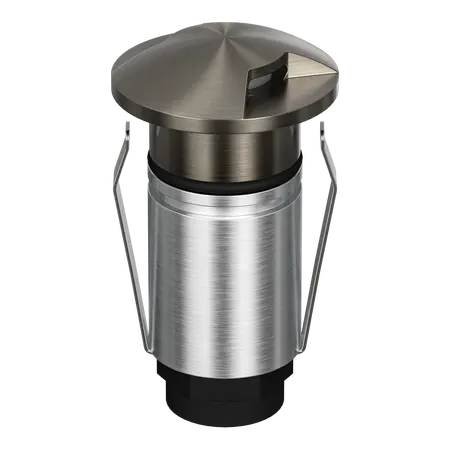

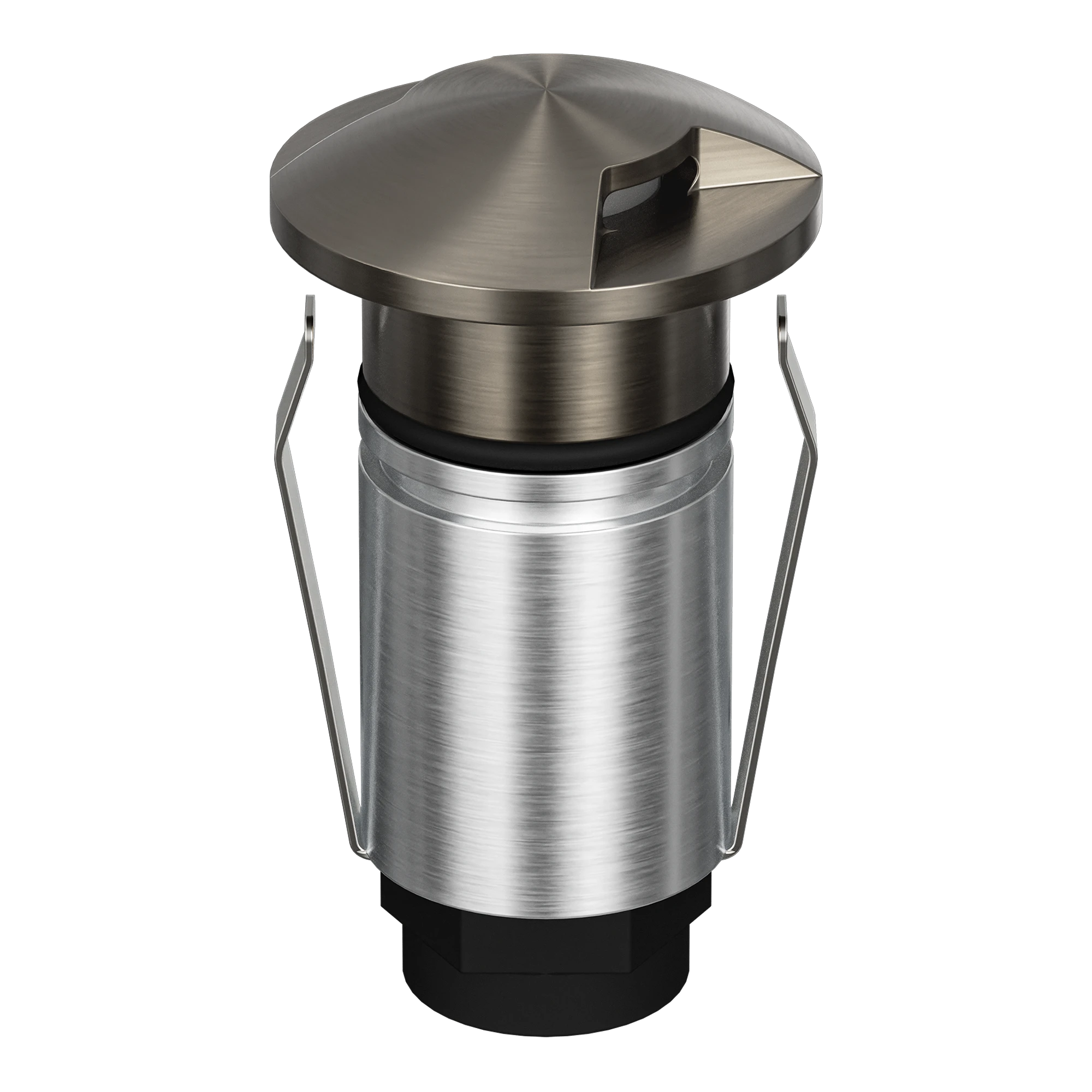

Emit Deck Light 25mm RGBW 12/24V 2-Way Antique Brass Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 2-way fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25-RGBW-AB, 25mm RGBW Inground Light, RGBW Recessed Deck Light, Mini Inground LED Light
Technical Specifications
- Variant: RGBW 2-Way
- Item Number: 10074
- Input Voltage: 24V DC constant voltage
- Power: 1W
- Beam Angle: 36° standard; optional 19° and 60° lenses
- LED Type: CREE
- Colour Output: RGB plus white
- Dimming: No
- IP Rating: IP67
- IK Rating: IK10
- Lifespan: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Cutout: Ø19mm without cannister; Ø24mm with cannister
- Material: Antique brass fascia with stainless steel body
- Control Requirement: RGBW colour controller
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Operating Temperature: -20°C to 40°C
- Classification: Class III
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25mm recessed inground and deck light
- RGBW colour-changing output for architectural and landscape lighting
- Two-way fascia directs light in opposite directions
- 36° beam angle supplied as standard
- IP67 protection for suitable outdoor recessed installations
- IK10 impact rating and 1,500 kg drive-over load rating
- Antique brass finish
- Optional narrow, wide, honeycomb and opal diffuser accessories
- Requires separate 24V DC LED driver and RGBW controller
- 5-year replacement warranty
Professional Installation Requirements
- Must be installed by a licensed or suitably qualified electrician in accordance with the installation manual and AS/NZS 3000. Use only a compatible 24V DC constant-voltage LED driver and RGBW controller; connect the fittings in parallel. The 240V input side of the driver must be installed by a licensed electrician.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural façade and structural feature illumination
- Recessed outdoor lighting in suitable inground or deck applications
- Drive-over lighting where the installation substrate and cannister arrangement support the stated load rating
Standards & Compliance
- AS/NZS 3000: Electrical installations, applicable to the wiring and installation of the low-voltage lighting system
- AS/NZS 60598.1:2025: Applicable general safety requirements and tests for luminaires; product-specific certification should be confirmed from the supplier where required
Environmental Benefits
- LED technology provides efficient illumination at a low 1W input power
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- Low-voltage 24V DC operation supports use with efficient constant-voltage LED drivers
- Metal components such as stainless steel and brass can be recycled at end of service life
- Durable IP67 and IK10 construction can extend service life in suitable outdoor installations
Warranty Information
5-year replacement warranty. Domus warranty eligibility requires proof of purchase, installation by a licensed electrician and installation in accordance with the product guidelines. Warranty coverage is subject to Domus Lighting's current warranty statement and Australian Consumer Law.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; driver and RGBW controller are required separately.
