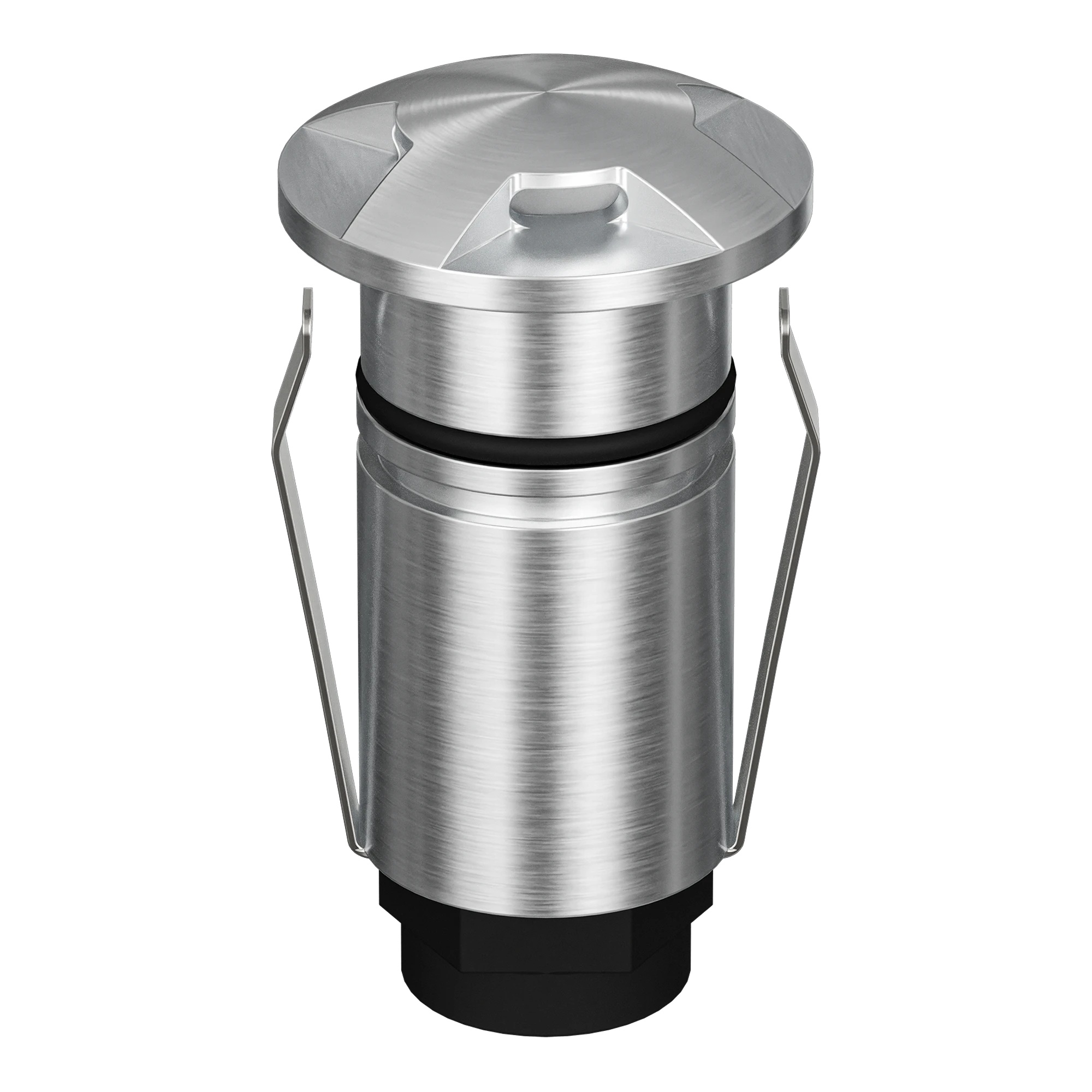

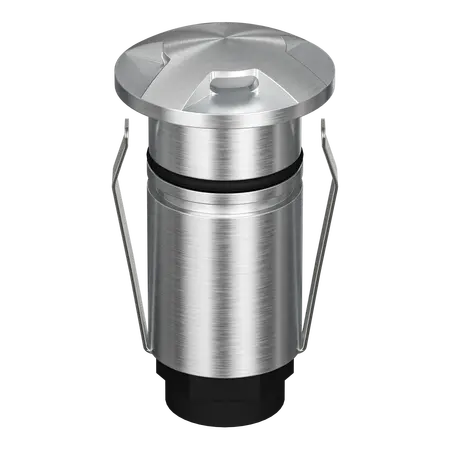

Emit Deck Light 25mm RGBW 12/24V 3-Way 316 Stainless Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 3-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-RGBW-STS, Emit 25 RGBW Multiway Inground Light, 25mm RGBW Deck Light
Technical Specifications
- Variant: RGBW
- Item Number: EMIT-25-RGBW-STS
- Fascia Style: 3-way
- Finish: 316 stainless steel
- Power: 1W
- Input Voltage: 24V DC constant voltage
- LED Type: CREE
- Colour Output: Red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: 19mm without cannister; 24mm with cannister
- Load Rating: 1,500kg drive-over
- Connection: Wire in parallel
- Required Accessories: 24V DC LED driver and RGBW colour controller
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25mm diameter inground and deck light
- RGBW colour-changing illumination
- Three-way fascia distributes light in multiple directions
- Manufactured with a 316 stainless steel fascia
- 36° beam angle supplied as standard
- IP67 protection for outdoor and inground applications
- IK10 impact protection
- Suitable for drive-over areas up to a 1,500kg load rating
- Optional beam lenses, honeycomb and opal diffuser accessories available
- Designed for landscape, pathway, stair, deck and architectural lighting
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW colour controller, wired in parallel and installed in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Deck and patio lighting
- Landscape and garden feature lighting
- Pathway and stair illumination
- Inground architectural lighting
- Drive-over landscape and pedestrian areas
- RGBW feature lighting installations
Standards & Compliance
- AS/NZS 60598.1: Luminaires, general requirements and tests
- AS/NZS 60598.2.13: Particular requirements for ground-recessed luminaires
- AS/NZS 3000: Electrical installations and wiring requirements
Environmental Benefits
- Low 1W LED power consumption supports efficient feature lighting installations
- 50,000-hour LED lifespan can reduce replacement frequency and material waste
- 316 stainless steel construction is durable and recyclable at end of service life
- Operates from extra-low-voltage 24V DC supply when used with a suitable driver
Warranty Information
5-year replacement warranty as stated by Domus Lighting for the EMIT-25 RGBW series, subject to licensed-electrician installation, correct installation, suitable compatible components and the manufacturer's warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
