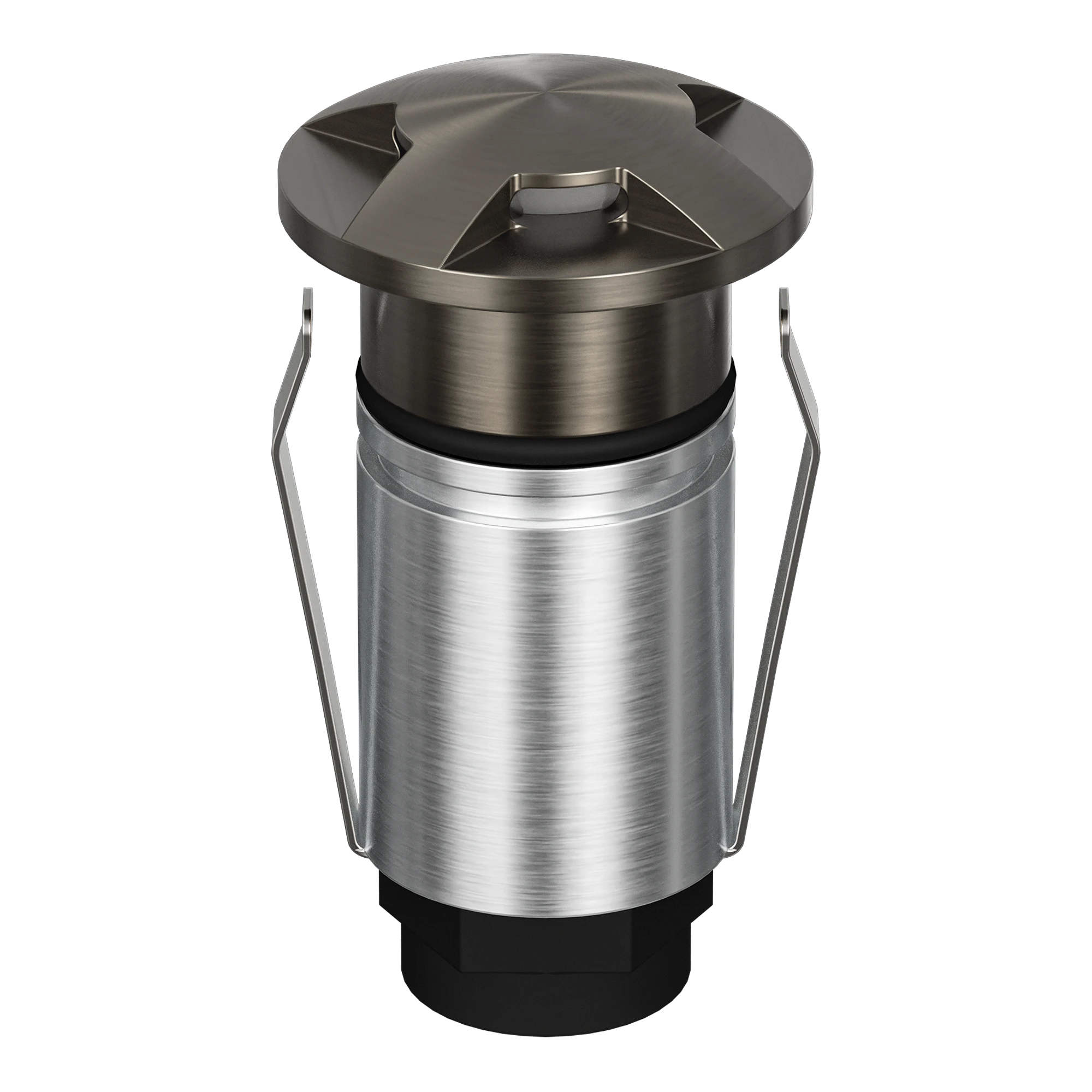

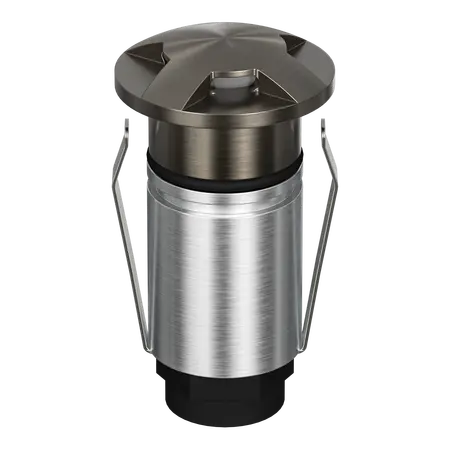

Emit Deck Light 25mm RGBW 12/24V 3-Way Antique Brass Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, 3-way fascia, antique brass. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emit-25 RGBW 3-Way Decklight, Domus 25mm RGBW Inground Light, Antique Brass Recessed Deck Light
Technical Specifications
- Model: EMIT-25-RGBW-AB
- Variant: 3-way fascia
- Item Number: 10075
- Light Source: 1W CREE LED
- Input Voltage: 24V DC constant voltage
- Colour Output: RGBW – red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Load Rating: 1,500 kg drive-over
- Cutout: 19 mm without canister or 24 mm with canister
- Required Accessories: 24V DC LED driver and RGBW colour controller
- Wiring: Connect fittings in parallel
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25 mm diameter inground and deck light
- Antique brass three-way fascia
- RGBW colour-changing output controlled through a compatible RGBW controller
- 36° standard beam angle for feature and pathway illumination
- IP67-rated construction for suitable outdoor installations
- IK10 impact rating and 1,500 kg drive-over load rating
- Optional narrow and wide beam lenses, honeycomb and opal diffuser accessories
- Water-stop cable joint helps limit water siphoning into the fitting
- Backed by a 5-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a professional or licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW controller, wire fittings in parallel, and follow the manufacturer's installation instructions. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/09/EMIT-25-RGB-Installation-Manual.pdf))
Applications
- Deck and patio lighting
- Landscape and garden feature lighting
- Pathway and stair lighting
- Architectural inground lighting
- Drive-over exterior lighting where the installation substrate and drainage are suitable
Standards & Compliance
- AS/NZS 60598.2.23:2021 – applicable requirements for extra-low-voltage lighting systems for ELV light sources. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-us/standards/as-nzs-60598-2-23-2021-115874_saig_as_as_3028800/))
- AS/NZS 3000 – applicable electrical installation and wiring requirements for connection of the driver, controller and extra-low-voltage lighting system
Environmental Benefits
- Low 1W LED power consumption supports efficient feature and pathway lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Metal components can generally be recycled at end of service life
- Replaceable external driver and controller arrangement can help avoid replacing the complete fitting when control equipment requires servicing
Warranty Information
5-year replacement warranty as specified by Domus for the EMIT-25 RGBW range. Warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with Domus instructions. ([domuslighting.com.au](https://www.domuslighting.com.au/product/emit-25-3-way/))
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
