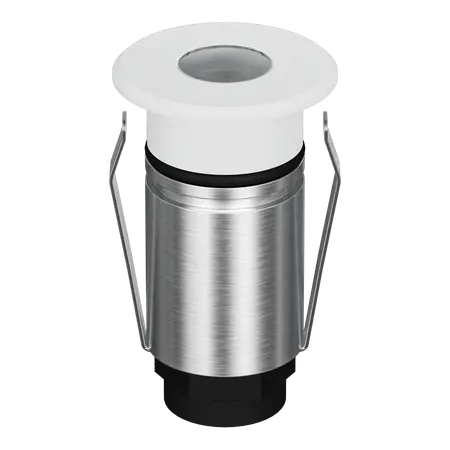

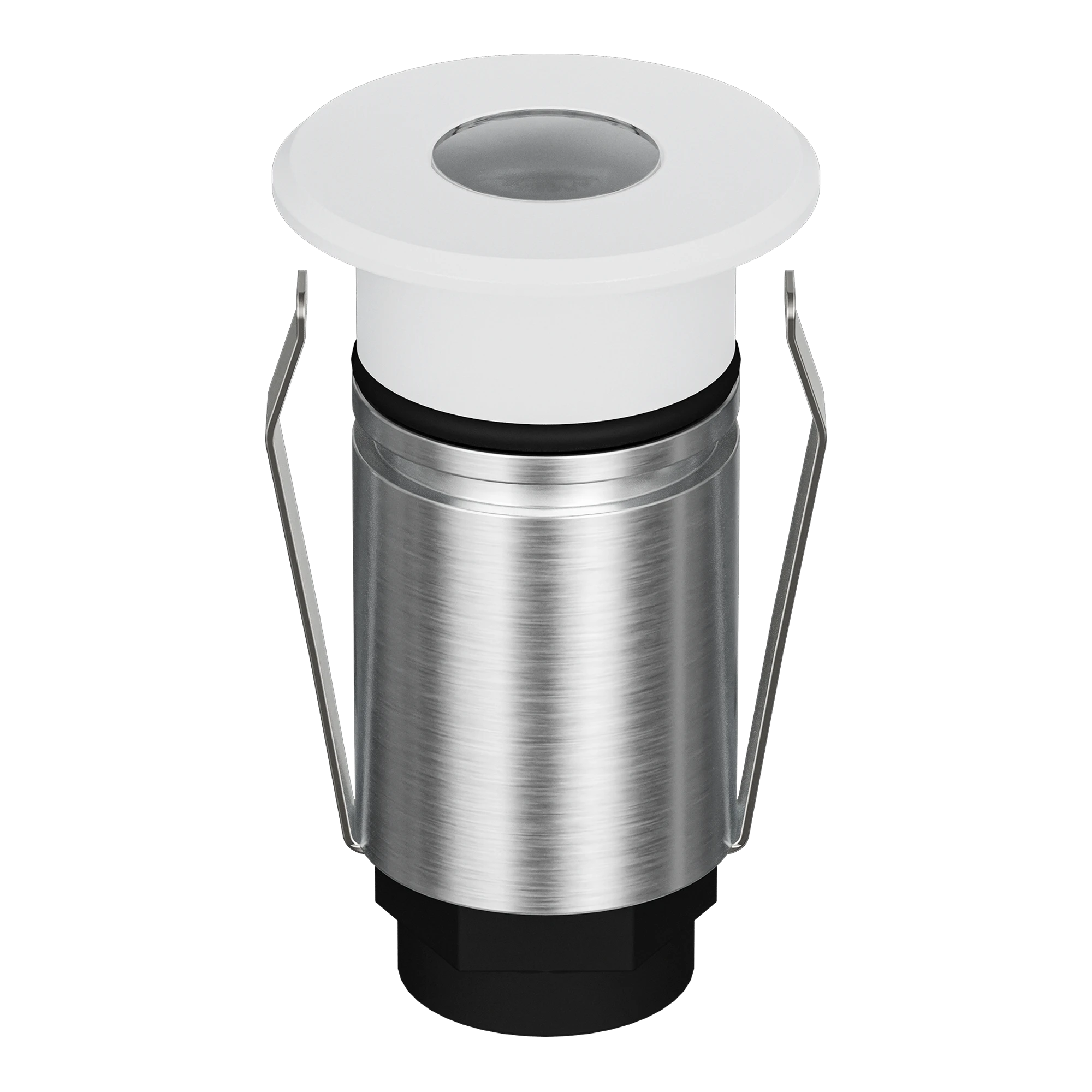

Emit Deck Light 25mm RGBW 12/24V Round Open White Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, round open fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-25 RGBW Round Open Deck Light, RGBW Mini Inground Light, 24V RGBW Recessed Deck Light
Technical Specifications
- Variant: EMIT-25-RGBW-WHT
- Finish Colour: White
- Style: Round Open
- Input Voltage: 24V DC constant voltage
- Power: 1W
- LED Type: CREE
- Colour Output: RGBW
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No; requires RGBW colour controller
- LED Lifespan: 50,000 hours
- Cutout Diameter: 19mm without cannister; 24mm with cannister
- Connection: Wire in parallel to a 24V DC LED driver
- Operating Temperature: -20°C to 40°C
- Class: Class III
- Manufacturer Variant ID: 11512
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm round open fascia for discreet inground and deck lighting
- RGBW colour output for selectable red, green, blue and white illumination
- 36° standard beam angle for feature and architectural lighting
- IP67-rated construction for suitable outdoor and inground applications
- IK10 impact rating
- Requires a separate 24V DC constant-voltage LED driver
- Requires a separate RGBW colour controller
- Optional lenses, honeycomb and diffuser accessories are available
- Suitable for landscape, pathway, stair, deck and architectural feature lighting
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW controller, wire fittings in parallel, and follow the manufacturer's installation instructions. Do not connect directly to mains voltage.
Applications
- Residential and commercial deck lighting
- Inground landscape and pathway lighting
- Stair and step illumination
- Architectural feature lighting
- Outdoor garden and hardscape lighting
- RGBW accent and colour-changing installations
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires
- AS/NZS 60598.2.2: Particular requirements for recessed luminaires
- AS/NZS 3000: Electrical installations, for wiring and installation requirements
Environmental Benefits
- Low 1W LED power consumption supports energy-efficient feature lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- LED technology avoids routine lamp replacement associated with conventional light sources
- IP67 protection can help extend service life in suitable outdoor installations
Warranty Information
Manufacturer product information states a 5-year replacement warranty. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines. Domus' general warranty policy may apply different periods depending on residential or commercial use.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
