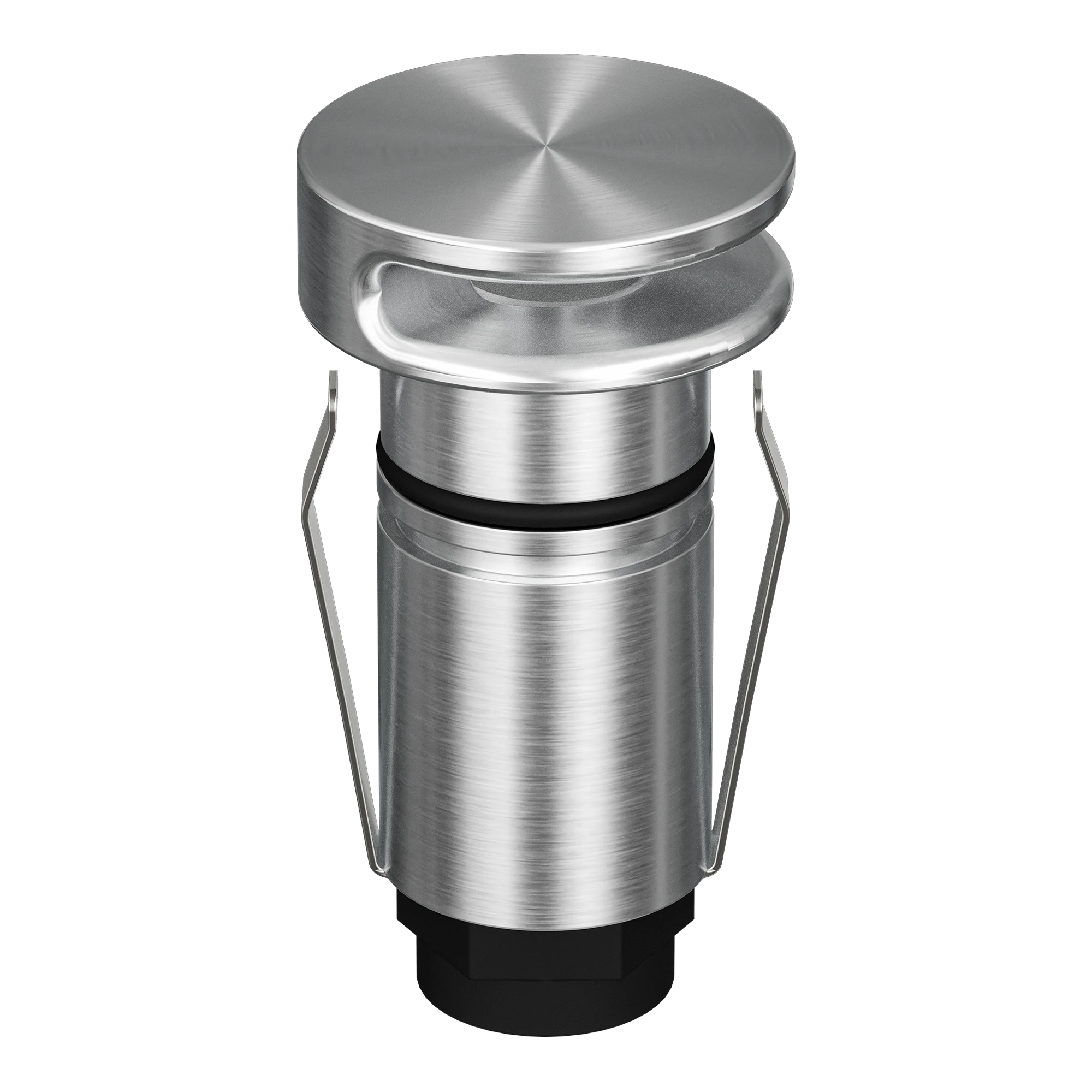

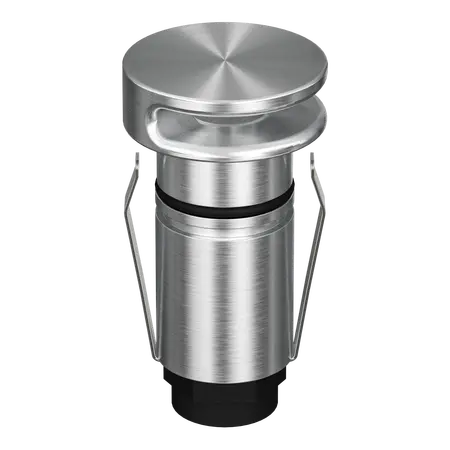

Emit Deck Light 25mm RGBW 12/24V Round Slot 316 Stainless Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, round slot fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25-RGBW-STS, RGBW Inground Light, Micro Recessed Deck Light, LED Step Light
Technical Specifications
- Light Source: 1W CREE LED
- Input Voltage: 24V DC constant voltage
- Light Output: RGBW colour-changing
- Beam Angle: 36° standard; 19° and 60° optional lenses
- Material: 316 stainless steel
- Fascia Style: Round slot
- IP Rating: IP67
- IK Rating: IK10
- Dimming: No; requires RGBW colour controller
- Lifespan: 50,000 hours
- Cutout: 19mm without cannister; 24mm with cannister
- Load Rating: 1,500kg drive-over
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Controller Requirement: RGBW colour controller, such as CHAM-BT-RF-5C
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- Compact 25mm diameter format for discreet deck, step and inground lighting
- RGBW colour-changing output with dedicated white channel
- 316 stainless steel construction for exterior applications
- 36° beam supplied as standard, with optional 19° and 60° lenses
- IP67 water and dust protection
- IK10 impact protection
- Drive-over rated for loads up to 1,500kg
- Optional honeycomb and opal diffuser accessories available
- Requires separate 24V DC LED driver and RGBW controller
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW controller, wire fittings in parallel, and follow the manufacturer's installation instructions.
Applications
- Residential deck and stair lighting
- Landscape and pathway feature lighting
- Architectural accent lighting
- Inground lighting around driveways and walkways
- Outdoor entertainment areas and garden features
Standards & Compliance
- AS/NZS 3820: Essential safety requirements for extra-low-voltage electrical equipment
- IEC 60598-2-13: Requirements for ground-recessed luminaires
- AS/NZS 3000: Wiring Rules for associated electrical installation work
Environmental Benefits
- Low 1W power consumption supports reduced operating energy use
- 50,000-hour LED lifespan can reduce replacement frequency and product waste
- 316 stainless steel is durable and recyclable at end of service life
- Extra-low-voltage 24V DC operation is suitable for lower-voltage outdoor lighting systems
Warranty Information
5-year replacement warranty stated by Domus Lighting for the EMIT-25 RGBW series. Warranty eligibility is subject to licensed-electrician installation, correct installation and proof of purchase.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
