Trade Discount 25%

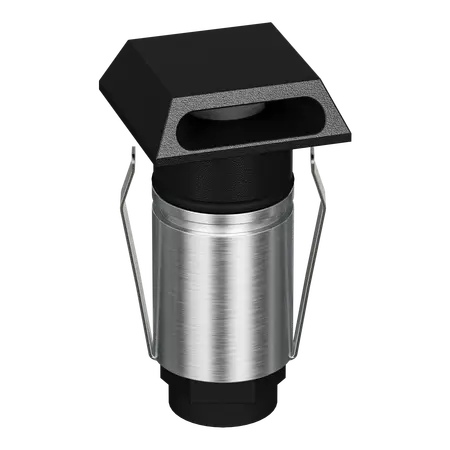

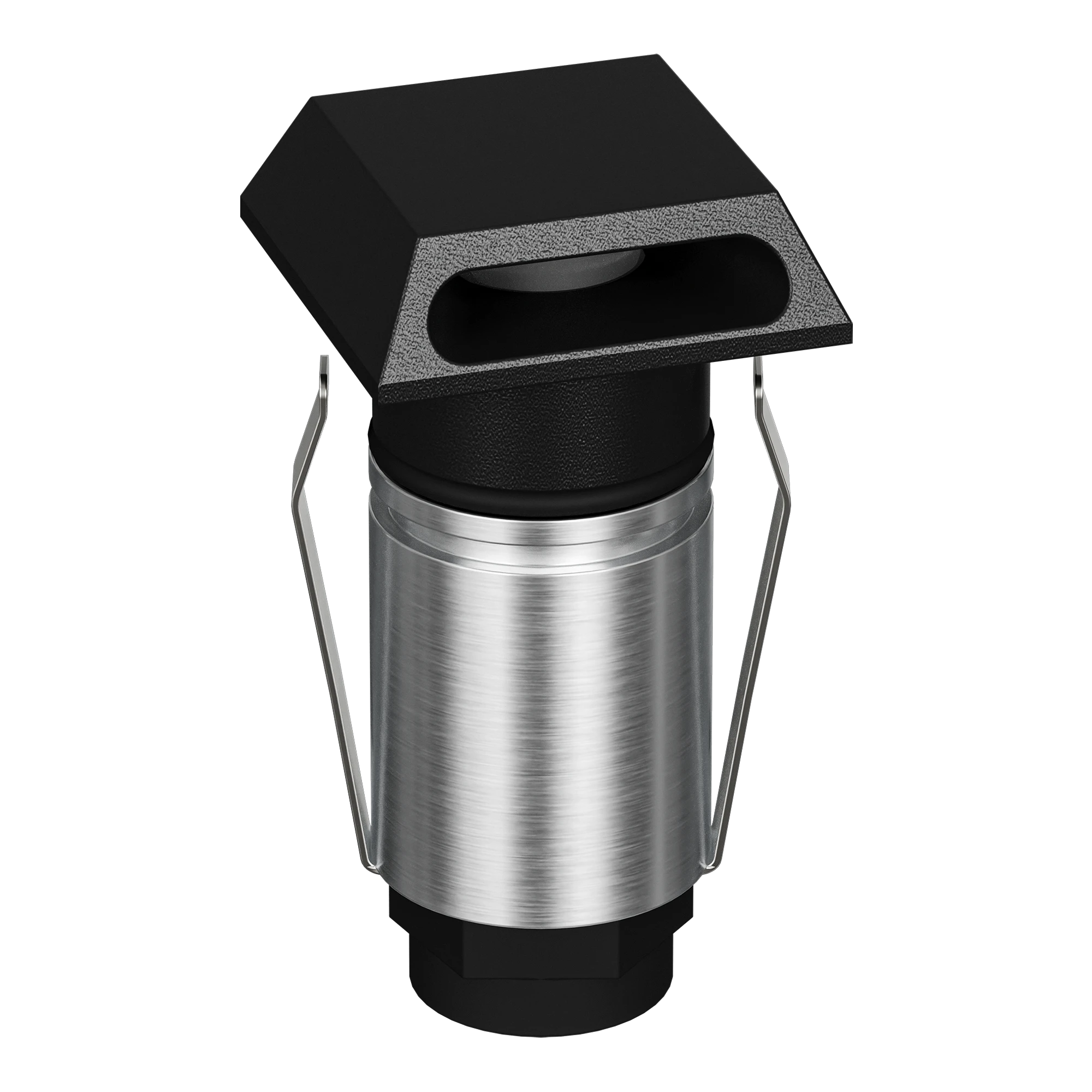

Emit Deck Light 25mm RGBW 12/24V Square Slot Black Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, square slot fascia, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EMIT-25 RGBW Square Slot Inground Light, Domus RGBW Deck Light, 25mm Micro Recessed LED Step Light
Technical Specifications
- Input Voltage: 24V DC constant voltage
- Power: 1W
- LED Type: CREE
- Light Colour: RGBW colour changeable
- Beam Angle: 36° standard; optional 19° and 60° lenses
- IP Rating: IP67
- IK Rating: IK10
- Dimming: No
- Lifespan: 50,000 hours
- Cutout: 19mm without cannister; 24mm with cannister
- Control: Requires separate RGBW colour controller
- Driver Requirement: Requires a separate 24V DC constant-voltage LED driver, wired in parallel
- Body Material: Stainless steel body with black powder-coated trim
- Variant Code: 10041
- Dimensions (H x L x W): 45mm x 25mm x 25mm
- Weight: 0.12 kg
Key Features
- Square slot fascia for discreet recessed deck, step and inground lighting
- RGBW colour-changing output with separate RGBW controller
- Compact 25mm fascia with 45mm installation depth
- IP67-rated construction for suitable outdoor applications
- IK10 impact resistance rating
- 36° beam angle supplied as standard
- Optional narrow and wide beam lenses, honeycomb and opal diffusers available
- Designed for low-voltage 24V DC lighting systems
Professional Installation Requirements
- Installation should be completed by a licensed electrician in accordance with AS/NZS 3000. A compatible 24V DC constant-voltage LED driver and RGBW controller are required separately. Follow the manufacturer's installation instructions, use suitable outdoor-rated cable joints and connect multiple fittings in parallel.
Applications
- Residential and commercial deck lighting
- Recessed step and stair lighting
- Garden paths and landscape features
- Architectural feature lighting
- Outdoor entertaining areas
- Suitable inground applications where the IP67 and IK10 ratings are appropriate
Standards & Compliance
- AS/NZS 60598.1:2025 - Luminaires, Part 1: General requirements and tests
- AS/NZS 3000:2018 - Electrical installations for the associated low-voltage lighting installation
Environmental Benefits
- Low 1W power consumption supports energy-efficient feature lighting
- 50,000-hour LED lifespan can reduce replacement frequency and material waste
- Low-voltage 24V DC operation is suitable for energy-conscious outdoor lighting systems
- Stainless steel construction is durable and recyclable at end of service life
Warranty Information
Backed by a 5-year replacement warranty according to the product datasheet. Warranty claims are subject to Domus Lighting terms, including licensed electrical installation, correct installation, proof of purchase and use within the product's IP rating.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
