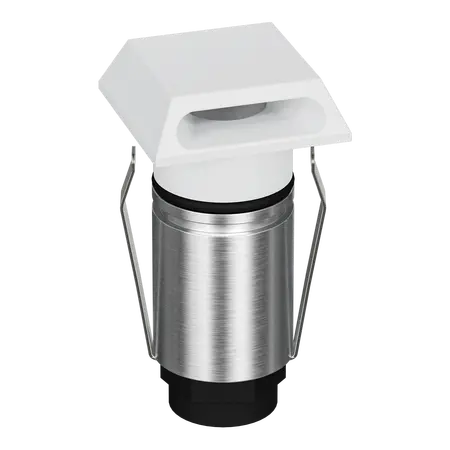

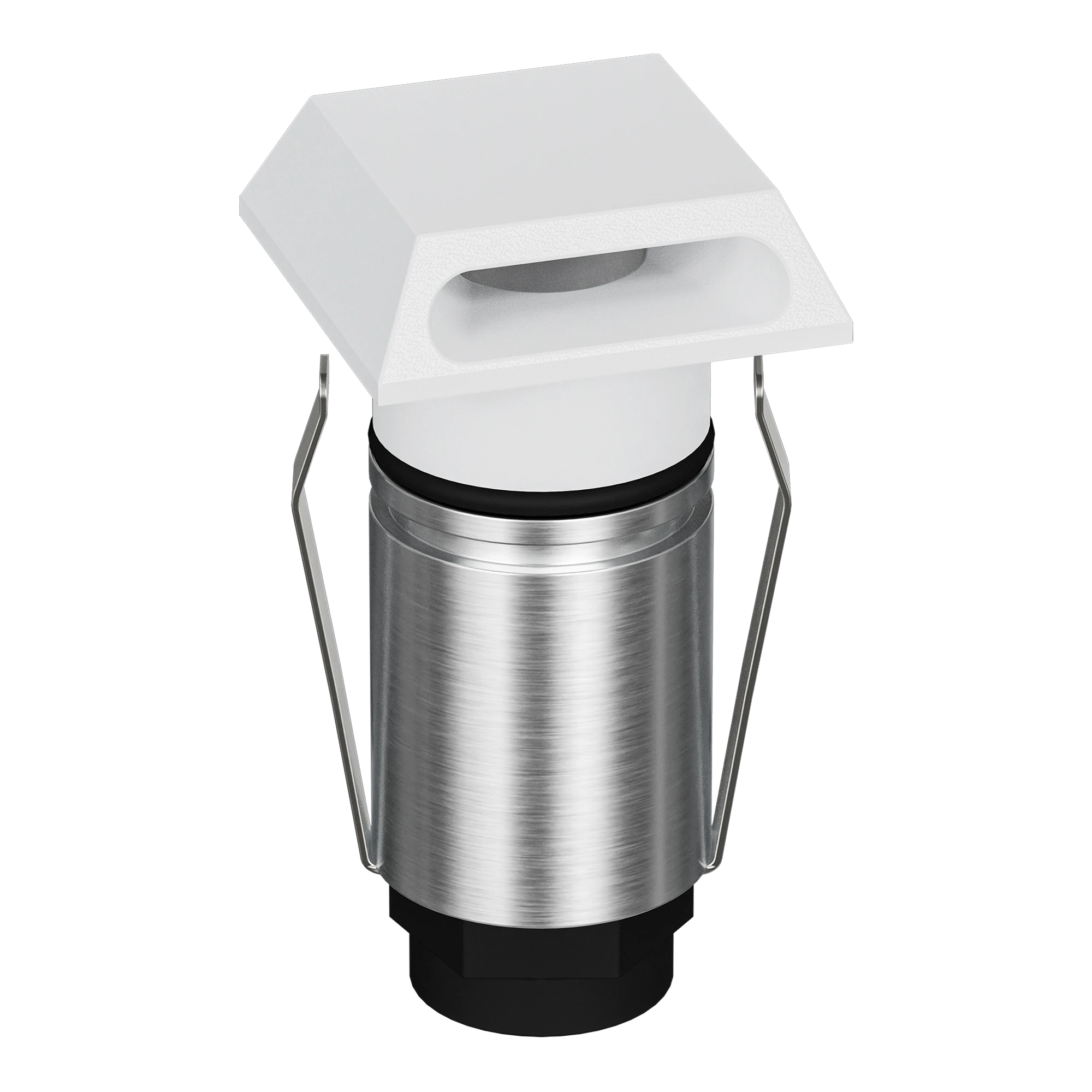

Emit Deck Light 25mm RGBW 12/24V Square Slot White Domus
Domus Emit 25mm LED deck light, RGBW, 36 deg beam, 12/24V DC, square slot fascia, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus EMIT-25-RGBW-WHT, RGBW Inground Light, Mini LED Deck Light, Recessed Landscape Light
Technical Specifications
- Model: EMIT-25-RGBW-SQR-SLOT
- Item Number: 11522
- Light Source: CREE LED
- Power: 1W
- Input Voltage: 24V DC constant voltage
- Colour: RGBW – red, green, blue and white
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimming: No
- LED Lifespan: 50,000 hours
- Cutout: 19mm without canister; 24mm with canister
- Load Rating: 1,500kg drive-over
- Control Requirement: RGBW colour controller
- Driver Requirement: 24V DC constant-voltage LED driver, wired in parallel
- Classification: Class III
- Operating Temperature: -20°C to 40°C
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25mm RGBW LED inground and deck light
- White square slot fascia for directional feature lighting
- Suitable for outdoor landscape, pathway, stair and architectural applications
- IP67-rated construction for protection against dust and temporary water immersion
- IK10 impact resistance and drive-over load rating
- 36° beam angle supplied as standard
- Optional 19° and 60° lenses, honeycomb and opal diffuser accessories available
- Requires separate 24V DC LED driver and RGBW colour controller
- 5-year replacement warranty
Professional Installation Requirements
- Installation should be completed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver and RGBW colour controller, wired in parallel in accordance with the manufacturer's installation instructions and applicable Australian electrical requirements.
Applications
- Residential and commercial deck lighting
- Landscape and garden feature lighting
- Pathway and stair illumination
- Architectural and façade highlighting
- Drive-over inground feature lighting
- Outdoor RGBW accent and colour-changing lighting installations
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires
- AS/NZS 60598.2.2: Applicable requirements for recessed luminaires
- AS/NZS 3000:2018: Electrical installations and extra-low-voltage lighting systems
Environmental Benefits
- LED technology provides efficient, low-power illumination at 1W
- 50,000-hour rated lifespan can reduce replacement frequency and associated waste
- Long-life metal construction supports extended product use
- LED lighting avoids the regular lamp replacement associated with conventional light sources
Warranty Information
5-year replacement warranty, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and installation in accordance with the manufacturer's guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
