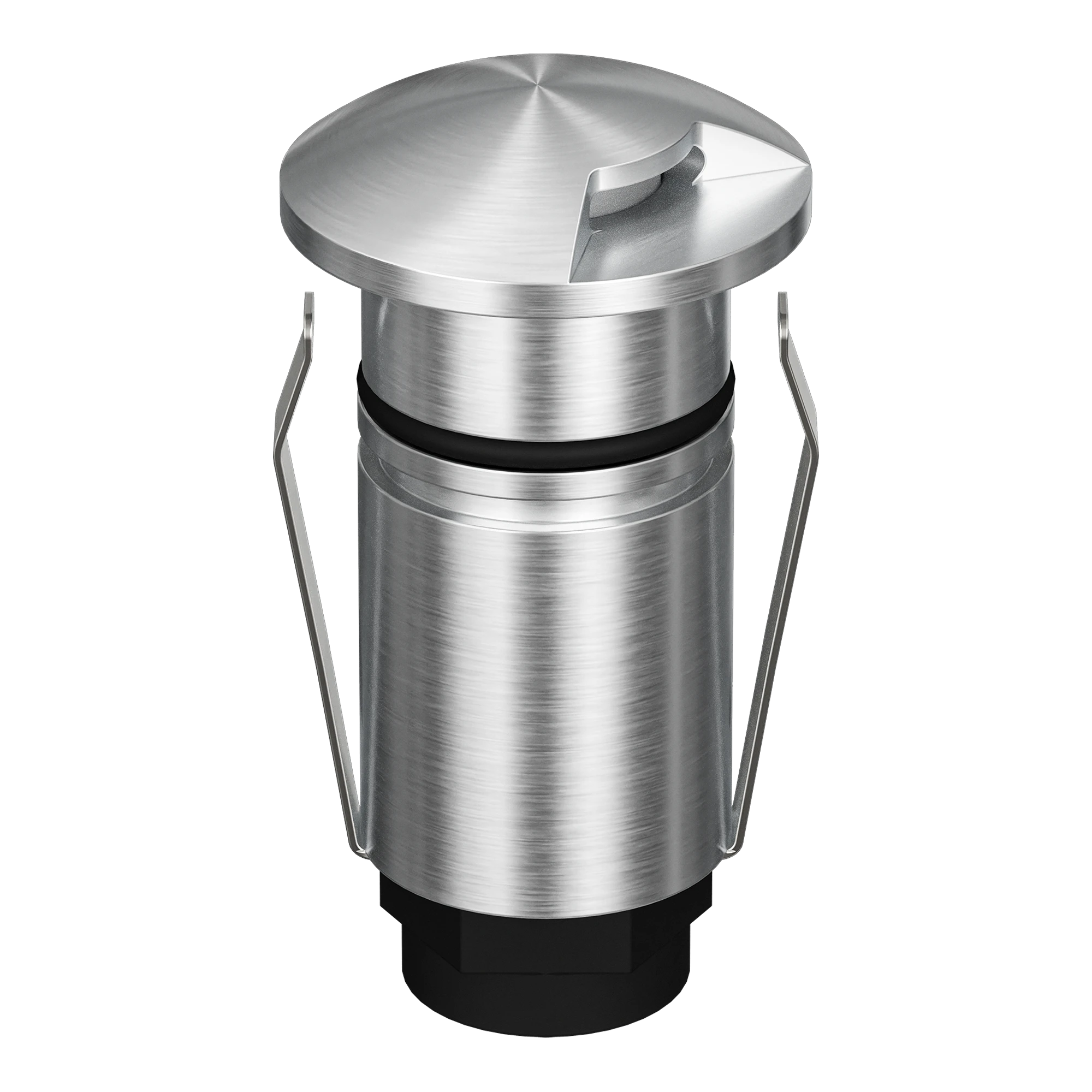

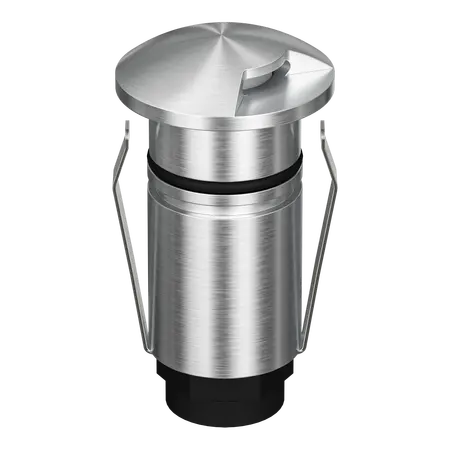

Emit Deck Light 25mm Tri-Colour 12/24V 1-Way 316 Stainless Domus
Domus Emit 25mm LED deck light, 1W, tri-colour, 36 deg beam, 12/24V DC, 1-way fascia, 316 stainless. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Emit-25 Tri-Colour Inground Light, Mini Inground Light, Recessed Deck Light, 1-Way LED Marker Light
Technical Specifications
- Power: 1W
- Input Voltage: 12/24V DC constant voltage
- Light Source: CREE LED
- Colour Temperature: 3000K / 4000K / 5500K selectable
- Lumen Output: 1.3 lm at each colour temperature
- Beam Angle: 36° standard; optional 19° and 60° lenses
- Colour Rendering Index: CRI ≥90
- Ingress Protection: IP67
- Impact Protection: IK10
- Load Rating: 1500 kg drive-over rating
- Dimming: Non-dimmable
- LED Lifespan: 50,000 hours
- Cutout: 19 mm without cannister or 24 mm with cannister
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Material: 316 stainless steel fascia and housing
- Dimensions (H x L x W): 43mm x 25mm x 25mm
- Weight: 0.15 kg
Key Features
- Compact 25 mm diameter design for discreet deck and inground lighting
- 1-way fascia directs light to one side
- Tri-colour selectable output for warm, neutral or cool white lighting
- IP67 protection for outdoor and inground applications
- IK10 impact rating and 1500 kg drive-over load rating
- 36° beam angle supplied as standard
- Optional 19° and 60° lenses, honeycomb and opal diffuser accessories available
- Suitable for landscape, pathway, stair and architectural lighting
- Long-life LED rated at 50,000 hours
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Connect to a compatible 12V or 24V DC constant-voltage LED driver in parallel, following the manufacturer's installation instructions and AS/NZS 3000 requirements.
Applications
- Residential and commercial deck lighting
- Inground feature lighting
- Pathway and stair illumination
- Landscape and garden lighting
- Architectural accent lighting
- Outdoor coastal and high-exposure areas where 316 stainless steel is appropriate
Standards & Compliance
- AS/NZS 3000:2018 Electrical installations, for selection and installation of the luminaire, driver and associated wiring
Environmental Benefits
- Low 1W power consumption supports energy-efficient feature lighting
- 50,000-hour LED lifespan can reduce replacement frequency and material waste
- 316 stainless steel is durable and recyclable at end of service life
- Selectable colour temperature helps avoid over-lighting by allowing the output to be matched to the application
Warranty Information
5-year replacement warranty as stated by Domus Lighting for the EMIT-25 Tri-Colour product. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation instructions; corrosion-related tea staining or surface rust on 316 stainless steel is excluded.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
